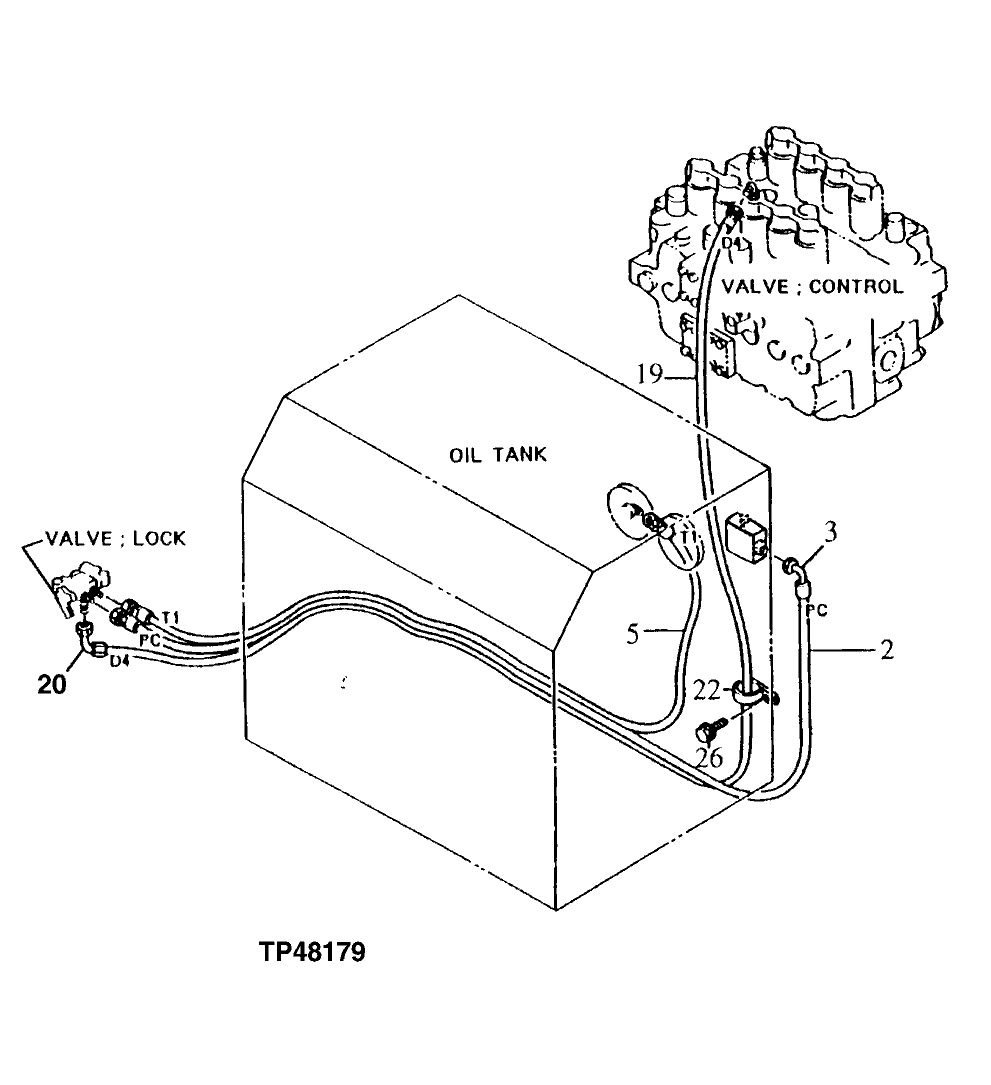

Запчасти John Deere 50LC 285 - LOCK VALVE AND CONTROL VALVE PILOT PIPINGS 3363 Lines, hoses and fittings

2

AT130684

Hydraulic Hose

9/16" X 2520 mm (99-1/4") X 9/16"

1шт.

3

AE24616

Elbow Fitting

1шт.

5

AH132373

Hose

9/16" X 2199 mm (86-1/2") X 9/16"

1шт.

19

AE42067

Hydraulic Hose

9/16" X 3699 mm (145-3/4") X 9/16"

1шт.

20

AE24616

Elbow Fitting

1шт.

22

N198631

Clamp

(SUB FOR TH109598 OR 4190265)

1шт.

26

19M8761

Screw

M10 X 22

1шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

1шт.
