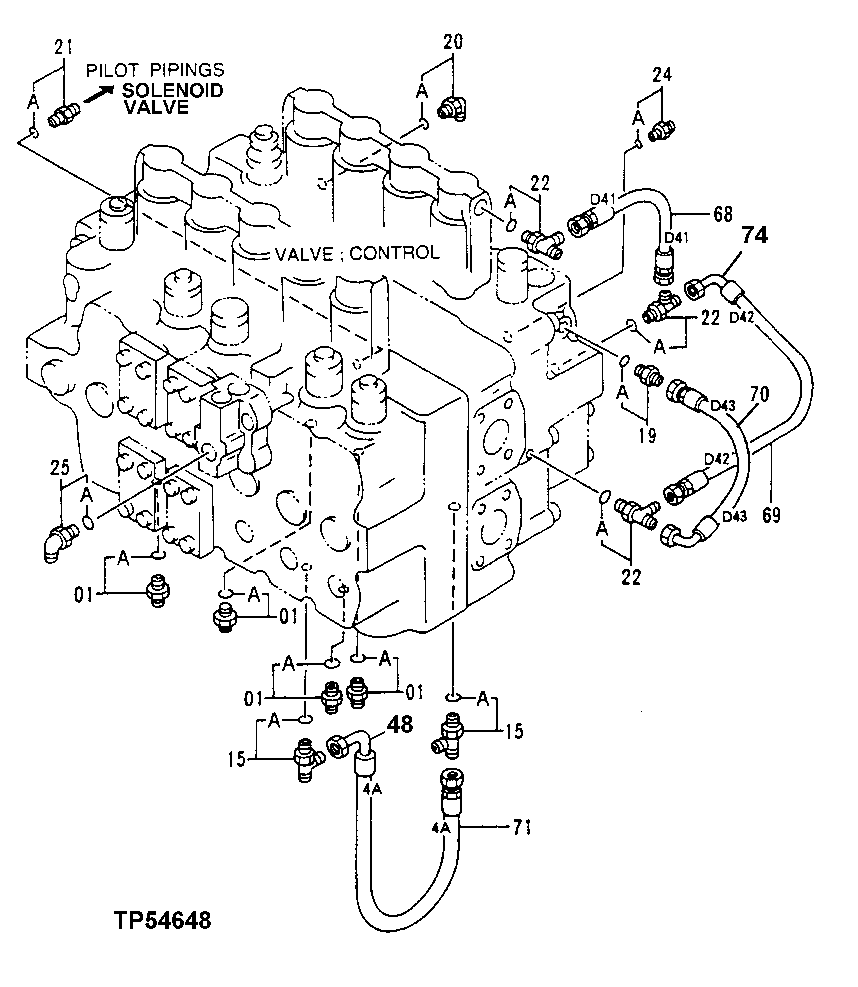

Запчасти John Deere 50LC 280 - Pilot Lines 3363 Lines, hoses and fittings

1

4200466

Adapter Fitting

(SUB FOR TH108320)

4шт.

1A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

15

4205363

Tee Fitting

(SUB FOR AT126362)

2шт.

15A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

19

4200465

Adapter Fitting

(SUB FOR TH108328)

1шт.

19A

M800650

Packing

1шт.

20

4154670

Elbow Fitting

(SUB FOR TH100951)

1шт.

20A

M800650

Packing

1шт.

21

4200465

Adapter Fitting

(SUB FOR TH108328)

1шт.

21A

M800650

Packing

1шт.

22

4203171

Tee Fitting

(SUB FOR TH110578)

3шт.

22A

M800650

Packing

1шт.

24

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

24A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

25

A852333

Elbow Fitting

(SUB FOR TH101047) (SUB FOR 4154671)

1шт.

25A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

48

AE24616

Elbow Fitting

1шт.

68

AR101376

Hydraulic Hose

11.1252" X 355 mm (14") X 11.1252"

1шт.

69

AR50603

Hydraulic Hose

9/16" X 314 mm (12-1/2") X 9/16"

1шт.

70

AT202223

Hydraulic Hose

11.1252" X 250 mm (9-3/4") X 11.1252"

1шт.

71

AT48428

Hydraulic Hose

9/16" X 707 mm (27-3/4") X 9/16"

1шт.

74

AE24616

Elbow Fitting

1шт.
