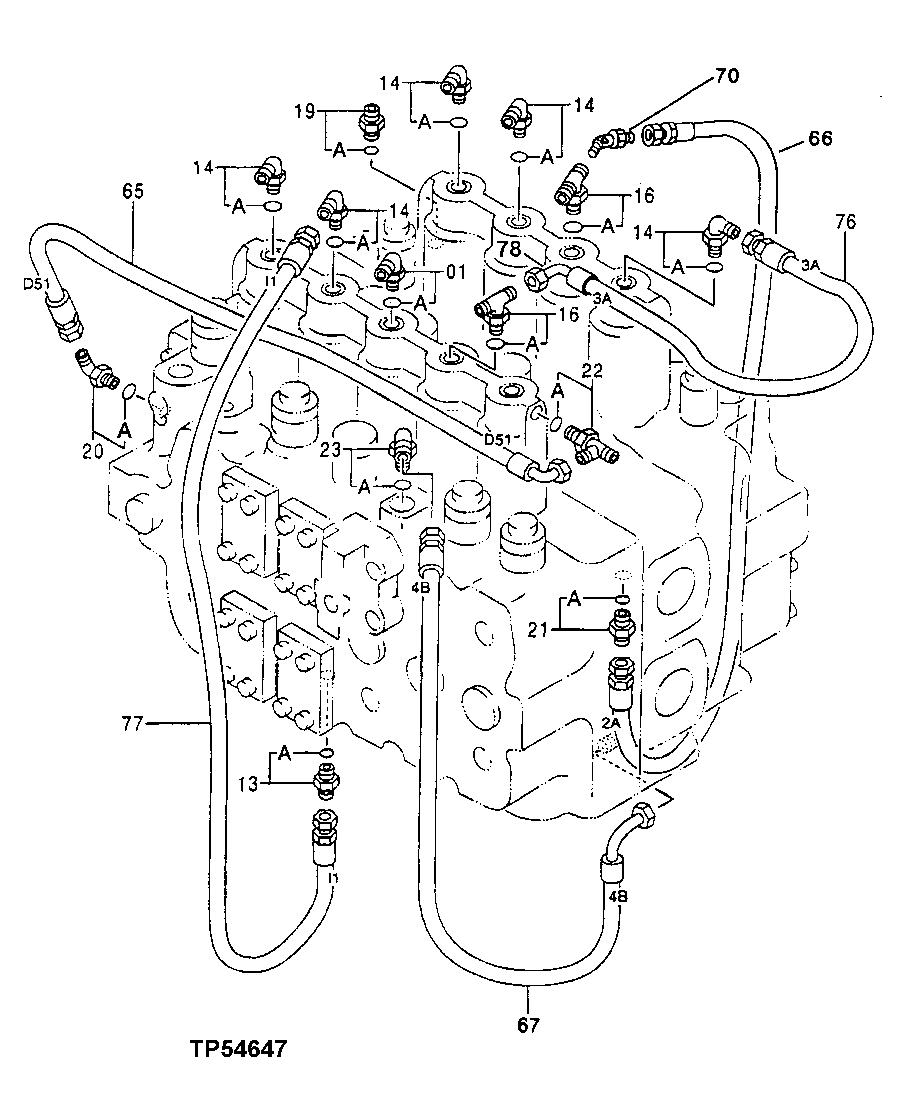

Запчасти John Deere 50LC 279 - Pilot Lines 3363 Lines, hoses and fittings

1

4200470

Elbow Fitting

(SUB FOR AT131737)

1шт.

1A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

13

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

13A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

14

A852333

Elbow Fitting

(SUB FOR TH101047) (SUB FOR 4154671)

5шт.

14A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

16

4208911

Tee Fitting

(SUB FOR AT126456)

2шт.

16A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

19

4200465

Adapter Fitting

(SUB FOR TH108328)

1шт.

19A

M800650

Packing

1шт.

20

4154670

Elbow Fitting

(SUB FOR TH100951)

1шт.

20A

M800650

Packing

1шт.

21

4200467

Adapter Fitting

(SUB FOR TH108417)

1шт.

21A

M800650

Packing

1шт.

22

4203171

Tee Fitting

(SUB FOR TH110578)

1шт.

22A

M800650

Packing

1шт.

23

AT318014

Elbow Fitting

(SUB FOR 4156434) (SUB FOR TH101930)

1шт.

23A

M800650

Packing

1шт.

65

T111283

Hydraulic Hose

11.1252" X 650 mm (25-1/2") X 11.1252"

1шт.

66

AT48434

Hydraulic Hose

9/16" X 1066 mm (42") X 9/16"

1шт.

67

AT111979

Hydraulic Hose

9/16" X 1270 mm (50") X 9/16"

1шт.

70

AU43156

Elbow Fitting

1шт.

76

T111675

Hydraulic Hose

9/16" X 430 mm (17") X 9/16"

1шт.

77

AT48434

Hydraulic Hose

9/16" X 1066 mm (42") X 9/16"

1шт.

78

AE24616

Elbow Fitting

1шт.
