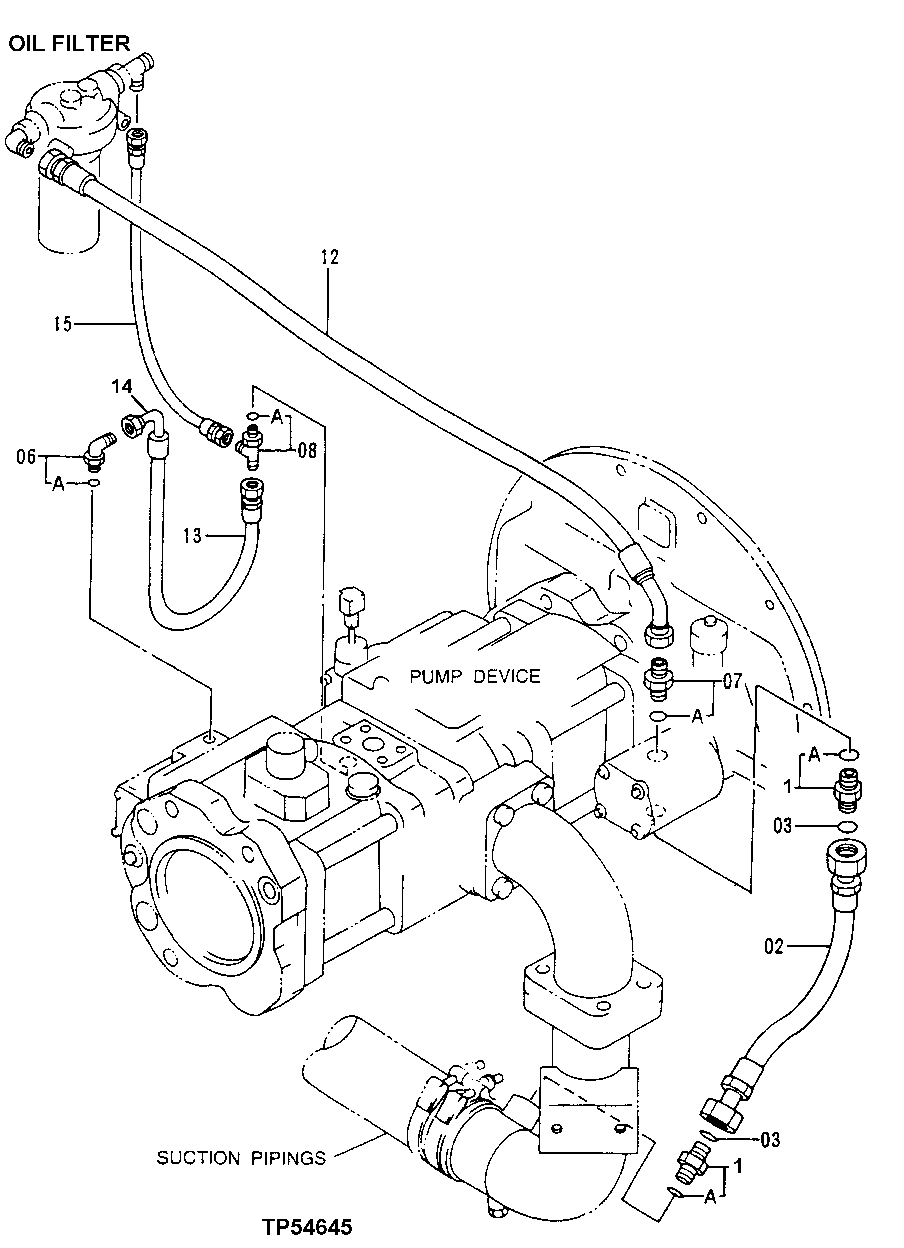

Запчасти John Deere 50LC 278 - Pilot Lines (Hydraulic Tank To Filter and Pump) 3363 Lines, hoses and fittings

1

A853166

Adapter Fitting

(SUB FOR AT107392 OR 4189619)

2шт.

1A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

2

4390433

Hydraulic Hose

(SUB FOR AT217145)

1шт.

3

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

2шт.

6

4154670

Elbow Fitting

(SUB FOR TH100951)

1шт.

6A

M800650

Packing

1шт.

7

X8-10F5OX

Adapter Fitting

(SUB FOR TH101006)

1шт.

7A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

8

4203171

Tee Fitting

(SUB FOR TH110578)

1шт.

8A

M800650

Packing

1шт.

12

AT202206

Hydraulic Hose

3/4" X 1000 mm (39-1/4") X 3/4"

1шт.

13

AT48428

Hydraulic Hose

9/16" X 707 mm (27-3/4") X 9/16"

1шт.

14

AE24616

Elbow Fitting

1шт.

15

4343795

Hydraulic Hose

(SUB FOR AT202352)

1шт.
