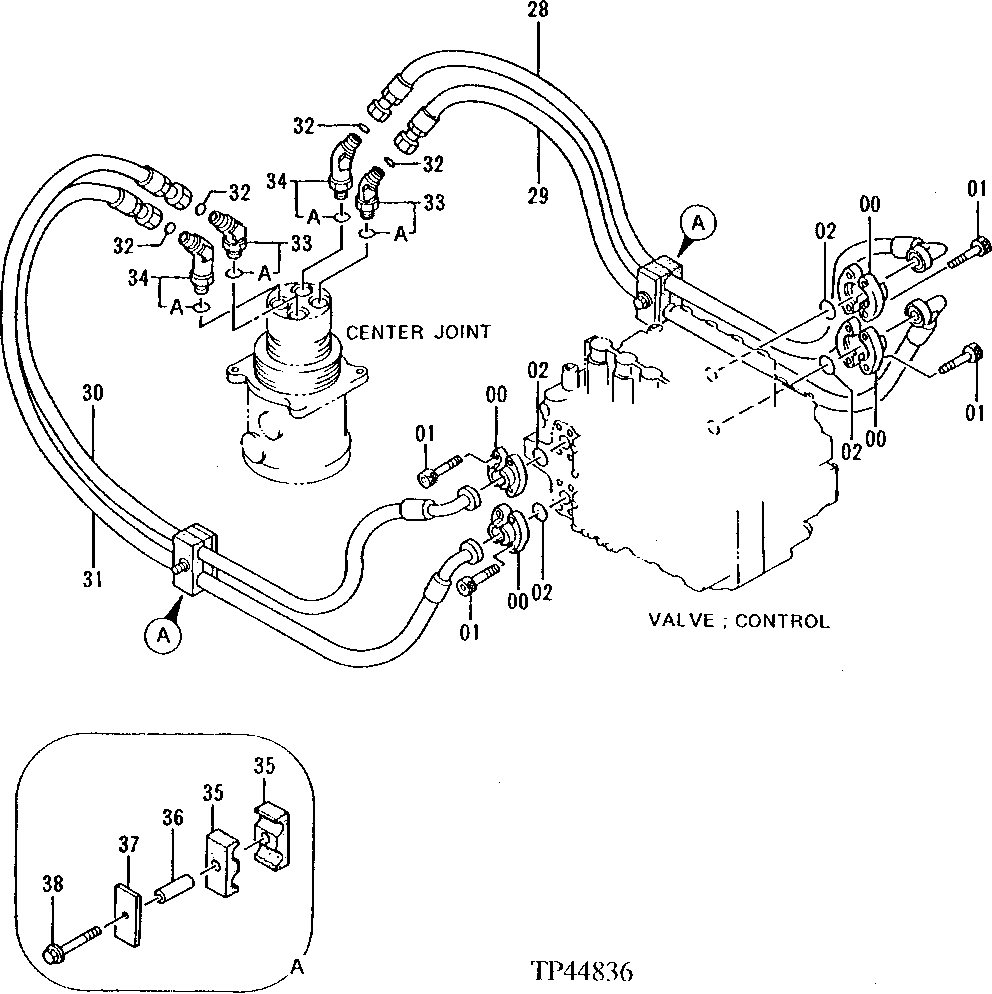

Запчасти John Deere 50LC 277 - Pilot Lines From Control Valve To Reservoir and Center Joint 3363 Lines, hoses and fittings

0

AT131685

Flange Fitting

8шт.

1

19M8734

Screw

M14 X 45

16шт.

2

T72216

O-Ring

37.694 X 3.531 mm (1-31/64" X 0.139")

4шт.

28

4371307

Hydraulic Hose

( AT178143 NLA)

1шт.

29

AT168744

Hydraulic Hose

1шт.

30

4371308

Hydraulic Hose

( AT178144 NLA)

1шт.

31

AT168743

Hydraulic Hose

1-1/4" X 1450 mm (57") X 36.5252"

1шт.

32

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

4шт.

33

4270315

Elbow Fitting

(SUB FOR AT201732)

2шт.

33A

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.

34

4274593

Elbow Fitting

(SUB FOR AT201740)

2шт.

34A

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.

35

4205615

Hose Clamp

(SUB FOR AT131792)

4шт.

36

4205614

Spacer

14.300 X 21.700 X 55 mm (9/16" X 0 .854" X 2.165") (SUB FOR AT131791)

2шт.

37

4711050

Plate

(SUB FOR AT131918, 4224002)

2шт.

38

19M8122

Cap Screw

M12 X 85

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.
