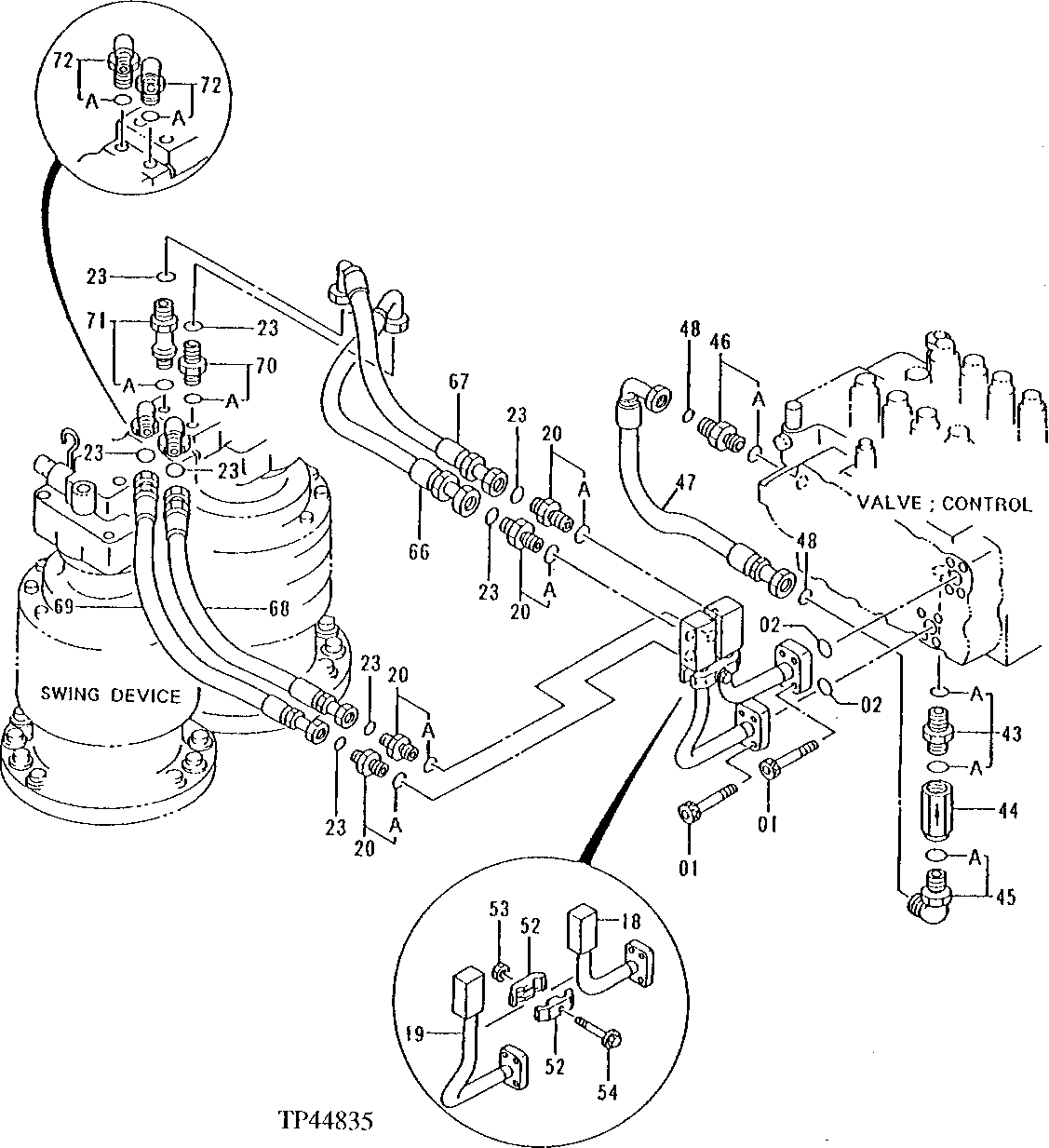

Запчасти John Deere 50LC 276 - Main Lines (Control Valve To Swing Motor) 3363 Lines, hoses and fittings

1

19M8734

Screw

M14 X 45

8шт.

2

T72216

O-Ring

37.694 X 3.531 mm (1-31/64" X 0.139")

2шт.

18

8038955

Line

(SUB FOR AT132066)

1шт.

19

8055536

Oil Line

(SUB FOR AT201895)

1шт.

20

A853166

Adapter Fitting

(SUB FOR AT107392 OR 4189619)

4шт.

20A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

23

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

8шт.

43

4224932

Adapter Fitting

(SUB FOR AT202098)

1шт.

43A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

2шт.

44

4308741

Check Valve

(SUB FOR AT201760)

1шт.

45

4157562

Elbow Fitting

(SUB FOR TH109540)

1шт.

45A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

46

A853166

Adapter Fitting

(SUB FOR AT107392 OR 4189619)

1шт.

46A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

47

AT168740

Hydraulic Hose

1шт.

48

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

2шт.

52

4053599

Clamp

(SUB FOR TH101980)

2шт.

53

14M7275

Nut

M12

1шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

1шт.

54

19M7753

Cap Screw

M12 X 70

1шт.

12H301

Lock Washer

1/2"

1шт.

66

4247592

Hydraulic Hose

(SUB FOR AT202180)

1шт.

67

4247593

Hydraulic Hose

(SUB FOR AT202302)

1шт.

68

4188625

Fitting

(SUB FOR TH108962)

1шт.

69

4197700

Hydraulic Hose

(SUB FOR AT202299)

1шт.

70

A853166

Adapter Fitting

(SUB FOR AT107392 OR 4189619)

1шт.

70A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

71

4189539

Adapter Fitting

(SUB FOR AT107393)

1шт.

71A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

72

4157562

Elbow Fitting

(SUB FOR TH109540)

2шт.

72A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.
