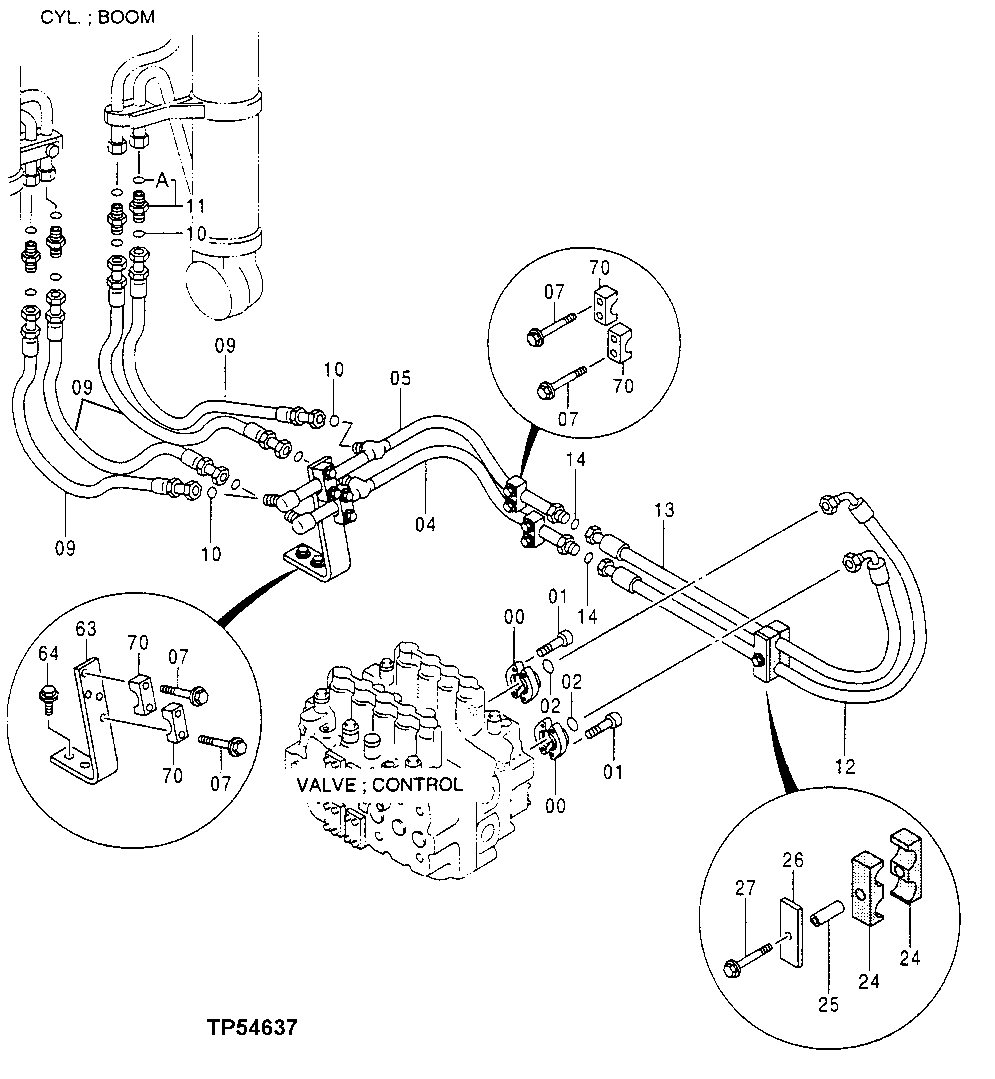

Запчасти John Deere 50LC 274 - Control Valve Lines 3363 Lines, hoses and fittings

0

AT131685

Flange Fitting

4шт.

1

19M8734

Screw

M14 X 45

8шт.

2

T72216

O-Ring

37.694 X 3.531 mm (1-31/64" X 0.139")

2шт.

4

8066121

Oil Line

(SUB FOR AT178136)

1шт.

5

8066122

Oil Line

(SUB FOR AT178137)

1шт.

7

19M8088

Cap Screw

M12 X 75

8шт.

12H301

Lock Washer

1/2"

8шт.

9

AT168737

Hydraulic Hose

4шт.

10

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

8шт.

11

4189535

Adapter Fitting

(SUB FOR AT114853)

4шт.

11A

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.

12

4383790

Hydraulic Hose

(SUB FOR AT179131)

1шт.

13

4369871

Hydraulic Hose

1-1/4" X 1450 mm (57") X 4 2.8752" (SUB FOR AT178145)

1шт.

14

T78612

O-Ring

(SUB FOR AT250019)

2шт.

24

4215878

Hose Clamp

(SUB FOR AT178139)

2шт.

25

4215879

Spacer

(SUB FOR AT178140)

1шт.

26

4215880

Plate

(SUB FOR AT178142)

1шт.

27

19M7943

Cap Screw

M12 X 90

1шт.

63

3078970

Bracket

(SUB FOR AT216974)

1шт.

64

19M7493

Cap Screw

M12 X 40

2шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

2шт.

12H301

Lock Washer

1/2"

2шт.

70

AT201796

Clamp

4шт.
