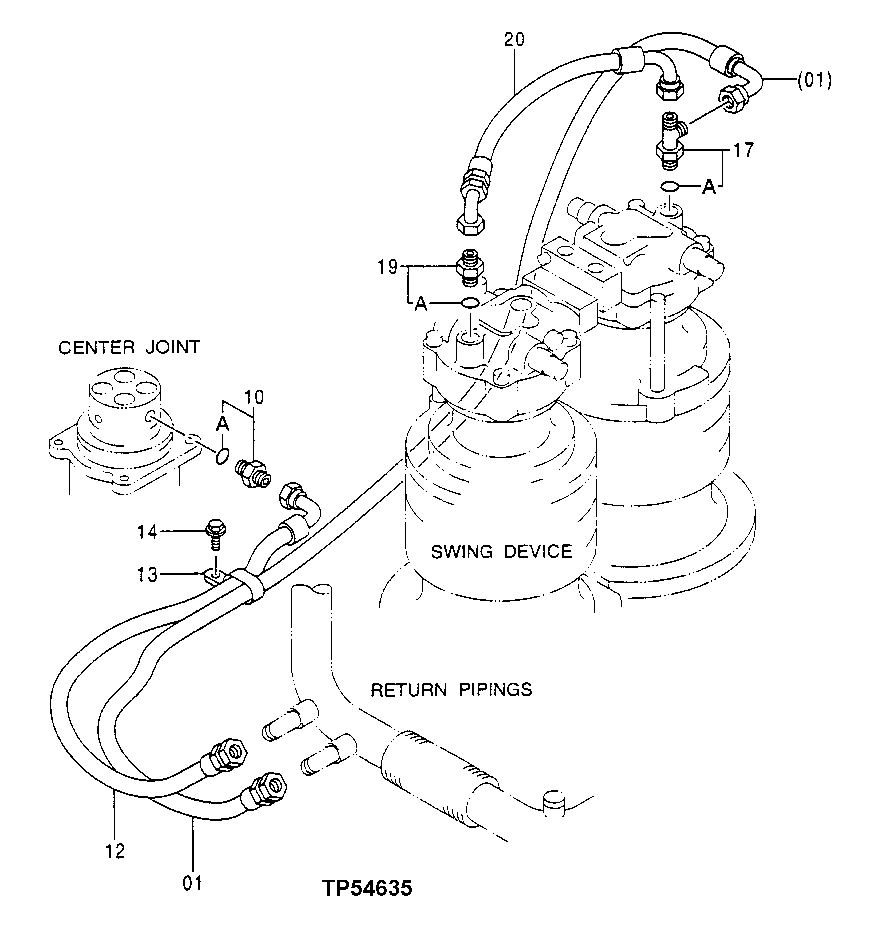

Запчасти John Deere 50LC 273 - Return Lines 3363 Lines, hoses and fittings

1

4382645

Hydraulic Hose

(SUB FOR AT216995)

1шт.

10

X8-10F5OX

Adapter Fitting

(SUB FOR TH101006)

1шт.

10A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

12

4313162

Hydraulic Hose

(SUB FOR AT216975)

1шт.

13

AT121321

Hose Clamp

1шт.

14

19M8761

Screw

M10 X 22

1шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

1шт.

17

4217343

Tee Fitting

(SUB FOR AT131873)

1шт.

17A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

19

X8-10F5OX

Adapter Fitting

(SUB FOR TH101006)

1шт.

19A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

20

4343216

Hydraulic Hose

(SUB FOR AT202346)

1шт.
