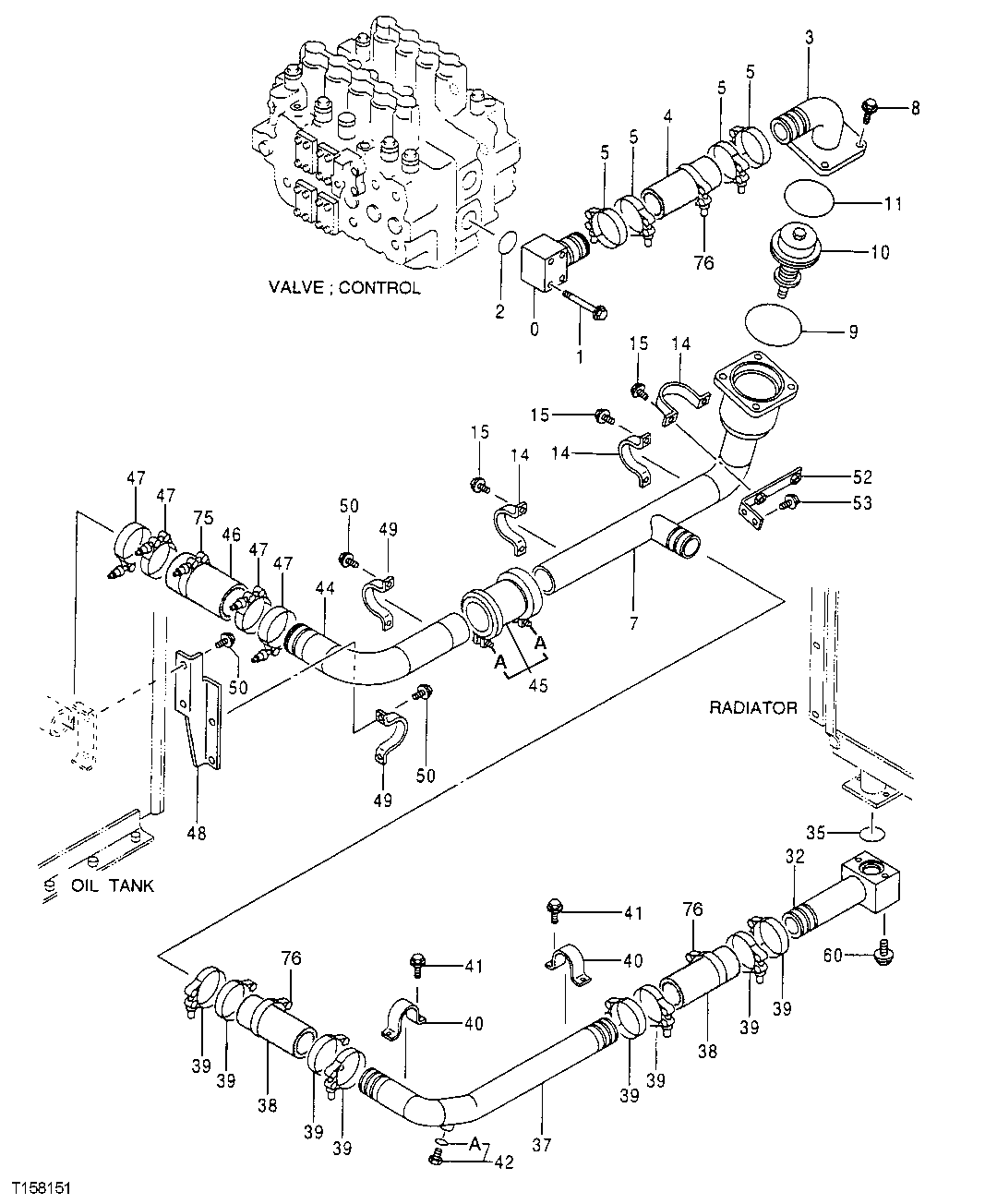

Запчасти John Deere 50LC 270 - Return Lines (Control Valve) 3363 Lines, hoses and fittings

0

9746657

Oil Line

SUB FOR AT178131

1шт.

1

19M7949

Cap Screw

M12 X 100

4шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

4шт.

2

TH105683

O-Ring

59.400 X 3.100 mm (2.339" X 0.122")

1шт.

3

8066118

Oil Line

SUB FOR AT178132

1шт.

4

4094001

Hose

SUB FOR TH103728

1шт.

5

AT39141

Hose Clamp

4шт.

7

7031690

Oil Line

SUB FOR AT178133

1шт.

8

19M7493

Cap Screw

M12 X 40

4шт.

12H301

Lock Washer

1/2"

4шт.

9

TH104589

O-Ring

144.400 X 3.100 mm (5.685" X 0.122")

1шт.

10

4433091

Flow Control Hyd. Valve

SUB FOR AT202100

1шт.

11

AT264342

O-Ring

SUB FOR TH100125

1шт.

14

4000909

Clamp

SUB FOR TH101935

3шт.

15

19M7662

Cap Screw

M10 X 30

6шт.

12M7066

Lock Washer

10 mm

6шт.

32

8059327

Tube

SUB FOR AT201913

1шт.

35

TH105683

O-Ring

59.400 X 3.100 mm (2.339" X 0.122")

1шт.

37

8068250

Tube

SUB FOR AT217031

1шт.

38

4094001

Hose

SUB FOR TH103728

2шт.

39

AT39141

Hose Clamp

8шт.

40

4053865

Clamp

SUB FOR TH103646

2шт.

41

19M7662

Cap Screw

M10 X 30

4шт.

12M7066

Lock Washer

10 mm

4шт.

42

4093624

Drain Plug

SUB FOR AT318013; SUB FOR TH102536

1шт.

42A

M800650

Packing

1шт.

44

8067347

Line

SUB FOR AT217163

1шт.

45

4071215

Coupling

SUB FOR FXV00000007 AND TH101898

1шт.

45A

Seal

SUB TO FXV00000007, 41 96267 AND TH106969 NLA

2шт.

46

4167091

Hose

SUB FOR TH101901

1шт.

47

AT50923

Hose Clamp

SUB FOR AT160583

4шт.

48

8050152

Bracket

SUB FOR AT201886

1шт.

49

4000909

Clamp

SUB FOR TH101935

2шт.

50

19M7662

Cap Screw

M10 X 30

6шт.

12M7066

Lock Washer

10 mm

6шт.

52

9747015

Bracket

SUB FOR AT178135

1шт.

53

19M8011

Cap Screw

M12 X 30

2шт.

12H301

Lock Washer

1/2"

2шт.

24M7047

Washer

13 X 24 X 2.500 mm

2шт.

60

19M7361

Cap Screw

M12 X 50

2шт.

12H301

Lock Washer

1/2"

2шт.

75

TY22488

Hose Clamp

SUB FOR 4503469; SUB FOR AH104837

1шт.

76

TY22472

Clamp

SUB FOR 4504491; SUB FOR AT145651

3шт.
