261 - Electric Foot Switch For Auxiliary Control (One Solenoid)

Запчасти John Deere 50LC 261 - Electric Foot Switch For Auxiliary Control (One Solenoid) 3360 Hydraulic System

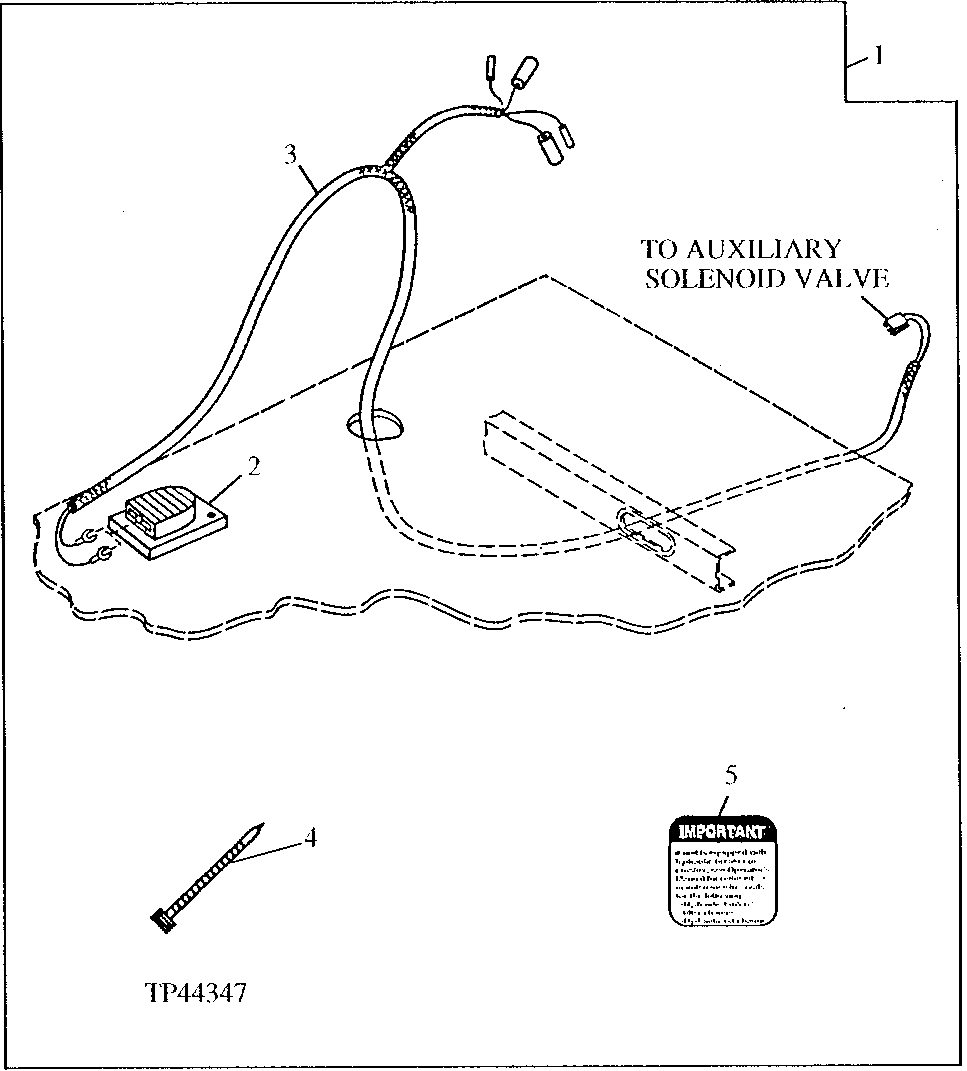

Схема запчастей John Deere 50LC - 261 - Electric Foot Switch For Auxiliary Control (One Solenoid) 3360 Hydraulic System
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Switch

(WHOLE GOODS) (ELECTRIC FOOT SWITCH FOR AUXILIARY VALVE) (USE W/ AT195713 ONE WAY ELECTRIC SOLENOID VALVE) ( AT164896 NLA)

1шт.

2

AT82210

Switch

Electric Foot Control

1шт.

3

AT161183

Wiring Harness

1шт.

4

R44302

Tie Band

Use As Required

2шт.

5

T149434

Label

Important - Auxiliary Electric Control

1шт.

Выбрано товаров: 5
