Запчасти John Deere 50LC 258 - Lubricate Lines (Standard Arm) 3360 Hydraulic System

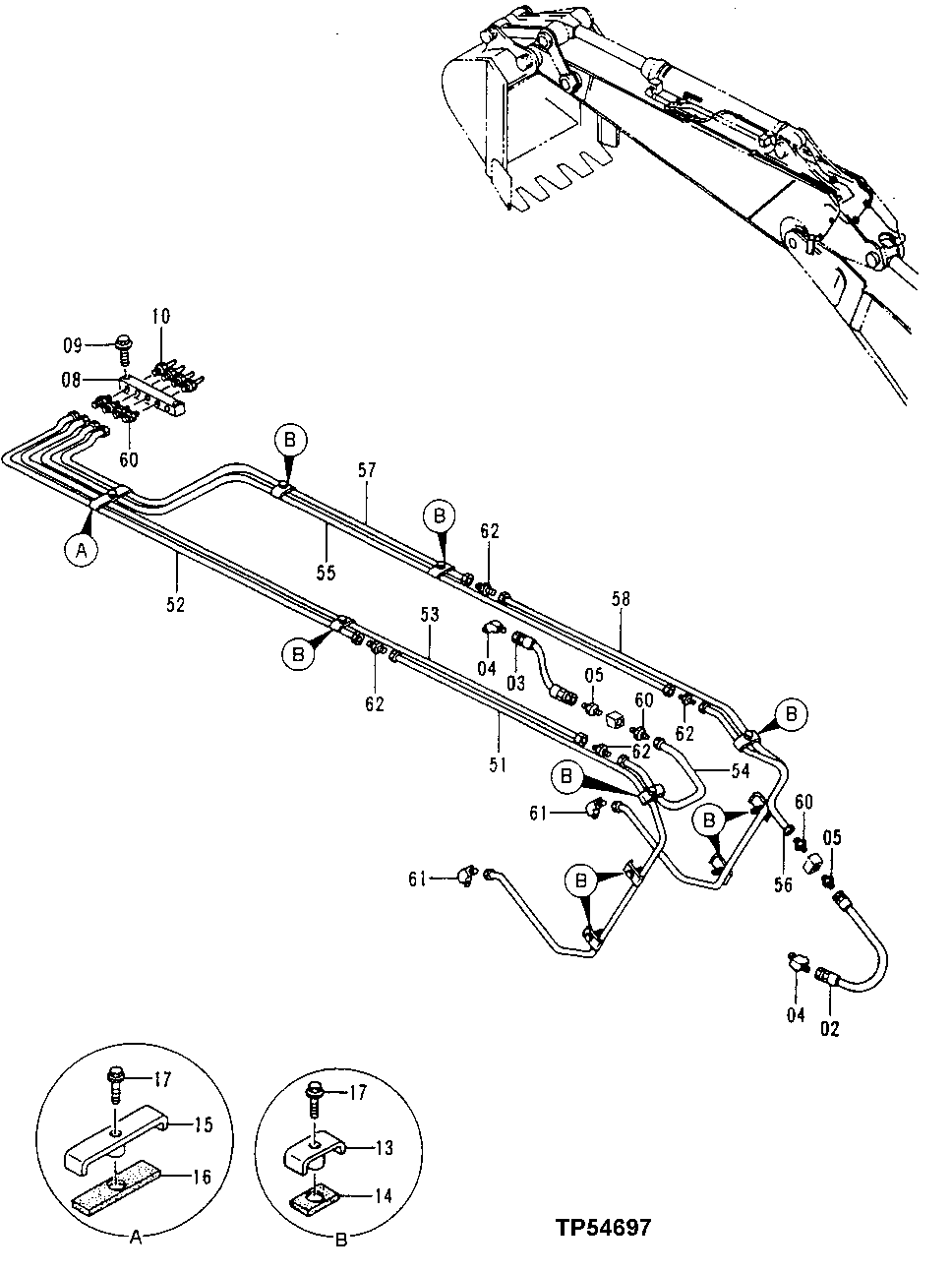

Схема запчастей John Deere 50LC - 258 - Lubricate Lines (Standard Arm) 3360 Hydraulic System

Артикул

Название

Примечание

Количество

2

AT202092

Hydraulic Hose

1шт.

3

TH102493

Hydraulic Hose

1шт.

4

94-1501

Elbow Fitting

(SUB FOR AT121757)

2шт.

5

X4F3P4S

Adapter Fitting

(SUB FOR TH100362 OR 94-1301)

2шт.

8

4274903

Junction Block

(SUB FOR AT202119)

1шт.

9

19M7358

Cap Screw

M10 X 40

2шт.

12M7066

Lock Washer

10 mm

2шт.

10

JD7769

Lubrication Fitting

4шт.

13

9736422

Clamp

(SUB FOR AT202175)

9шт.

14

AT318012

Isolator

(SUB FOR 4269657) (SUB FOR AT130970)

9шт.

15

9736421

Clamp

(SUB FOR AT202174)

1шт.

16

AT318020

Strap

(SUB FOR 4273721, AT131668)

1шт.

17

19M7662

Cap Screw

M10 X 30

10шт.

12M7066

Lock Washer

10 mm

10шт.

51

3055976

Oil Tube

(SUB FOR AT217073)

1шт.

52

4274888

Line

(SUB FOR AT201741)

1шт.

53

4276568

Line

(SUB FOR AT201743)

1шт.

54

4276569

Oil Tube

(SUB FOR AT217087)

1шт.

55

4335902

Line

(SUB FOR AT201807)

1шт.

56

4335903

Oil Tube

(SUB FOR AT217094)

1шт.

57

4274890

Line

(SUB FOR AT201742)

1шт.

58

3055978

Oil Tube

(SUB FOR AT217074)

1шт.

60

4130169

Fitting

(SUB FOR TH101391)

6шт.

61

4130175

Fitting

(SUB FOR TH101392)

2шт.

62

Z32962

Fitting

4шт.

Выбрано товаров: 25
