Запчасти John Deere 50LC 257 - Lubricate Lines (Short Arm) 3360 Hydraulic System

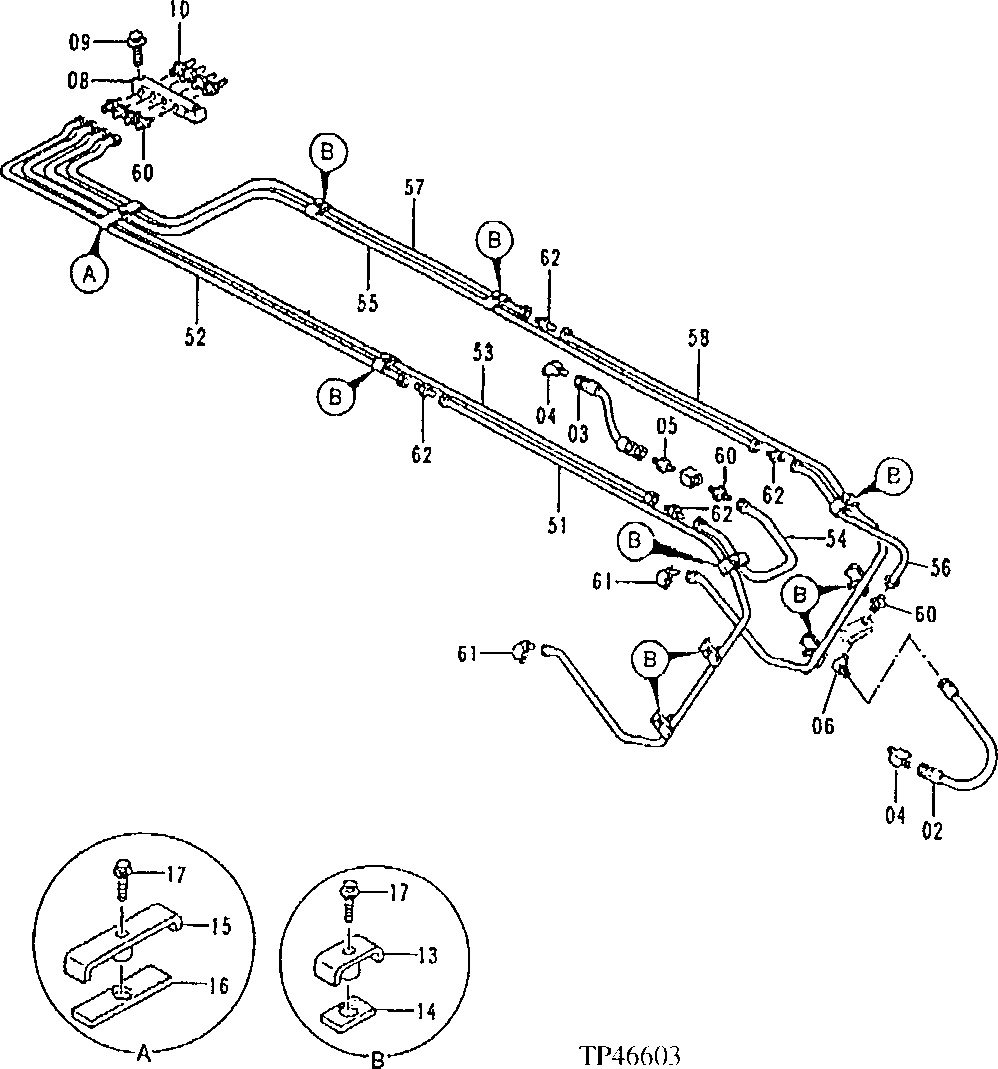

Схема запчастей John Deere 50LC - 257 - Lubricate Lines (Short Arm) 3360 Hydraulic System

Артикул

Название

Примечание

Количество

2

AT202092

Hydraulic Hose

1/4" X 750 mm (29-1/2") X 1/4"

1шт.

3

4098898

Hydraulic Hose

(SUB FOR AT130961)

1шт.

4

94-1501

Elbow Fitting

(SUB FOR AT121757)

2шт.

5

X4F3P4S

Adapter Fitting

(SUB FOR TH100362 OR 94-1301)

2шт.

6

94-1401

Elbow Fitting

(SUB FOR TH101387)

1шт.

8

4274903

Junction Block

(SUB FOR AT202119)

1шт.

9

19M7358

Cap Screw

M10 X 40

2шт.

12M7066

Lock Washer

10 mm

2шт.

10

JD7769

Lubrication Fitting

(SUB FOR TH100364)

4шт.

13

9736422

Clamp

(SUB FOR AT202175)

9шт.

14

AT318012

Isolator

(SUB FOR 4269657) (SUB FOR AT130970)

9шт.

15

9736421

Clamp

(SUB FOR AT202174)

1шт.

16

AT318020

Strap

(SUB FOR 4273721, AT131668)

1шт.

17

19M7662

Cap Screw

M10 X 30

10шт.

12M7066

Lock Washer

10 mm

10шт.

51

3067508

Line

(SUB FOR AT201704)

1шт.

52

4274888

Line

(SUB FOR AT201741)

1шт.

53

4327244

Line

(SUB FOR AT201772)

1шт.

54

4327245

Line

(SUB FOR AT201773)

1шт.

55

4327246

Line

(SUB FOR AT201774)

1шт.

56

4327247

Oil Line

(SUB FOR AT201775)

1шт.

57

4274890

Line

(SUB FOR AT201742)

1шт.

58

3067509

Line

(SUB FOR AT201705)

1шт.

60

4130169

Fitting

(SUB FOR TH101391)

6шт.

61

4130175

Fitting

(SUB FOR TH101392)

2шт.

62

Z32962

Fitting

4шт.

Выбрано товаров: 26
