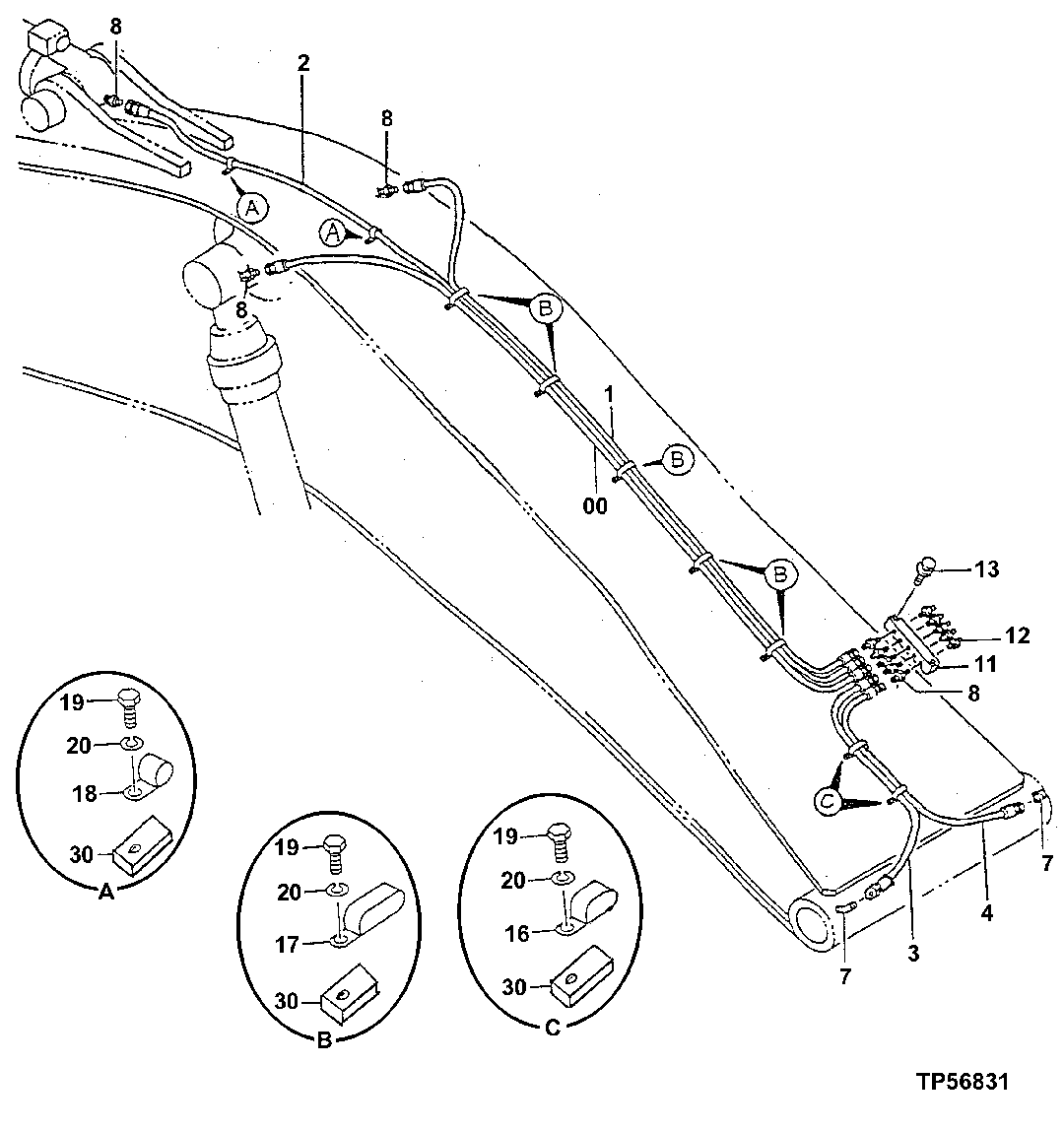

Запчасти John Deere 50LC 256 - Lubricate Lines (Boom) ( - 000387) 3360 Hydraulic System

0

AT213802

Hydraulic Hose

Fabricate

1шт.

1

4297236

Hydraulic Hose

(SUB FOR AT187304) Fabricate

1шт.

2

AT154755

Hydraulic Hose

Fabricate

1шт.

3

AH96002

Hydraulic Hose

(ALSO ORDER AH79175) (SUB FOR 4428306, AT187305) Fabricate

1шт.

4

4428307

Hydraulic Hose

(SUB FOR AT187306) Fabricate

1шт.

7

4154656

Elbow Fitting

(SUB FOR TH101588)

2шт.

8

X4-4FTX-S

Adapter Fitting

(SUB FOR X0103-4-4) (SUB FOR TH100963)

8шт.

11

4274903

Junction Block

(SUB FOR AT202119)

1шт.

12

JD7769

Lubrication Fitting

2шт.

13

19M7358

Cap Screw

M10 X 40

2шт.

16

4192018

Clip

(SUB FOR TH110498)

2шт.

17

T152608

Clamp

5шт.

18

4190261

Clip

(SUB FOR TH109649)

2шт.

19

19M8324

Cap Screw

M10 X 16

9шт.

20

12M7066

Lock Washer

10 mm

9шт.

30

4195689

Strap

(SUB FOR AT114980)

9шт.
