Запчасти John Deere 50LC 253 - Pilot Lines (Left Pilot Controller) 3360 Hydraulic System

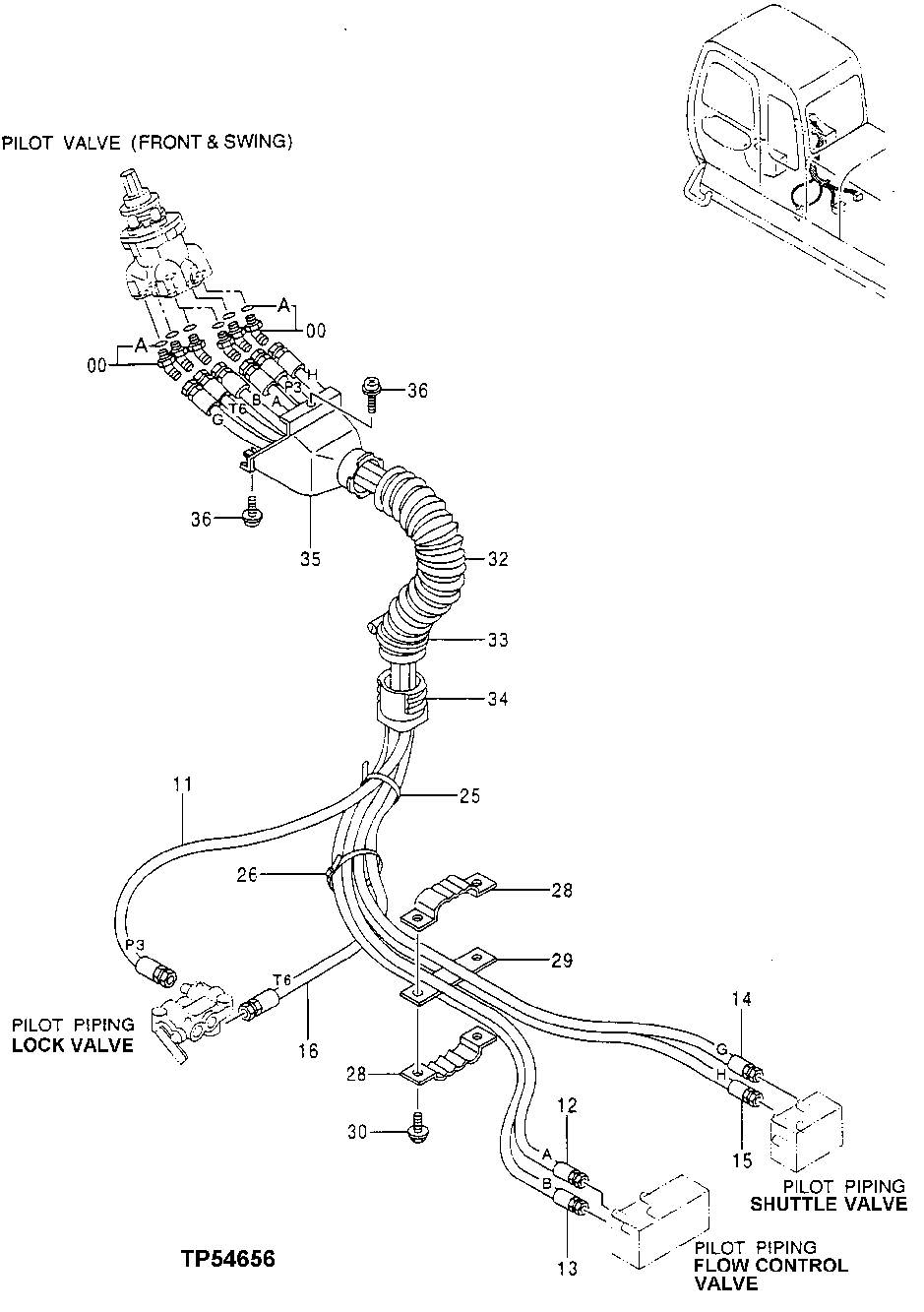

Схема запчастей John Deere 50LC - 253 - Pilot Lines (Left Pilot Controller) 3360 Hydraulic System

Артикул

Название

Примечание

Количество

0

A852223

Elbow Fitting

(SUB FOR AT154994 OR 4286916)

6шт.

0A

M800650

Packing

1шт.

11

AT215542

Hydraulic Hose

1шт.

12

4351190

Hydraulic Hose

(SUB FOR AT213904, THIS APPL ICATION ) (SUB FOR AT217110)

1шт.

13

4351190

Hydraulic Hose

(SUB FOR AT217110)

1шт.

14

4387237

Hydraulic Hose

(SUB FOR AT217141)

1шт.

15

4387237

Hydraulic Hose

(SUB FOR AT213908, THIS APP LICATION) (SUB FOR AT217141)

1шт.

16

AT217773

Hydraulic Hose

(SUB FOR AT215543)

1шт.

25

H77698

Tie Band

1шт.

26

H77698

Tie Band

1шт.

28

9727638

Hose Clamp

(SUB FOR AT130505)

2шт.

29

9727636

Plate

(SUB FOR AT130504)

1шт.

30

19M7358

Cap Screw

M10 X 40

2шт.

12M7066

Lock Washer

10 mm

2шт.

32

4351175

Hose

(SUB FOR AT215546) (SUB FOR AT213957)

1шт.

33

4351774

Clamp

(SUB FOR AT213962)

1шт.

34

3079728

Bushing

(SUB FOR AT213780) (SUB FOR AT250589)

1шт.

35

3072745

Cover

(SUB FOR AT213784)

1шт.

36

Screw With Washer

( J460620 NLA) (SUB FOR AT200012)

2шт.

21M7267

Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

Выбрано товаров: 22
