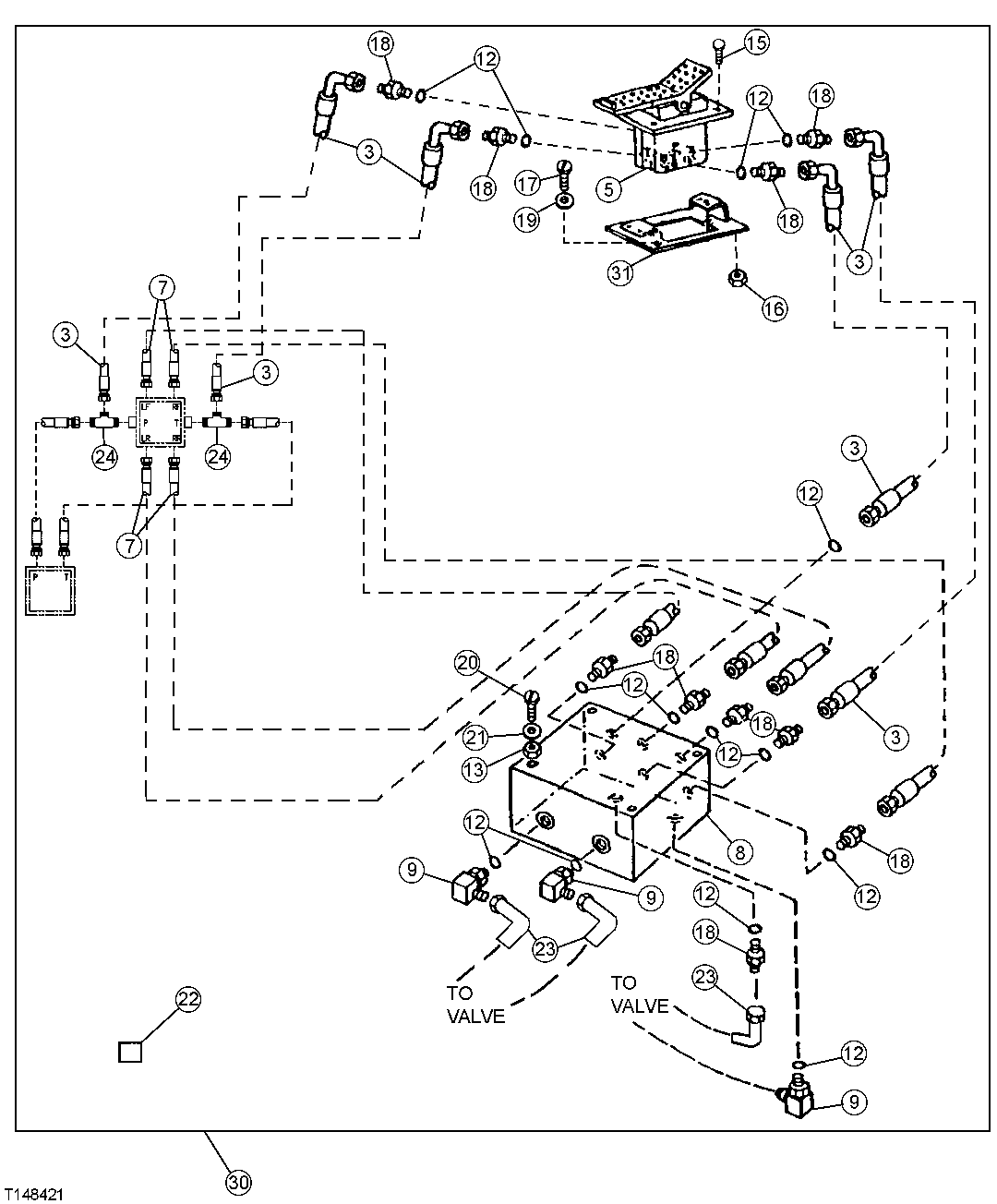

Запчасти John Deere 50LC 245 - Single Pedal Propel Kit 3315 Control Linkage

3

AT71082

Hydraulic Hose

9/16" X 711 mm (28") X 9/16"

4шт.

5

AT152120

Valve

Foot

1шт.

7

AT215538

Hydraulic Hose

9/16" X 880 mm (34-3/4") X 9/16"

4шт.

8

AT170459

Hyd Actuated Control Valve

INCLUDES (4) AT158988

1шт.

AT158988

Hydraulic Pressure Valve

4шт.

9

AT35121

Elbow Fitting

3шт.

12

R26448

O-Ring

11.887 X 1.981 mm (0.468" X 5/64")

14шт.

13

14M7273

Nut

M8

4шт.

15

19M7866

Screw

M8 X 20

4шт.

16

14M7298

Flange Nut

M8

4шт.

17

19M7784

Screw

M10 X 20

2шт.

18

R27212

Fitting

11шт.

19

24M7296

Washer

10.500 X 30 X 2.500 mm

2шт.

20

19M8456

Cap Screw

M8 X 100

4шт.

21

24M7036

Washer

9 X 16 X 1.600 mm

4шт.

22

T153674

Label

Without Auxiliary Hydraulics Low er Front Of Right Side Cab Window

1шт.

T153676

Label

With Auxiliary Hydraulics Lower Front Of Right Side Cab Window

1шт.

23

AE24616

Elbow Fitting

3шт.

24

AT36921

Tee Fitting

2шт.

30

AT196435

Kit

(SUB FOR AT170399 AND AT183064) (WH OLEGOODS) (SINGLE PEDAL PROPEL KIT)

1шт.

31

AT115535

Support

1шт.
