Запчасти John Deere 50LC 243 - Single Pedal Propel Kit 3315 Control Linkage

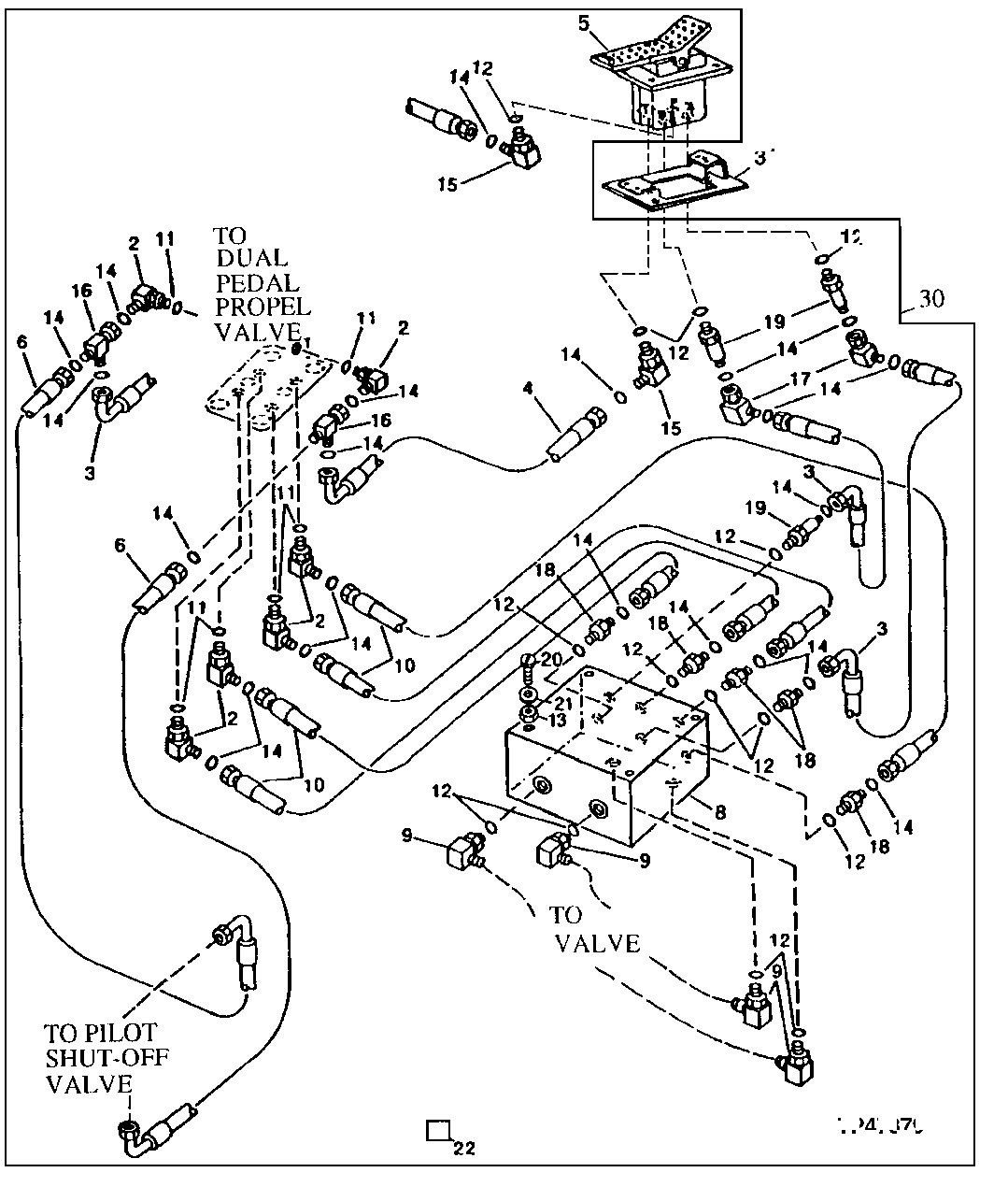

Схема запчастей John Deere 50LC - 243 - Single Pedal Propel Kit 3315 Control Linkage

Артикул

Название

Примечание

Количество

2

AT115002

Elbow Fitting

6шт.

3

AT133590

Hydraulic Hose

17.4752" X 405 mm (16") X 17.4752"

3шт.

4

AT151034

Hydraulic Hose

17.4752" X 575 mm (22-3/4") X 17.4752"

1шт.

5

AT152120

Valve

Foot

1шт.

6

AT170455

Hydraulic Hose

9/16" X 1199 mm (47-1/4") X 17.4752"

2шт.

8

AT170459

Hyd Actuated Control Valve

INCLUDES (4) AT158988

1шт.

AT158988

Hydraulic Pressure Valve

4шт.

9

AT35121

Elbow Fitting

4шт.

10

AT72067

Hydraulic Hose

17.4752" X 583 mm (23") X 17.4752"

4шт.

11

M800650

Packing

6шт.

12

R26448

O-Ring

11.887 X 1.981 mm (0.468" X 5/64")

14шт.

13

14M7273

Nut

M8

4шт.

14

T77613

O-Ring

9.250 X 1.780 mm (0.364" X 0.070")

20шт.

15

38H1004

Elbow Fitting

2шт.

16

38H1030

Tee Fitting

2шт.

17

38H1094

Elbow Fitting

2шт.

18

38H1160

Adapter Fitting

6шт.

19

38H1212

Adapter Fitting

3шт.

20

19M8456

Cap Screw

M8 X 100

4шт.

21

24M7036

Washer

9 X 16 X 1.600 mm

4шт.

22

T153674

Label

Without Auxiliary Hydraulics Low er Front Of Right Side Cab Window

1шт.

T153676

Label

With Auxiliary Hydraulics Lower Front Of Right Side Cab Window

1шт.

30

Kit

(SINGLE PEDAL CONTROL) (ALSO ORDER AT 115535 SUPPORT PEDAL) ( AT170399 NLA)

1шт.

31

AT115535

Support

1шт.

Выбрано товаров: 24
