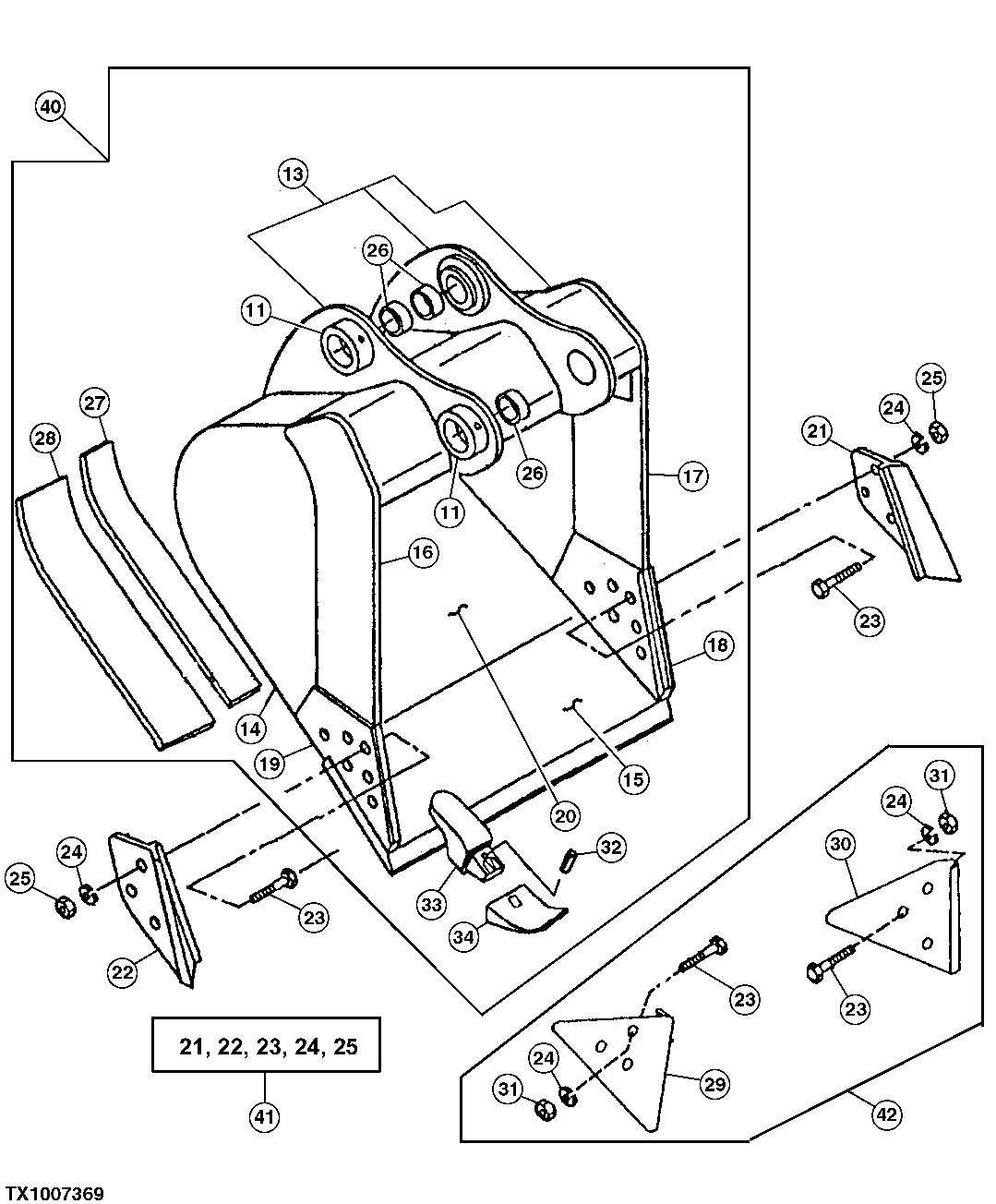

Запчасти John Deere 50LC 221 - Truck Loading Bucket 3302 Bucket With Teeth

11

AT128461

Bushing

2шт.

13

C609726

Pivot

(F) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

304171

Plate

(F) (RH) (LH)

2шт.

15

AT131097

Dura-Max Cutting Edge

(CTL)

1шт.

16

300327

Vertical Cutter

(F) (UPPER RH) (SIDE CUTTER)

1шт.

17

300328

Vertical Cutter

(F) (UPPER LH) (SIDE CUTTER)

1шт.

18

309971

Vertical Cutter

(F) (LH) (CUTTER INSERT)

1шт.

19

309970

Vertical Cutter

(F) (RH) (CUTTER INSERT)

1шт.

20

608619

Moldboard

(F) Upper

1шт.

610934

Moldboard

(F) Lower

1шт.

21

Cutting Edge

(SUB AT131086)

1шт.

22

Cutting Edge

(SUB AT131086)

1шт.

23

09H1772

Bolt

7/8" X 3-1/2"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

26

4205109

Bushing

(SUB FOR AT131768)

3шт.

27

309972

Bar

(F) Inner Wear

2шт.

28

309972

Bar

(F) Outer Wear

2шт.

29

Shroud

Wear Shroud (SUB AT167878)

1шт.

30

Shroud

Wear Shroud (SUB AT167878)

1шт.

31

14H1044

Nut

7/8"

6шт.

32

TP400HD

Pin

ARшт.

33

T802X400

Bucket Tooth Adapter

ARшт.

34

TF400

Tooth

ARшт.

39

T145372

Label

Not Illustrated

1шт.

40

Excavator Bucket

72 in. - 4.18 yd³, (SUB FOR (1) A T163687) ( AT332744 NLA) (INCLUDES T145372 LABEL) (REQUIRES 6 TEETH)

1шт.

41

Kit

( AT131086 NLA) Cutting Edge

1шт.

42

Kit

( AT167878 NLA) Wear

1шт.
