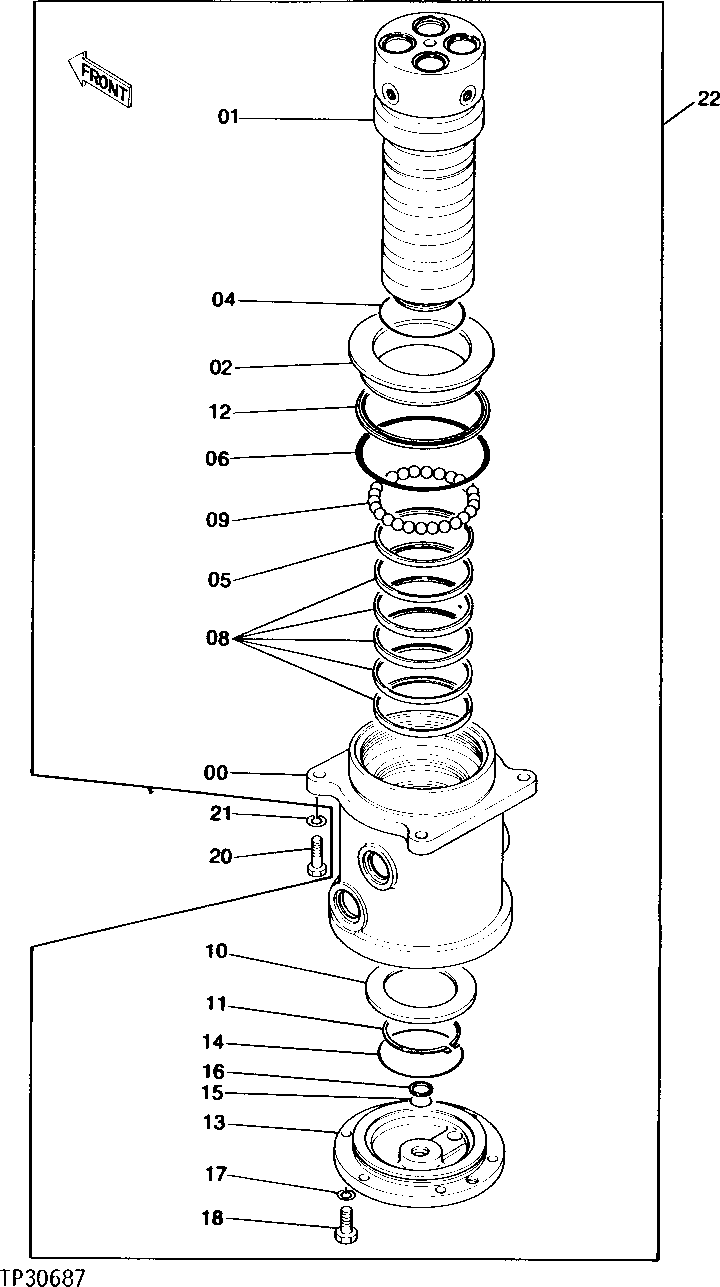

Запчасти John Deere 50LC 13 - Rotary Manifold 0260 Hydraulic System

0

Housing

(SUB AT182281)

1шт.

1

Spindle

(SUB AT182281)

1шт.

2

4201096

Cover

(SUB FOR AT131740)

1шт.

4

CH13523

Packing

1шт.

5

4235683

Seal

(SUB FOR AT131951)

1шт.

6

4007535

O-Ring

154.500 X 8.400 mm (6.083" X 0.331") (SUB FOR AT132148)

1шт.

8

4251186

Seal

(SUB FOR AT131245)

5шт.

9

972658

Ball

(SUB FOR T38788)

26шт.

10

4201095

Washer

95 X 139 X 8 mm (3.740" X 5.47 2" X 0.315") (SUB FOR AT131739)

1шт.

11

991353

Snap Ring

(SUB FOR AT132143)

1шт.

12

4201311

Seal

(SUB FOR AT131742)

1шт.

13

2025705

Cover

(SUB FOR AT131600)

1шт.

14

A810155

O-Ring

154.300 X 5.700 mm (6.075" X 0.224") (SUB FOR AT131528)

1шт.

15

966689

O-Ring

24.700 X 3.500 mm (0.972" X 0.138") (SUB FOR TH108142)

1шт.

16

4113187

Back-Up Ring

25 X 31 X 1.250 mm (63/64" X 1.2 20" X 0.049") (SUB FOR AT131692)

1шт.

17

12H301

Lock Washer

1/2"

6шт.

18

19M7403

Cap Screw

M12 X 35

6шт.

20

19M7488

Cap Screw

M16 X 40

4шт.

21

12H294

Lock Washer

5/8"

4шт.

22

9132584

Universal Joint

NLA (ORDER 9132584EX)

1шт.

9132584EX

Manifold Reman

Rotary (REMAN FOR 9132584) (SUB FOR AT201939, AT182281)

1шт.
