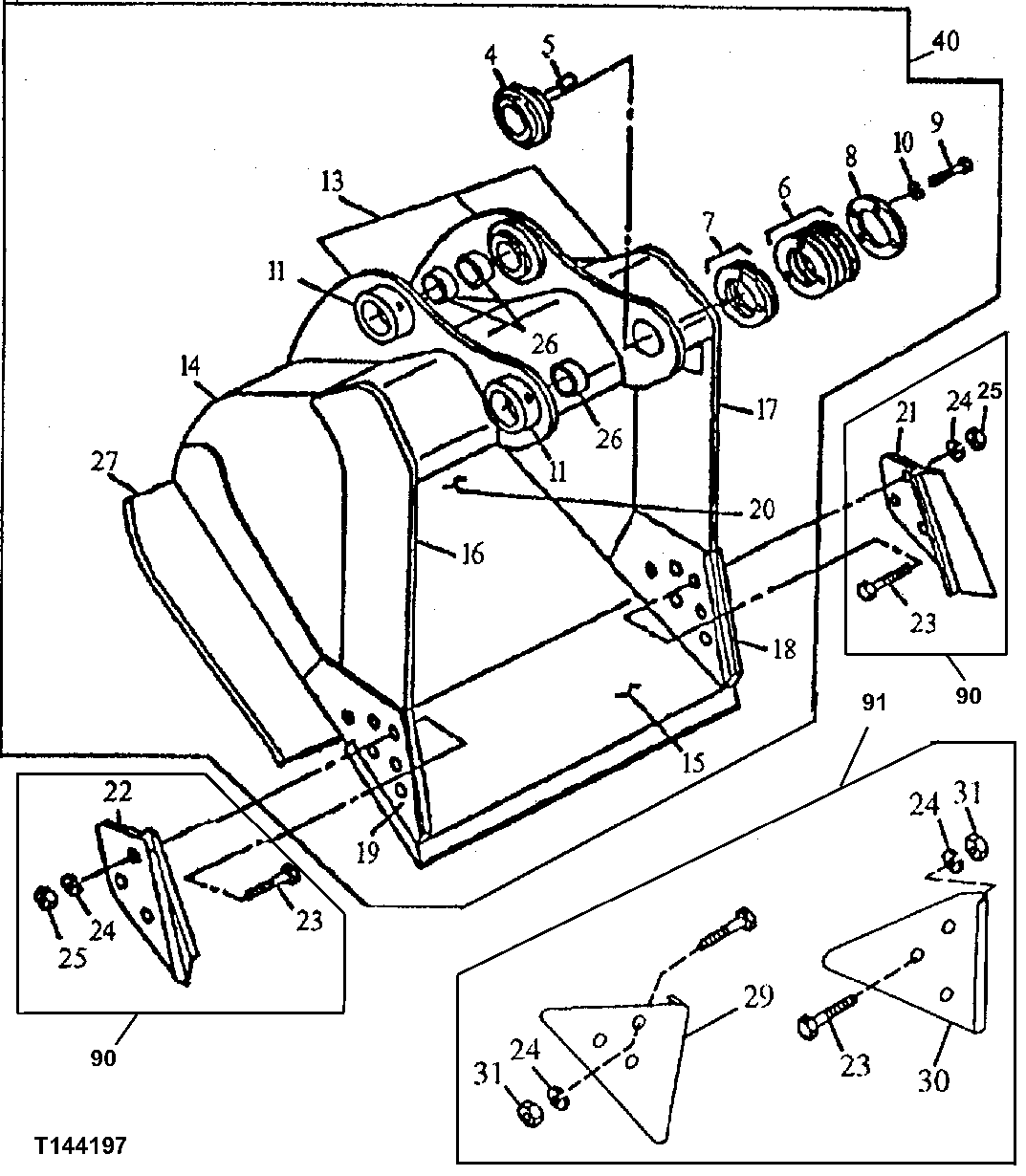

Запчасти John Deere 50LC 219 - Severe Duty Plate Lip Bucket (Also Order Bucket Tooth Assemblies) 3302 Bucket With Teeth

4

3038818

Boss

(SUB FOR AT131625)

1шт.

5

4179110

Pin

(SUB FOR TH103520)

2шт.

6

AT131816

Washer

1 mm

7шт.

7

4207194

Shim

5 mm, (SUB FOR AT131815)

2шт.

8

AT131814

Plate

1шт.

9

19H2706

Cap Screw

5/8" X 2"

4шт.

10

12H294

Lock Washer

5/8"

4шт.

11

AT128461

Bushing

2шт.

13

C606320

Pivot

(F) Bucket Ear Blank Assembly

1шт.

14

304578

Plate

(F) Right and Left Side

2шт.

15

AT131096

Dura-Max Cutting Edge

(CTL)

1шт.

16

300642

Vertical Cutter

(F) Upper Right Side Cutter

1шт.

17

300647

Vertical Cutter

(F) Upper Left Side Cutter

1шт.

18

300344

Vertical Cutter

(F) Left Side Cutter Insert

1шт.

19

300343

Vertical Cutter

(F) Right Side Cutter Insert

1шт.

20

605585

Moldboard

(F) 42 in

1шт.

605586

Moldboard

(F) 48 in

1шт.

605587

Moldboard

(F) 54 in

1шт.

21

Cutting Edge

(K) (SUB AT131086) (USE O N 42, 48 OR 54 in. BUCKET)

1шт.

Cutting Edge

(SUB AT131085) (K2) (USE ON 36 in. BUCKET)

1шт.

22

Cutting Edge

(K) (SUB AT131086) (USE O N 42, 48 OR 54 in. BUCKET)

1шт.

Cutting Edge

(SUB AT131085) (K2) (USE ON 36 in. BUCKET)

1шт.

23

09H1772

Bolt

(K) 7/8" X 3-1/2" (K3) (USE ON 42, 48 OR 54 in. BUCKET)

6шт.

09H1771

Bolt

7/8" X 3" (K2) (K4) (USE ON 36 in. BUCKET)

6шт.

24

12H245

Lock Washer

(K) 7/8" (K2) (K3) (K4)

6шт.

25

14H1077

Nut

(K) 7/8" (K2)

6шт.

26

4205109

Bushing

(SUB FOR AT131768)

3шт.

27

605591

Bar

(F) 42 in. , Double Bottom Wear Bar

1шт.

605592

Bar

(F) 48 in., Double Bottom Wear Bar

1шт.

605593

Bar

(F) 54 in., Double Bottom Wear Bar

1шт.

29

Shroud

(K3) (K4) Wear Shroud

1шт.

Shroud

(SUB AT167876) Wear Shroud

1шт.

30

Shroud

(K3) (K4) Wear Shroud

1шт.

Shroud

Wear Shroud (SUB AT167876)

1шт.

31

14H1044

Nut

7/8" (K3) (K4)

6шт.

40

Excavator Bucket

36 in. - 1.56 yd³, ( AT167304 NLA) (AVAI LABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

Excavator Bucket

42 in. - 1.85 yd³, ( AT163696 NLA) (AVAI LABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

Loader Bucket

48 in. - 2.15 yd³, ( AT163697 NLA) (AVAI LABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

Loader Bucket

54 in - 2.45 yd³, ( AT163698 NLA) (AVAI LABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

90

Kit

(SIDE CUTTER KIT) (INCLUDES A LL (K) PARTS) ( AT131086 NLA)

1шт.

Kit

(SIDE CUTTER KIT) (INCLUDES A LL (K2) PARTS) ( AT131085 NLA)

1шт.

91

Kit

(EDGE KIT) (INCLUDES ALL ( K3) PARTS) ( AT167878 NLA)

1шт.

Kit

(EDGE PROTECTOR KIT) (NCLUDES ALL (K4) PARTS) ( AT167876 NLA)

1шт.
