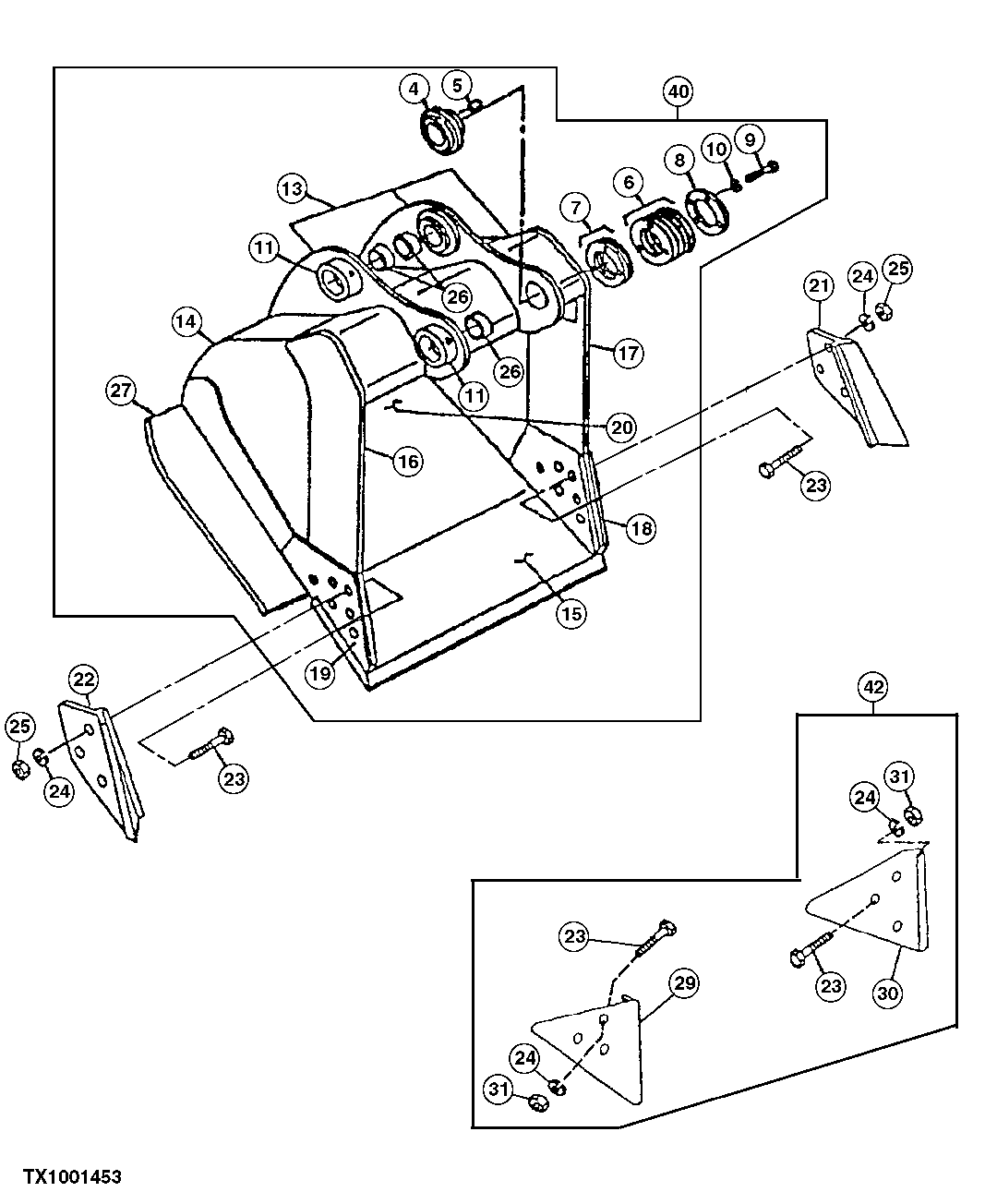

Запчасти John Deere 50LC 218 - Severe Duty Cast Lip Bucket (Also Order Bucket Tooth Assemblies) 3302 Bucket With Teeth

4

3038818

Boss

(SUB FOR AT131625)

1шт.

5

4179110

Pin

(SUB FOR TH103520)

2шт.

6

AT131816

Washer

1 mm

7шт.

7

4207194

Shim

5 mm, (SUB FOR AT131815)

2шт.

8

AT131814

Plate

1шт.

9

19H2706

Cap Screw

5/8" X 2"

4шт.

10

12H294

Lock Washer

5/8"

4шт.

11

AT128461

Bushing

2шт.

13

C606320

Pivot

(F) Bucket Ear Blank Assembly

1шт.

14

304578

Plate

(F) Right and Left Side

2шт.

15

Cutting Edge

(F) (USE W/ 42 INCH BUCK ET) (CTL) ( AT131094 NLA)

1шт.

Cutting Edge

(F) (USE W/ 48 INCH BUCK ET) (CTL) ( AT131095 NLA)

1шт.

16

300642

Vertical Cutter

(F) Upper Right Side Cutter

1шт.

17

300647

Vertical Cutter

(F) Upper Left Side Cutter

1шт.

18

300344

Vertical Cutter

(F) Left Side Cutter Insert

1шт.

19

300343

Vertical Cutter

(F) Right Side Cutter Insert

1шт.

20

600373

Moldboard

(F) 42 in

1шт.

600374

Moldboard

(F) 48 in

1шт.

21

Cutting Edge

(K) (SUB AT131085)

1шт.

22

Cutting Edge

(K) (SUB AT131085)

1шт.

23

09H1771

Bolt

(K) 7/8" X 3"

6шт.

24

12H245

Lock Washer

(K) 7/8"

6шт.

25

14H1077

Nut

(K) 7/8"

6шт.

26

4205109

Bushing

(SUB FOR AT131768)

3шт.

27

606116

Bar

(F) 42 in., Double Bottom Wear Bar

1шт.

606117

Bar

(F) 48 in., Double Bottom Wear Bar

1шт.

29

Shroud

Wear Shroud

1шт.

30

Shroud

Wear Shroud

1шт.

31

14H1044

Nut

7/8"

6шт.

40

Excavator Bucket

42 in. - 1.80 yd³, ( AT163694 NL A) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE) Requires 5 Teeth

1шт.

Excavator Bucket

48 in. - 2.15 yd³, ( AT163695 NL A) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE) Requires 5 Teeth

1шт.

41

Kit

Cutting Edge ( AT131085 NLA)

1шт.

42

Kit

Wear ( AT167876 NLA)

1шт.
