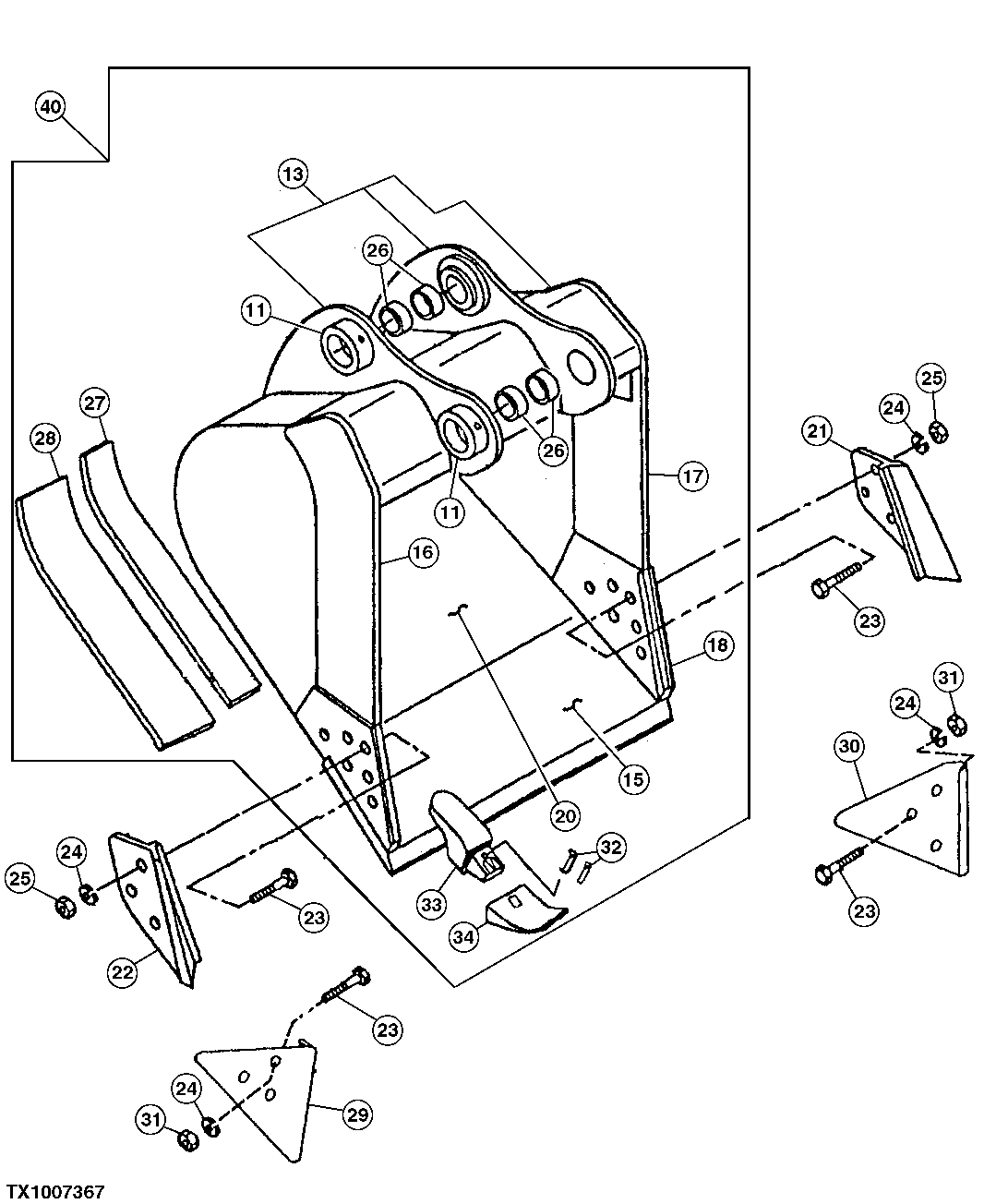

Запчасти John Deere 50LC 216 - Heavy Duty High Capacity Bucket 3302 Bucket With Teeth

11

AT128461

Bushing

2шт.

13

C606320

Pivot

(F) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

300324

Plate

(F) (RH) (LH)

2шт.

15

AT131098

Dura-Max Cutting Edge

(CTL)

1шт.

16

300327

Vertical Cutter

(F) (UPPER RH) (SIDE CUTTER)

1шт.

17

300328

Vertical Cutter

(F) (UPPER LH) (SIDE CUTTER)

1шт.

18

300326

Vertical Cutter

(F) (LH) (CUTTER INSERT)

1шт.

19

300325

Vertical Cutter

(F) (RH) (CUTTER INSERT)

1шт.

20

600190

Moldboard

(F) (36 INCH BUCKET)

1шт.

600192

Moldboard

(F) (42 INCH BUCKET)

1шт.

600194

Moldboard

(F) (48 INCH BUCKET)

1шт.

600195

Moldboard

(F) (54 INCH BUCKET)

1шт.

600196

Moldboard

(F) (60 INCH BUCKET)

1шт.

Moldboard

(66 INCH BUCKET)

1шт.

608234

Moldboard

(F) (72 INCH BUCKET)

1шт.

21

Cutting Edge

(K) (SUB AT131085)

1шт.

22

Cutting Edge

(K) (SUB AT131085)

1шт.

23

09H1771

Bolt

7/8" X 3" (K) (K2)

6шт.

24

12H245

Lock Washer

7/8" (K) (K2)

6шт.

25

14H1077

Nut

(K) 7/8"

6шт.

26

4205109

Bushing

(SUB FOR AT131768)

4шт.

27

300645

Bar

(F) (INNER WEAR)

1шт.

28

307451

Bar

(F) (OUTER WEAR)

1шт.

29

Shroud

(K2) (WEAR SHROUD)

1шт.

30

Shroud

(K2) (WEAR SHROUD)

1шт.

31

14H1044

Nut

7/8" (K2)

6шт.

32

TP475HD

Pin Fastener

ARшт.

33

T303X475

Bucket Tooth Adapter

ARшт.

34

TF475

Tooth

ARшт.

40

Excavator Bucket

48 in. - 2.69 yd³, (SUB FOR (1) AT183 647) ( AT332745 NLA) Requires 5 Teeth

1шт.

Excavator Bucket

54 in. - 3.06 yd³, (SUB FOR (1) AT183 648) ( AT332746 NLA) Requires 5 Teeth

1шт.

Excavator Bucket

60 in. - 3.43 yd³, (SUB FOR (1) AT183 649) ( AT332747 NLA) Requires 6 Teeth

1шт.

Excavator Bucket

66 in. 3.80 yd³, (SUB FOR (1) AT183 650( AT332748 NLA) Requires 6 Teeth

1шт.

Excavator Bucket

72 in. - 4.18 yd³, (SUB FOR (1) AT183 651) ( AT332749 NLA) Requires 7 Teeth

1шт.
