1
4382771

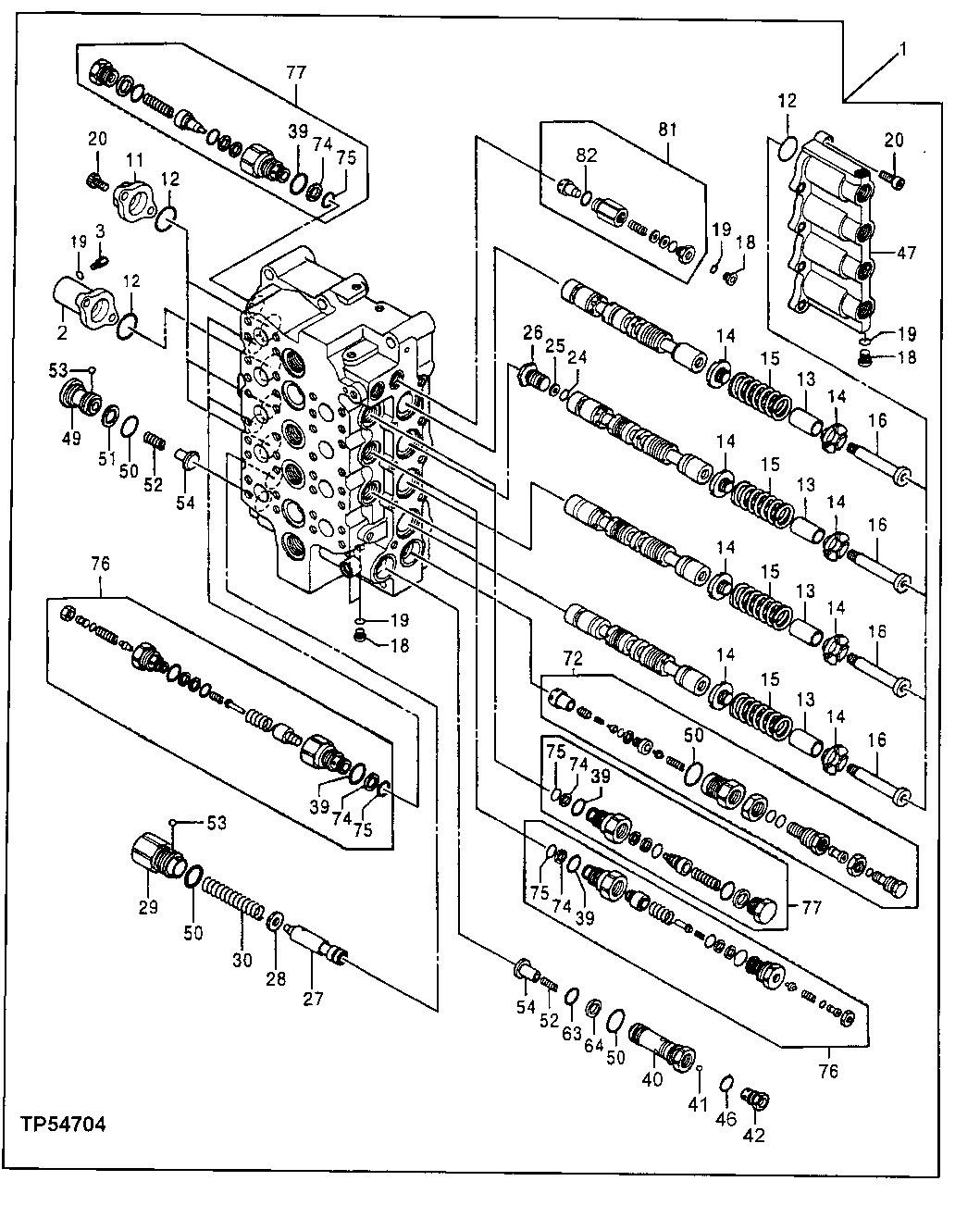

Hyd Actuated Control Valve
(SUB FOR AT216996 AND 4342876EX) (SUB FOR AT183699) (CONTAINS ALL ITEMS ON TH IS PAGE, ADDITIONAL COMPONENETS LISTED ON PREVIOUS AND FOLLOWING PAGES) (REMAN )
1шт.
2
0622876
Cover
(SUB FOR AT172703)
1шт.
3
0622875
Plug
(SUB FOR AT172702)
1шт.
11
0622803
Cover
(SUB FOR AT201987)
3шт.
12
4073426
O-Ring
(SUB FOR AT217049)
8шт.
13
0622805
Sleeve
(SUB FOR AT201989)
4шт.
14
0622806
Guide
(SUB FOR AT201990)
8шт.
15
0622807
Spring
(SUB FOR AT201991)
4шт.
16
0622808
Cap
(SUB FOR AT201992)
4шт.
18
0622810
Cap
(SUB FOR AT201994)
4шт.
19
M800650
Packing
5шт.
20
19M8169
Screw
M12 X 30
16шт.
24
CH10568
Packing
1шт.
25
0166805
Back-Up Ring
(SUB FOR AT217051)
1шт.
26
0622877
Cap (Hat)
(SUB FOR AT172704)
1шт.
27
0622815
Spool
(SUB FOR AT201999)
1шт.
28
0622816
Spacer
(SUB FOR AT202000)
1шт.
29
0622817
Cap
(SUB FOR AT202001)
1шт.
30
0622818
Spring
(SUB FOR AT202002)
1шт.
39
4342846
O-Ring
(SUB FOR 4153108, THIS APPLICATION)
6шт.
40
0622872
Cap
(SUB FOR AT202056)
1шт.
41
0622873
Ball
(SUB FOR AT202057)
1шт.
42
0622871
Seat
(SUB FOR AT202055)
1шт.
46
4506418
O-Ring
17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)
1шт.
47
0622823
Cover
(SUB FOR AT202007)
1шт.
49
0622825
Cap
(SUB FOR AT202009)
1шт.
50
4088425
O-Ring
(SUB FOR AT202080)
4шт.
51
0223104
Back-Up Ring
(SUB FOR AT217055)
1шт.
52
0622827
Spring
(SUB FOR AT202011)
2шт.
53
0189803
Ball
(SUB FOR AT203704)
2шт.
54
0622829
Check Valve
(SUB FOR AT202013)
2шт.
63
966689
O-Ring
24.700 X 3.500 mm (0.972" X 0.138") (SUB FOR TH108142)
1шт.
64
4113187
Back-Up Ring
25 X 31 X 1.250 mm (63/64" X 1.2 20" X 0.049") (SUB FOR AT131692)
1шт.
72
4392196
Pressure Relief Valve
(SUB FOR AT217150) (MAIN SYSTEM RELIEF)
1шт.
74
4027959
Back-Up Ring
(SUB FOR TH100771)
6шт.
75
4153099
O-Ring
(SUB FOR AT202086) (SUB FOR 4153 099, OR 0818011THIS APPLICATION)
6шт.
76
4392197
Pressure Relief Valve
(SUB FOR AT217151) Boom and Bucket
4шт.
77
0622843
Flow Control Hyd. Valve
(SUB FOR AT202027) (MAKE UP - ARM II)
2шт.
81
4391505
Pressure Relief Valve
(SUB FOR AT217147) (FLOW SENSE)
1шт.
82
985099
O-Ring
20.800 X 2.400 mm (0.819" X 3/32") (SUB FOR TH101479)
1шт.
