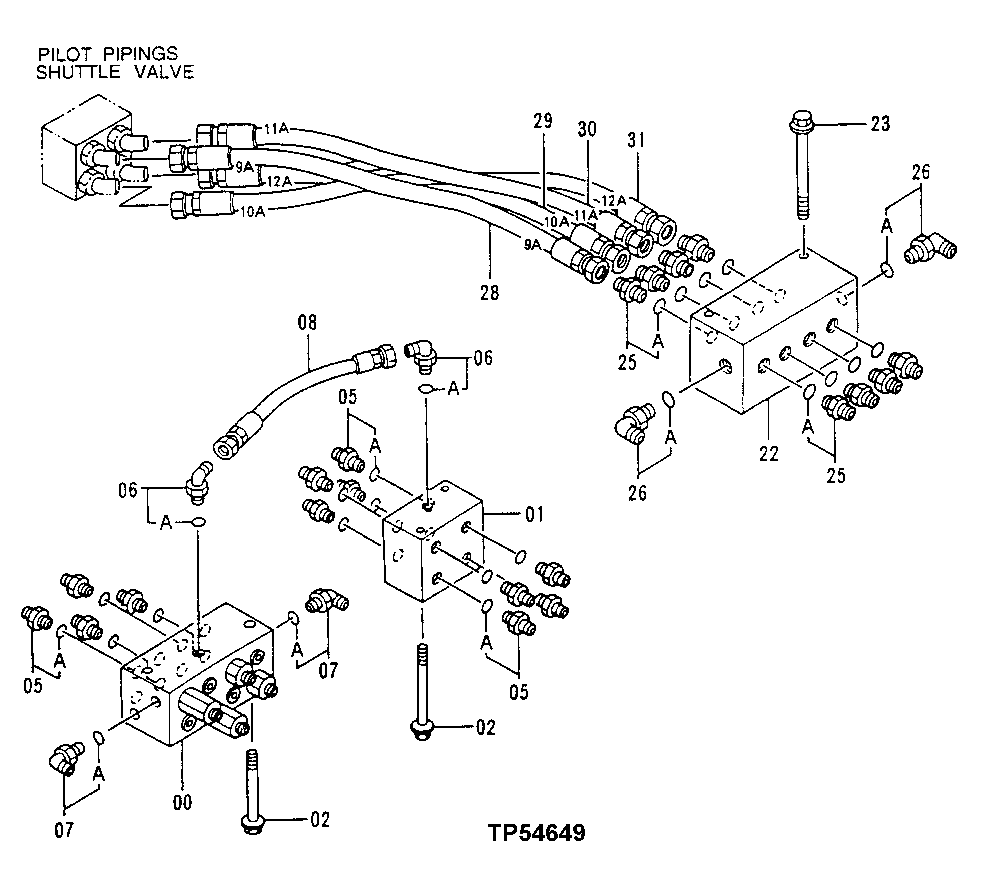

Запчасти John Deere 50LC 190 - Control Valve Pilot Lines 2162 Hydraulic Selective Control & Load Holding Valves

0

4335650

Hyd Actuated Control Valve

SUB FOR AT201805 Flow Control

1шт.

1

4254613

Flow Control Hyd. Valve

SUB FOR AT154218 Shuttle

1шт.

2

19M7932

Cap Screw

M8 X 16

4шт.

Washer

12M7065 NLA

4шт.

5

4200466

Adapter Fitting

SUB FOR TH108320

12шт.

5A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

6

4154670

Elbow Fitting

SUB FOR TH100951

2шт.

6A

M800650

Packing

1шт.

7

A852333

Elbow Fitting

SUB FOR TH101047; SUB FOR 4154671

2шт.

7A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

8

AT202491

Hydraulic Hose

11.1252" X 300 mm (11-3/4") X 11.1252"

1шт.

22

4335088

Hyd Actuated Control Valve

SUB FOR AT201801 Flow Control

1шт.

23

4305337

Screw With Washer

SUB FOR AT159662

2шт.

25

4200466

Adapter Fitting

SUB FOR TH108320

8шт.

25A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

26

4200471

Elbow Fitting

SUB FOR TH108399

2шт.

26A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

28

AT216981

Hydraulic Hose

1шт.

29

AT216982

Hydraulic Hose

1шт.

30

AT216983

Hydraulic Hose

1шт.

31

AT216984

Hydraulic Hose

1шт.
