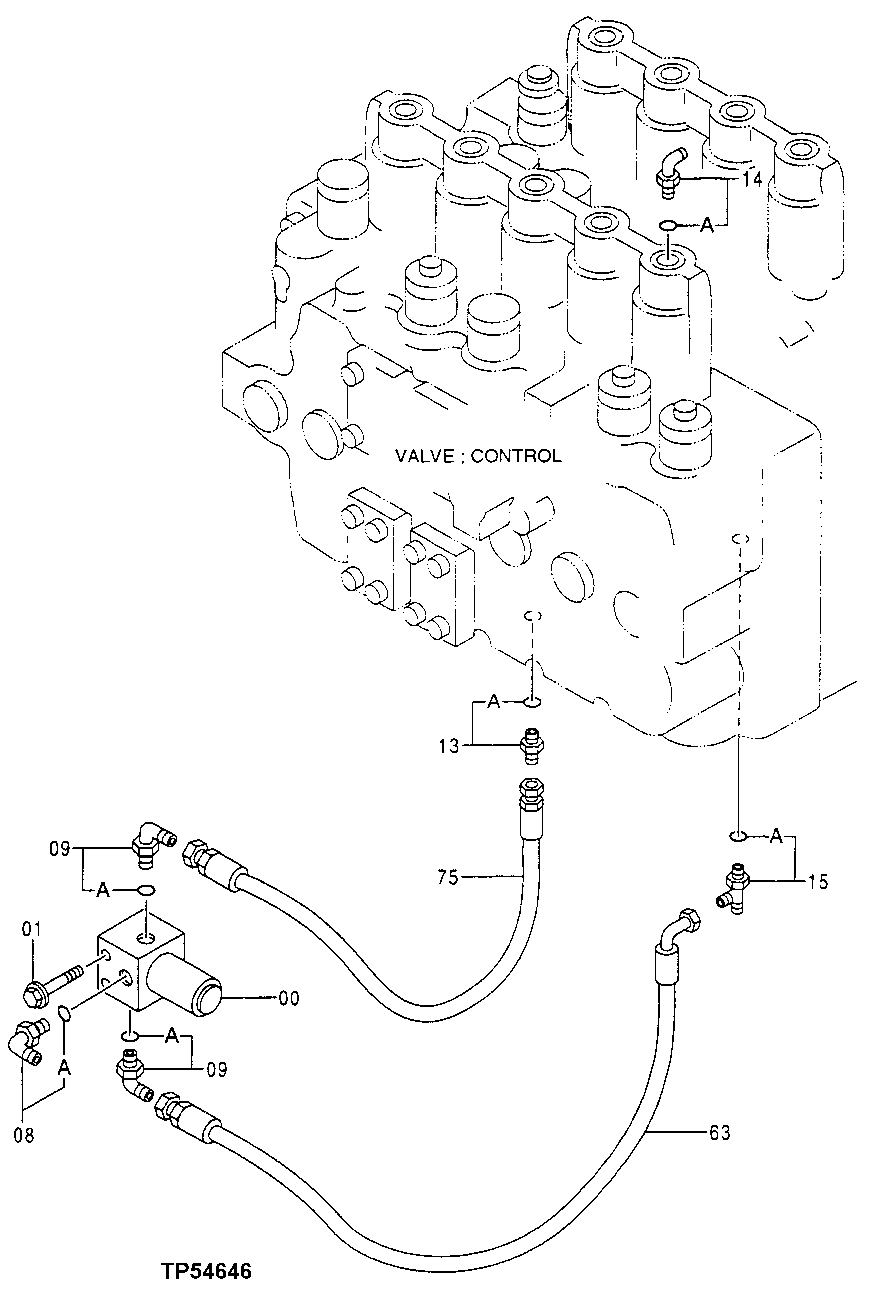

Запчасти John Deere 50LC 189 - SOLENOID VALVE AND PILOT PIPINGS 2162 Hydraulic Selective Control & Load Holding Valves

0

4729022

Solenoid Valve

SUB FOR AT202111 AND 4261289; GP II; P ILOT OIL; FOR DETAIL SEE SEPARATE PAGE

1шт.

1

Screw With Washer

J010860 NLA

2шт.

19M7932

Cap Screw

M8 X 16

2шт.

Washer

12M7065 NLA

2шт.

8

4154670

Elbow Fitting

SUB FOR TH100951

1шт.

8A

M800650

Packing

1шт.

9

AT318014

Elbow Fitting

SUB FOR 4156434; SUB FOR TH101930

2шт.

9A

M800650

Packing

1шт.

13

4200466

Adapter Fitting

SUB FOR TH108320

1шт.

13A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

14

A852333

Elbow Fitting

SUB FOR TH101047; SUB FOR 4154671

1шт.

14A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

15

4205363

Tee Fitting

SUB FOR AT126362

1шт.

15A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

63

T111112

Hydraulic Hose

9/16" X 675 mm (26-1/2") X 9/16"

1шт.

75

AT67064

Hydraulic Hose

9/16" X 750 mm (29-1/2") X 9/16"

1шт.
