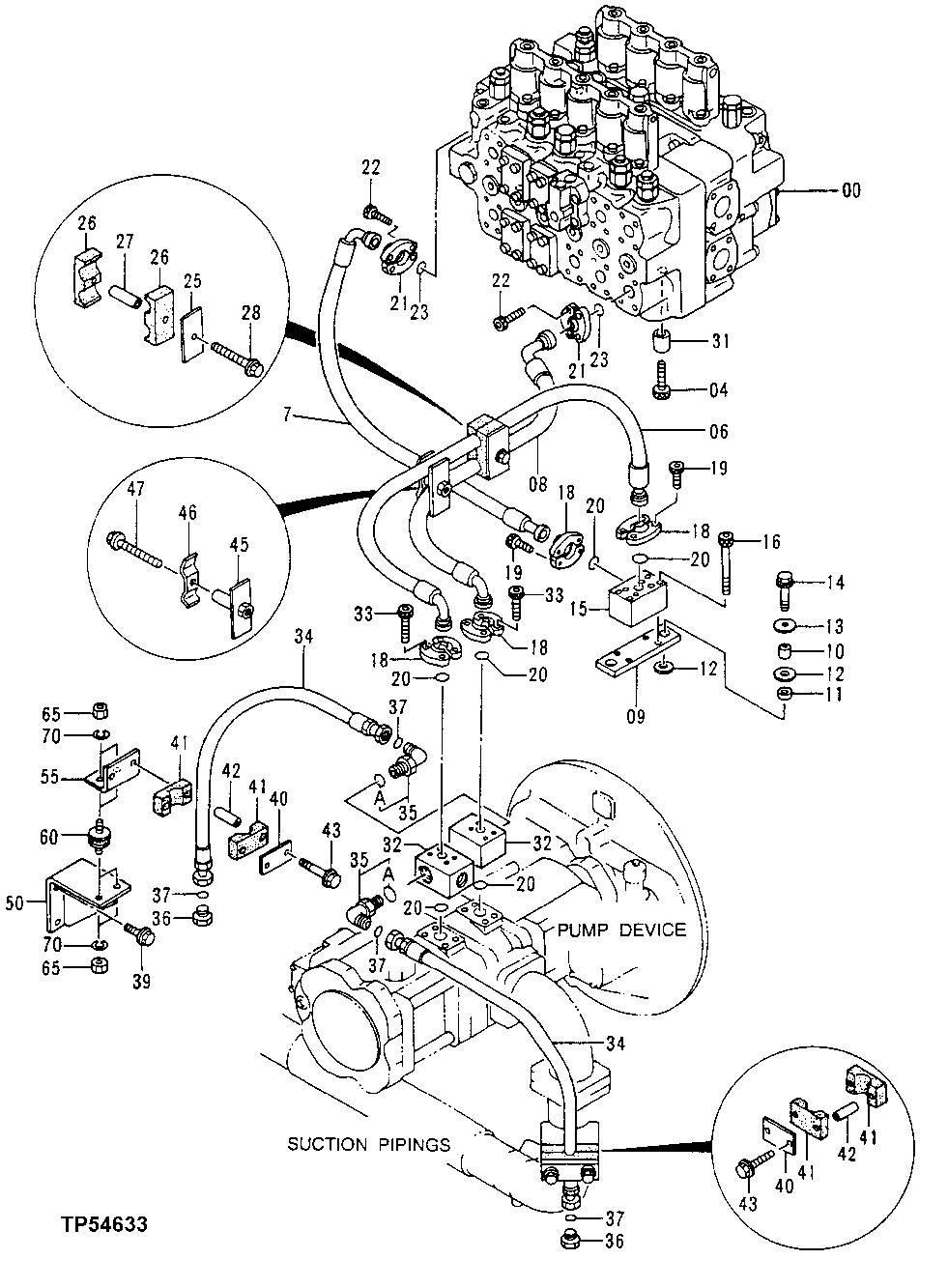

Запчасти John Deere 50LC 187 - Delivery Lines 2160 Vehicle Hydraulics

0

4382771

Hyd Actuated Control Valve

SUB FOR AT216996, 43827 71EX AND AT183699 Reman

1шт.

4

M342000

Screw

4шт.

6

AT168735

Hydraulic Hose

1" X 1800 mm (70-3/4") X 1"

1шт.

7

AT168747

Hydraulic Hose

1" X 1050 mm (41-1/4") X 1-1/4"

1шт.

8

4342263

Hydraulic Hose

SUB FOR AT202233

1шт.

9

4307413

Bracket

SUB FOR AT201757

1шт.

10

4235677

Spacer

SUB FOR AT202099

2шт.

11

4247139

Bushing

SUB FOR AT202106

2шт.

12

4247140

Spacer

SUB FOR AT202107

4шт.

13

24H1900

Washer

17/32" X 2" X 1/4"

2шт.

14

19M7363

Cap Screw

M12 X 60

2шт.

12H301

Lock Washer

1/2"

2шт.

15

3063293

Junction Block

SUB FOR AT201696

1шт.

16

19M8547

Screw

M12 X 90 SUB FOR AT127258 OR M341290

4шт.

18

4085560

Flange Fitting

SUB FOR TH101960

8шт.

19

19M8395

Screw

M12 X 40

8шт.

20

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139")

6шт.

21

AT131685

Flange Fitting

4шт.

22

19M8734

Screw

M14 X 45

8шт.

23

T72216

O-Ring

37.694 X 3.531 mm (1-31/64" X 0.139")

2шт.

25

4711050

Plate

SUB FOR AT131918 AND 4224002

1шт.

26

4205615

Hose Clamp

SUB FOR AT131792

2шт.

27

4205614

Spacer

14.300 X 21.700 X 55 mm (9/16" X 0.854" X 2.165") SUB FOR AT131791

1шт.

28

19M7943

Cap Screw

M12 X 90

1шт.

12H301

Lock Washer

1/2"

1шт.

31

4354513

Spacer

20.500 X 50 X 49 mm (0.807" X 1- 31/32" X 1.929") SUB FOR AT172243

4шт.

32

2040045

Junction Block

SUB FOR AT178130

2шт.

33

M341211

Bolt

SUB FOR AT202274

8шт.

34

4286812

Hydraulic Hose

SUB FOR AT202308

2шт.

35

A853388

Elbow Fitting

SUB FOR TH108325 OR 4198799

2шт.

35A

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.

36

4210056

Plug

SUB FOR AT202300

2шт.

37

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

4шт.

39

19M7872

Cap Screw

M12 X 25

4шт.

12H301

Lock Washer

1/2"

4шт.

40

4341803

Plate

SUB FOR AT201827

2шт.

41

4349621

Hose Clamp

SUB FOR AT170625

4шт.

42

4215879

Spacer

SUB FOR AT170626 AND 4349648

4шт.

43

19M7949

Cap Screw

M12 X 100

4шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

4шт.

45

9736782

Clamp

SUB FOR AT202385, THIS APP LICATION, SUB FOR AT201191

1шт.

46

4202103

Clamp

SUB FOR TH108302

1шт.

47

19M8348

Cap Screw

M12 X 65

1шт.

12H301

Lock Washer

1/2"

1шт.

50

8067690

Bracket

SUB FOR AT217030

1шт.

55

9747606

Bracket

SUB FOR AT217041

1шт.

60

4354592

Isolator

SUB FOR AT216977

2шт.

65

14M7274

Nut

M10

4шт.

70

12M7066

Lock Washer

10 mm

4шт.
