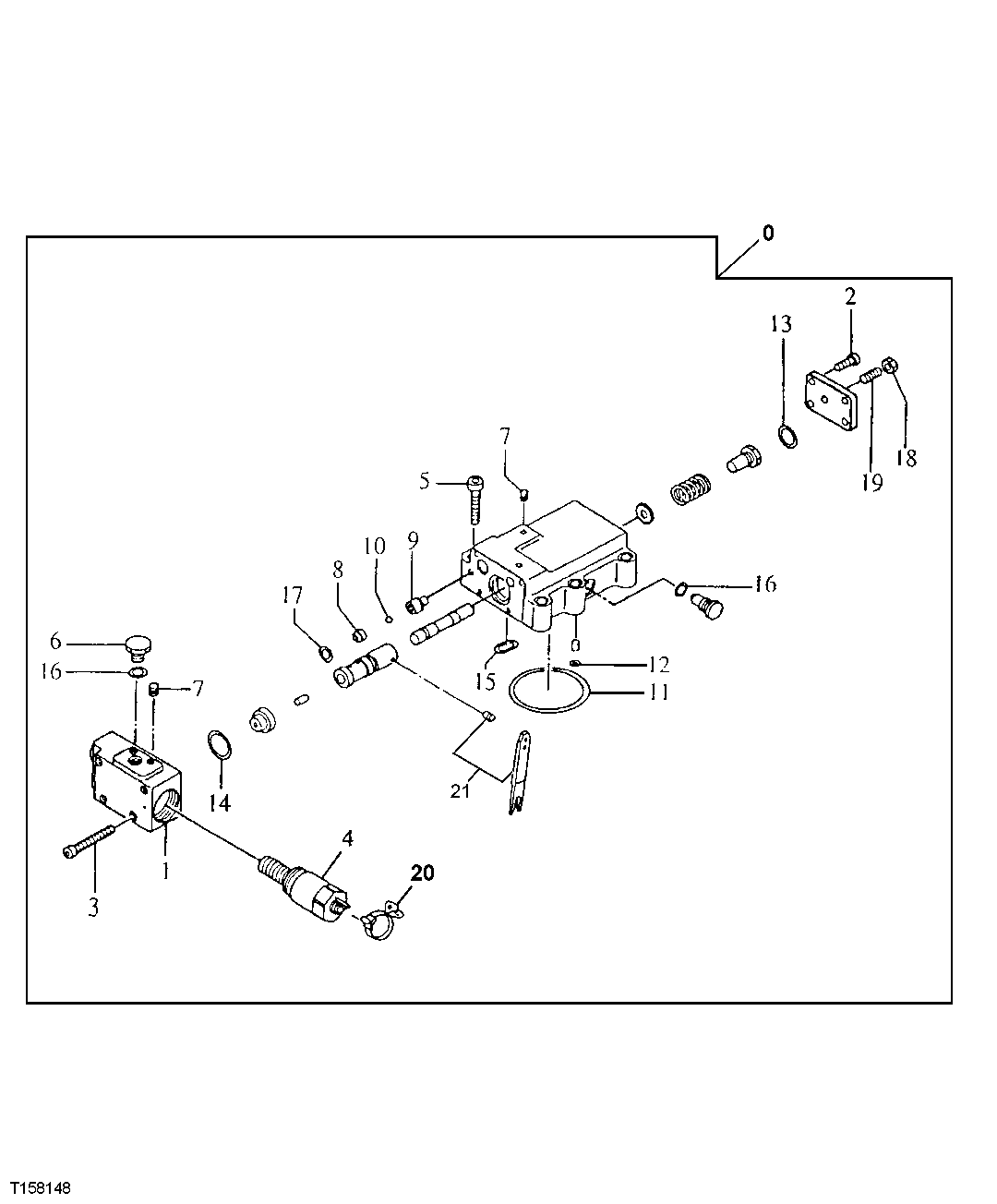

Запчасти John Deere 50LC 181 - Regulator 2160 Vehicle Hydraulics

0

4332607

Regulator

(SUB FOR AT201788)

2шт.

1

0451101

Case

(SUB FOR AT201635)

1шт.

2

0237902

Bolt

(SUB FOR AT201967)

4шт.

3

19M8541

Screw

M6 X 50

4шт.

4

4368974

Flow Control Hyd. Valve

(SUB FOR AT176176)

1шт.

5

19M8711

Screw

M8 X 50

6шт.

6

0236014

Fitting Plug

(SUB FOR TH102650)

1шт.

7

15H560

Pipe Plug

1/16"

7шт.

8

0978601

Valve

(SUB FOR AT201636 AND 0451102)

2шт.

9

0978601

Valve

(SUB FOR AT201637 AND 0451103)

2шт.

10

0451104

Ball

(SUB FOR AT201638)

2шт.

11

TH105684

O-Ring

74.400 X 3.100 mm (2.929" X 0.122")

1шт.

12

4506408

O-Ring

7.800 X 1.900 mm (0.307" X 0.075") (SUB FOR TH101490)

5шт.

13

4506416

O-Ring

15.800 X 2.400 mm (0.622" X 3/32") (SUB FOR TH102561)

1шт.

14

966689

O-Ring

24.700 X 3.500 mm (0.972" X 0.138") (SUB FOR TH108142)

1шт.

15

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

16

M800650

Packing

2шт.

17

4140470

O-Ring

12.300 X 2.400 mm (31/64" X 3/32") (SUB FOR TH109089)

2шт.

18

14M7147

Nut

M8

1шт.

19

22M7148

Set Screw

M8 X 16 (SUB FOR 22M7070)

1шт.

20

4413218

Clamp

(SUB FOR AT184548) (SUB FOR AT184550)

1шт.

21

4467807

Lever

1шт.
