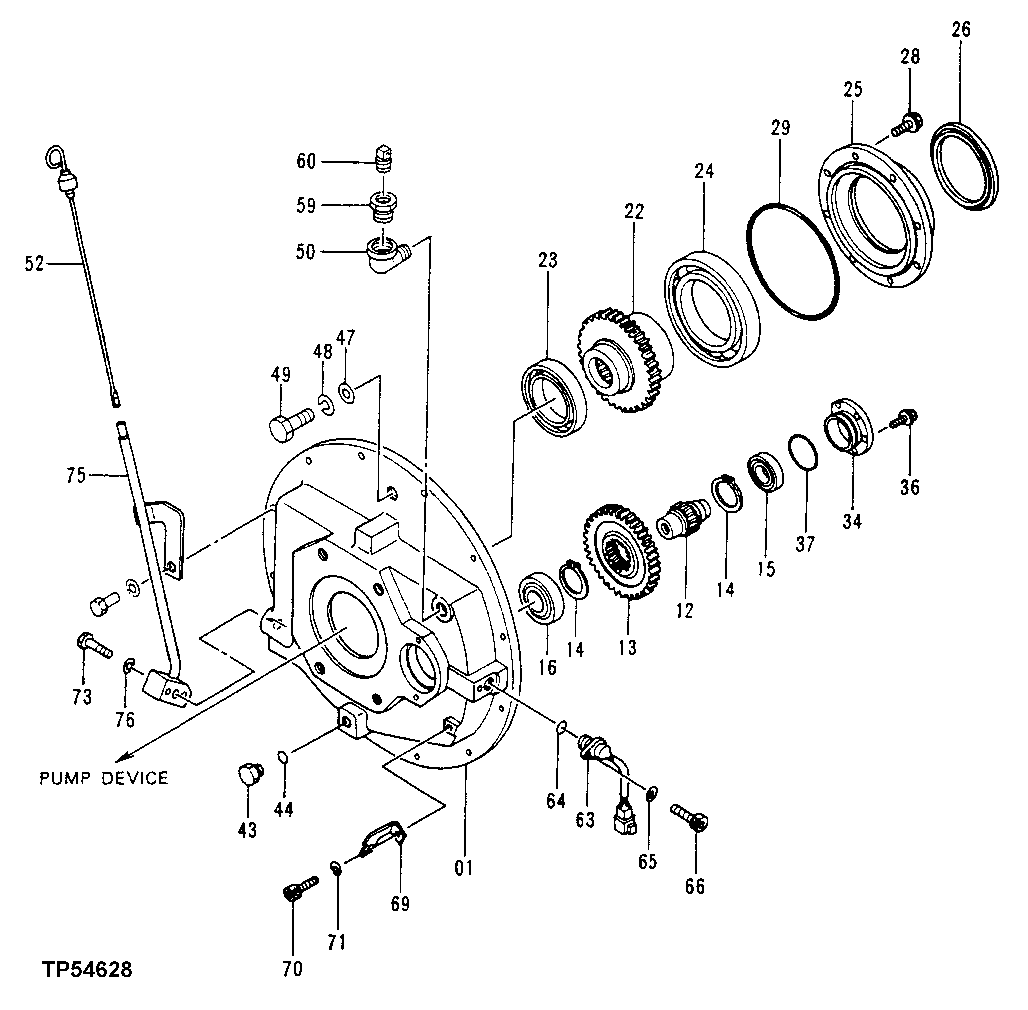

Запчасти John Deere 50LC 177 - Main Hydraulic Pump 2160 Vehicle Hydraulics

1

0001627

Transmission Case

SUB FOR AT201554

1шт.

12

2036485

Splined Coupling

SUB FOR AT201673

1шт.

13

3066320

Gear

SUB FOR AT201698

1шт.

14

40M7047

Snap Ring

2шт.

15

4314081

Bearing

SUB FOR AT201767

1шт.

16

4160767

Ball Bearing

SUB FOR AT202093

1шт.

22

2037331

Gear

SUB FOR AT201672

1шт.

23

AT309590

Ball Bearing

SUB FOR AT202077, 4023595

1шт.

24

AT309592

Ball Bearing

SUB FOR AT201713, 4160775

1шт.

25

2034825

Hub

SUB FOR AT201670

1шт.

26

4310700

Seal

SUB FOR AT201765

1шт.

28

19M7550

Cap Screw

M10 X 35

8шт.

12M7066

Lock Washer

10 mm

8шт.

29

4153562

O-Ring

SUB FOR AT201712

1шт.

34

3067165

Hub

SUB FOR AT201703

1шт.

36

19M7163

Cap Screw

M8 X 25

5шт.

Washer

12M7065 NLA

5шт.

37

TH105683

O-Ring

59.400 X 3.100 mm (2.339" X 0.122")

1шт.

43

4074727

Drain Plug

SUB FOR TH100027

1шт.

44

R77401

O-Ring

19.800 X 2.400 mm (0.780" X 3/32")

1шт.

47

N231749

Washer

20.620 X 38.100 X 6.350 m m (13/16" X 1-1/2" X 1/4")

1шт.

48

12M7070

Lock Washer

20 mm

1шт.

49

19M8543

Cap Screw

M20 X 30

1шт.

50

94-0633

Elbow Fitting

SUB FOR TH101968

1шт.

52

4335289

Level Gauge

SUB FOR AT201804

1шт.

59

J728684

Reducer

SUB FOR TH101811

1шт.

60

4511984

Pipe Plug

SUB FOR TH101812

1шт.

63

4265372

Sensor

SUB FOR AT154297 Engine Speed

1шт.

64

4306888

O-Ring

18.771 X 1.778 mm (0.739" X 0.070") SUB FOR AT154310

1шт.

65

24M7054

Washer

6.400 X 12 X 1.600 mm

1шт.

66

19M8553

Screw

M6 X 16

1шт.

69

4252767

Bracket

SUB FOR AT154206

1шт.

70

0209423

Bolt

SUB FOR TH100738

1шт.

71

12M7133

Lock Washer

6 mm SUB FOR 12M7129

1шт.

73

19M7935

Cap Screw

M10 X 55

2шт.

75

8058572

Oil Tube

SUB FOR AT201908

1шт.

76

12M7066

Lock Washer

10 mm

2шт.
