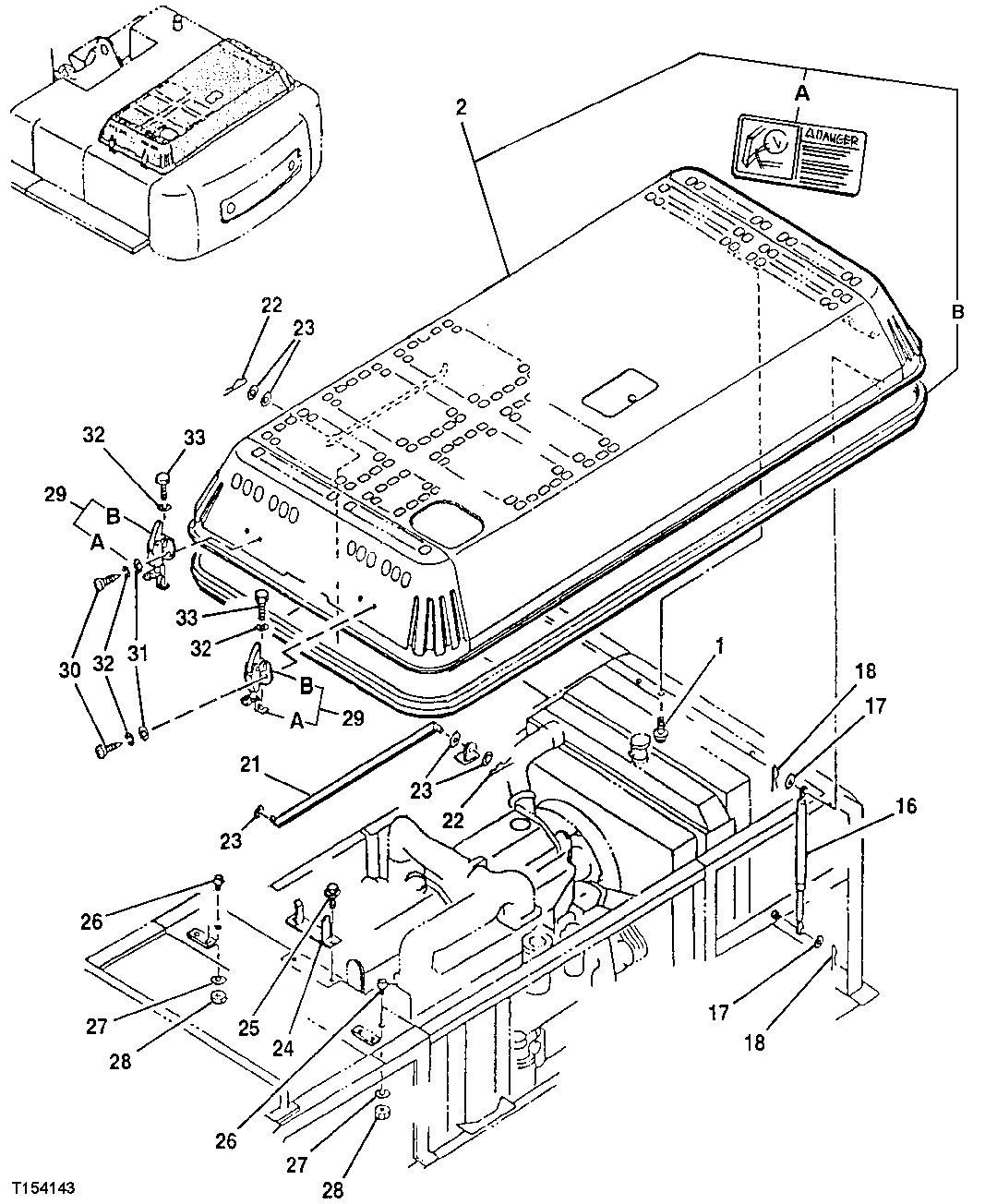

Запчасти John Deere 50LC 173 - Engine Cover 1910 Hood Or Engine Enclosure

1

19M7496

Cap Screw

M12 X 45

4шт.

2

AT185020

Cover

SUB FOR AT201837; USE IF AVAILABLE; I F AT201837 NOT AVAILABLE, SUB AT185020

1шт.

5006318

Cover

SUB FOR AT185020

1шт.

2A

2042309

Label

Caution USE W/ AT201837 OR AT185020; SUB FOR T164032

1шт.

2B

4369909

Isolator

Single Tube Seal RUBBER SEAL ; USE W/ AT201837 OR AT185020

1шт.

4700573

Isolator

Double Tube Seal SUB FOR 4335883

1шт.

16

4344047

Cylinder

SUB FOR AT202398

2шт.

17

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

18

H132922

Cotter Pin

4шт.

21

7035849

Cover

SUB FOR 9737340; USE IF AVAILABLE; IF 9737340 NOT AVAILABLE, SUB 9751 808, AT185020, 7035848, AND 7035849

1шт.

9751808

Bracket

SUB FOR AT185021

1шт.

22

M40461

Spring Locking Pin

SUB FOR TH100590

2шт.

23

24M7053

Washer

17 X 30 X 3 mm

5шт.

24

8061461

Bracket

SUB FOR AT202399

1шт.

25

12M7058

Lock Washer

12 mm SUB FOR 12M7067

2шт.

19M8011

Cap Screw

M12 X 30

2шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

2шт.

26

4294508

Bumper

SUB FOR AT201032

2шт.

27

12M7066

Lock Washer

10 mm

2шт.

28

14M7274

Nut

M10

2шт.

29

Catch

AT131937 NLA

2шт.

29A

3074568

Catch

SUB FOR AT131654

1шт.

AT194969

Key

SUB FOR AT147803; H800 Not Illustrated

1шт.

29B

3021131

Anchor

SUB FOR TH102247

1шт.

30

21M7397

Screw

M8 X 25

4шт.

31

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

32

Washer

12M7065 NLA

8шт.

33

19M7932

Cap Screw

M8 X 16

4шт.
