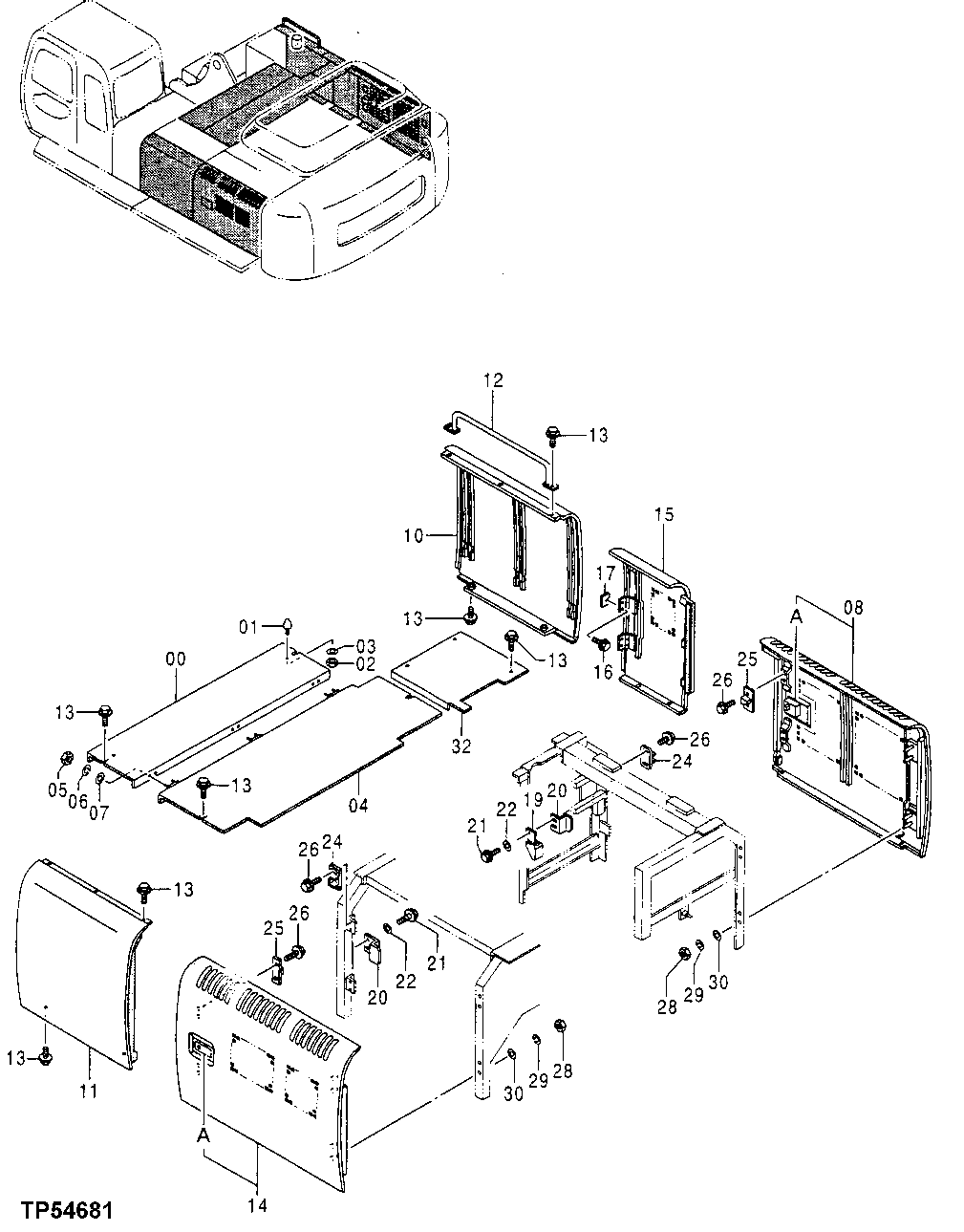

Запчасти John Deere 50LC 170 - Cover 1910 Hood Or Engine Enclosure

0

8067613

Cover

SUB FOR AT217029

1шт.

1

4204586

Bumper

SUB FOR TH108668

2шт.

2

14M7274

Nut

M10

2шт.

3

12M7066

Lock Washer

10 mm

2шт.

4

7035849

Cover

SUB FOR AT217014; USE IF AVAILABLE; I F AT217014 NOT AVAILABLE, SUB AT184714

1шт.

7035849

Cover

SUB FOR AT184714

1шт.

5

14M7273

Nut

M8

6шт.

6

Washer

12M7065 NLA

6шт.

7

24M7055

Washer

8.400 X 16 X 1.600 mm

6шт.

8

5005265

Door

SUB FOR AT178193

1шт.

8A

4361763

Lock

SUB FOR AT214010

1шт.

10

6016276

Cover

SUB FOR AT217007

1шт.

11

6016270

Cover

SUB FOR AT217006

1шт.

12

9747821

Handrail

SUB FOR AT217042

1шт.

13

12M7058

Lock Washer

12 mm SUB FOR 12M7067

17шт.

19M8011

Cap Screw

M12 X 30

17шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

17шт.

14

5005267

Door

SUB FOR AT178192

1шт.

14A

4361766

Latch

SUB FOR AT217114

1шт.

15

6014545

Door

ALSO ORDER 8068893; SUB FOR AT202362

1шт.

16

19M8011

Cap Screw

M12 X 30

4шт.

12H301

Lock Washer

1/2"

4шт.

24M7047

Washer

13 X 24 X 2.500 mm

4шт.

17

4345838

Shim

SUB FOR AT202357

4шт.

19

4335210

Bracket

SUB FOR AT201802

1шт.

20

4335211

Stop

SUB FOR AT201803

2шт.

21

19M7550

Cap Screw

M10 X 35

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7346

Washer

11 X 20 X 2 mm

4шт.

22

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

24

4175253

Bracket

SUB FOR AT318015, AT154915

4шт.

25

4175254

Stop

SUB FOR AT154916

4шт.

4411508

Bumper

SUB FOR AT184717

4шт.

26

19M7923

Cap Screw

M6 X 12

16шт.

12M7006

Lock Washer

6 mm

16шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

16шт.

28

14M7275

Nut

M12

8шт.

29

12H301

Lock Washer

1/2"

8шт.

30

24M7047

Washer

13 X 24 X 2.500 mm

8шт.

32

8068893

Cover

SUB FOR AT217033

1шт.
