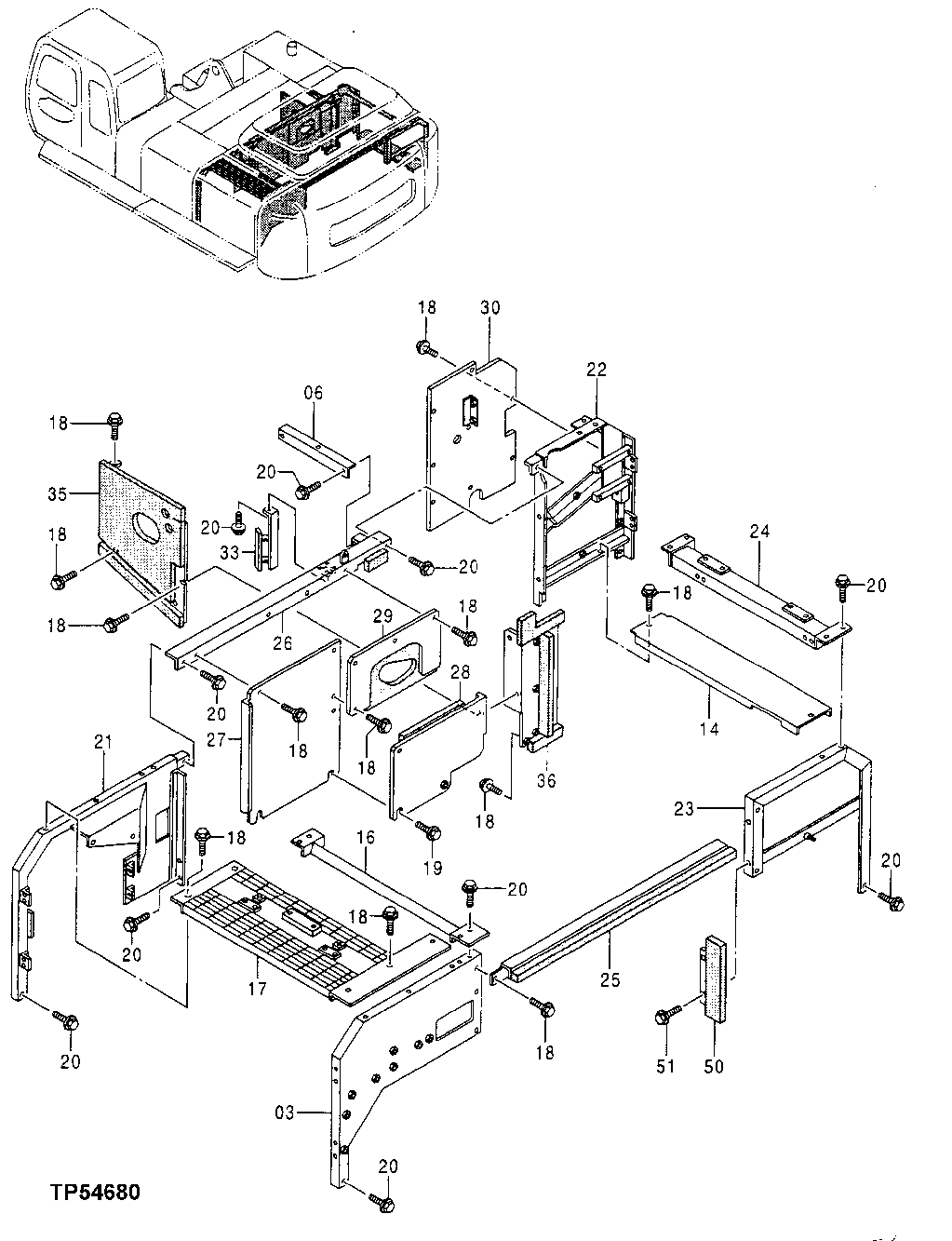

Запчасти John Deere 50LC 169 - Cover 1910 Hood Or Engine Enclosure

3

7032751

Support

(SUB FOR AT217018)

1шт.

6

9742676

Support

(SUB FOR AT201953)

1шт.

14

8059740

Cover

(SUB FOR AT201917)

1шт.

16

8059777

Support

(SUB FOR AT201920)

1шт.

17

7032758

Cover

(SUB FOR AT217019)

1шт.

18

24H1748

Washer

1/2" X 1-1/4" X 0.105"

33шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

33шт.

19M8011

Cap Screw

M12 X 30

33шт.

19

19M7872

Cap Screw

M12 X 25

1шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

1шт.

24M7180

Washer

13 X 37 X 3 mm

1шт.

20

19M8011

Cap Screw

M12 X 30

22шт.

12H301

Lock Washer

1/2"

22шт.

24M7047

Washer

13 X 24 X 2.500 mm

22шт.

21

7033091

Support

(SUB FOR AT217021)

1шт.

22

7033093

Support

(SUB FOR AT217022)

1шт.

23

7033098

Support

(SUB FOR AT217023)

1шт.

24

8069261

Support

(SUB FOR AT217038)

1шт.

25

8068900

Support

(SUB FOR AT217034)

1шт.

26

7035849

Cover

(SUB FOR AT217024) (USE IF AVAILABLE) (IF AT217024 NOT AVAILABLE, SUB AT185 019, AT184714, AT185020, AND AT185021)

1шт.

7035848

Support

(SUB FOR AT185019)

1шт.

27

7032160

Cover

(SUB FOR AT217011)

1шт.

28

8066922

Cover

(SUB FOR AT217026)

1шт.

29

8068913

Cover

(SUB FOR AT217035)

1шт.

30

8068914

Cover

(SUB FOR AT217036)

1шт.

33

8068917

Bracket

(SUB FOR AT217037)

1шт.

35

7033237

Cover

(SUB FOR AT217025)

1шт.

36

7033241

Cover

(SUB FOR AT217157)

1шт.

50

9742867

Cover

(SUB FOR AT202381)

1шт.

51

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

19M8011

Cap Screw

M12 X 30

2шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

2шт.
