Запчасти John Deere 50LC 165 - Rear Tray 1830 Heating & Air Conditioning

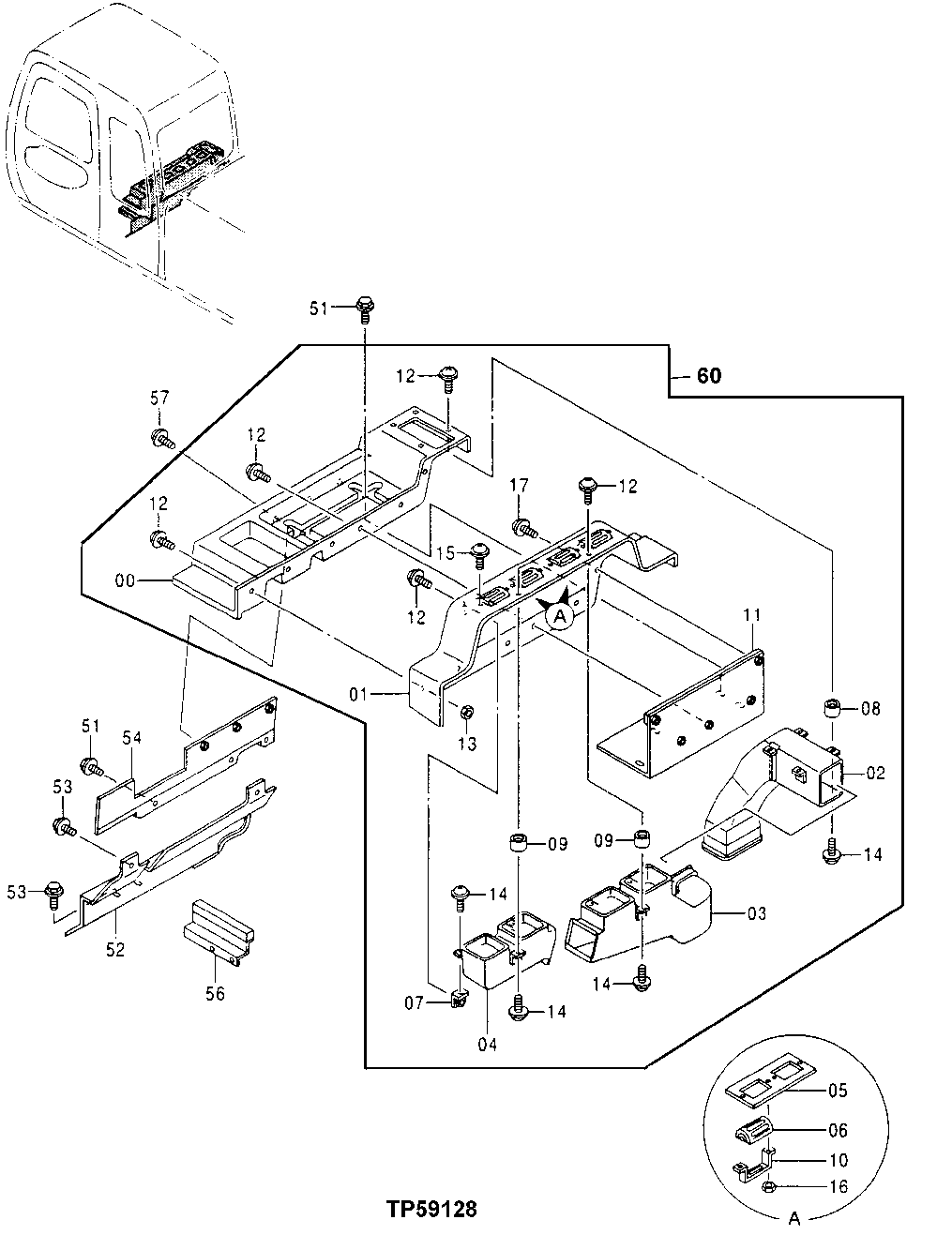

Схема запчастей John Deere 50LC - 165 - Rear Tray 1830 Heating & Air Conditioning

Артикул

Название

Примечание

Количество

0

0002795

Tray

SUB FOR AT215476

1шт.

1

1022600

Cover

SUB FOR AT215478

1шт.

2

4350235

Air Duct

SUB FOR AT213936

1шт.

3

4350236

Air Duct

SUB FOR AT213937

1шт.

4

4350237

Air Duct

SUB FOR AT213938

1шт.

5

4370844

Cushion

SUB FOR AT215535

2шт.

6

4370836

Louver

SUB FOR AT215534

4шт.

7

9747560

Bracket

SUB FOR AT215614

4шт.

8

4378361

Bushing

SUB FOR AT215556

4шт.

9

4378362

Bushing

SUB FOR AT215557

2шт.

10

4383254

Bracket

SUB FOR AT215567

4шт.

11

8067574

Bracket

SUB FOR AT215602

1шт.

12

21M7285

Screw

M6 X 12 SUB FOR AT215471 AND J680612

16шт.

12M7006

Lock Washer

6 mm

16шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

16шт.

13

14M7272

Nut

M6

3шт.

14

24M7054

Washer

6.400 X 12 X 1.600 mm

10шт.

15

J680410

Screw With Washer

SUB FOR AT213608

8шт.

16

14M7139

Nut

M4

8шт.

17

21M7246

Screw

M6 X 16

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7105

Washer

6 X 12 X 1.600 mm

2шт.

51

19M7866

Screw

M8 X 20 SUB FOR AT213603 OR J0508 20, ALONG WITH 24M7036 AND 12M7065

6шт.

24M7036

Washer

9 X 16 X 1.600 mm

6шт.

Washer

12M7065 NLA

6шт.

52

6016127

Cover

SUB FOR AT215112

1шт.

53

19M7881

Screw

M8 X 20

4шт.

Washer

12M7065 NLA

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

54

8068043

Bracket

SUB FOR AT215122

1шт.

56

8067575

Bracket

SUB FOR AT215119

1шт.

57

21M7285

Screw

M6 X 12 SUB FOR AT215471 AND J680612

3шт.

12M7006

Lock Washer

6 mm

3шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

3шт.

60

9159271

Tray

SUB FOR AT250253

1шт.

Выбрано товаров: 35
