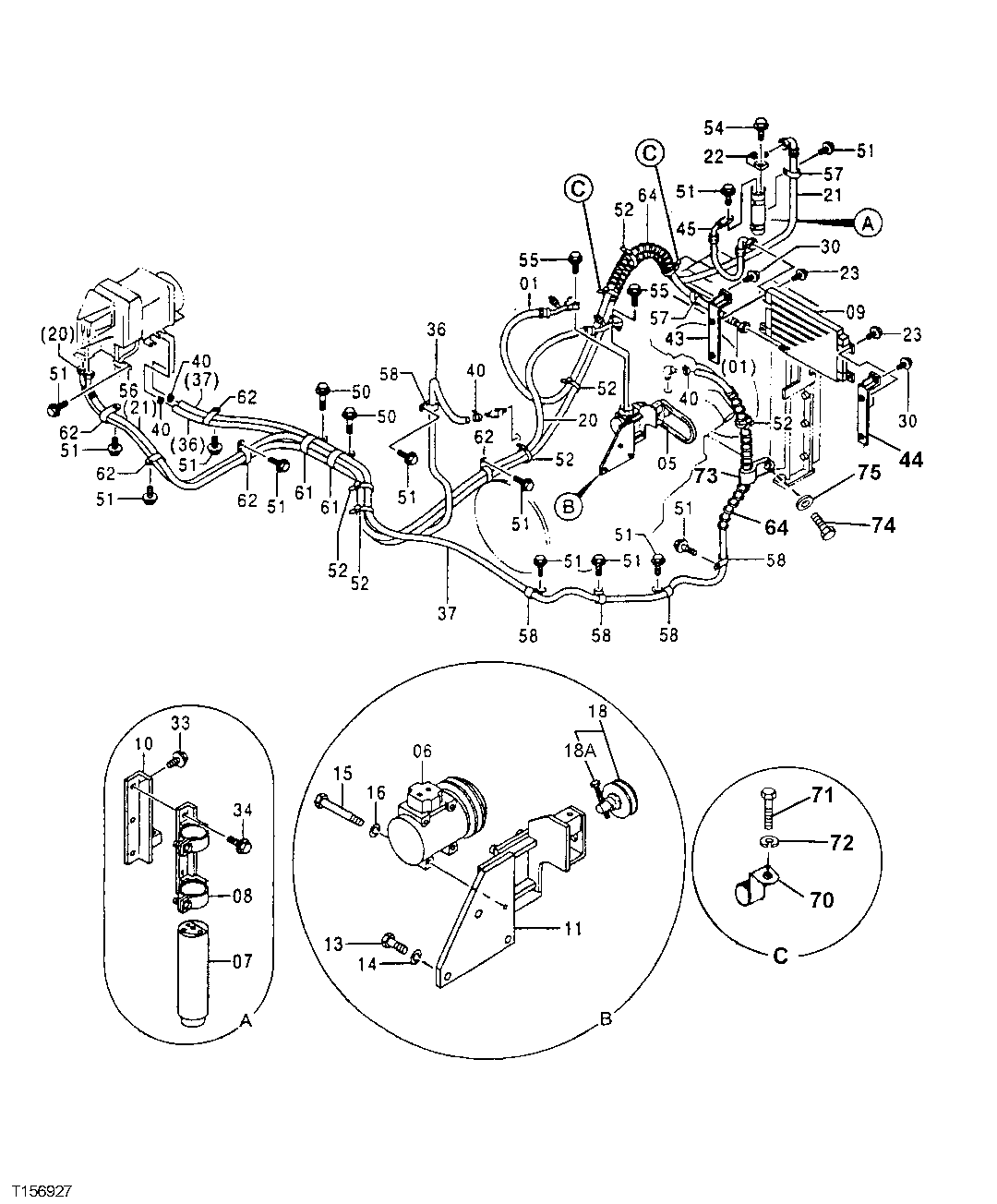

Запчасти John Deere 50LC 156 - Air Conditioner 1830 Heating & Air Conditioning

1

4354985

Hose

SUB FOR AT217111

1шт.

5

4661031

V-Belt

SUB FOR AT215493 OR 4235487 AND AT332521

1шт.

6

4333459

Compressor

SUB FOR AT215510

1шт.

7

4333461

Tank

SUB FOR AT215511

1шт.

8

4333462

Support

SUB FOR AT215512

1шт.

10

8068597

Bracket

SUB FOR AT217032

1шт.

11

7032960

Bracket

SUB FOR AT217020

1шт.

13

19H2717

Cap Screw

3/4" X 1-3/4"

3шт.

14

12H236

Lock Washer

3/4"

3шт.

15

J900804

Cap Screw

SUB FOR AT215473

4шт.

16

Washer

12M7065 NLA

4шт.

18

4346770

Pulley

SUB FOR AT213915

1шт.

18A

4451204

Bolt

1шт.

20

4380472

Hydraulic Hose

SUB FOR AT216994

1шт.

21

4380467

Hydraulic Hose

SUB FOR AT216993

1шт.

22

4374958

Adapter Fitting

SUB FOR AT217131; SUB FOR AT181084

1шт.

30

19M7662

Cap Screw

M10 X 30

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

33

12M7058

Lock Washer

12 mm SUB FOR 12M7067

2шт.

19M8011

Cap Screw

M12 X 30

2шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

2шт.

34

19M7881

Screw

M8 X 20

2шт.

Washer

12M7065 NLA

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

36

Hose

MF TY22328 CTL Bulk Material

1шт.

37

Hose

MF TY22328 CTL Bulk Material

1шт.

40

WZ2141223

Hose Clamp

SUB FOR AA34965

4шт.

43

Bracket

8060067 NLA; SUB 8081424

1шт.

44

Bracket

8060068 NLA; SUB 8081424

1шт.

45

4339691

Hose

SUB FOR AT217096

1шт.

50

19M8761

Screw

M10 X 22

2шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

2шт.

51

19M8761

Screw

M10 X 22

12шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

12шт.

52

H77698

Tie Band

17шт.

54

19M7933

Cap Screw

M6 X 25

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

55

19M7874

Cap Screw

M6 X 30

2шт.

12H302

Lock Washer

1/4"

2шт.

56

T32854

Clamp

1шт.

57

T24432

Clamp

2шт.

58

R72659

Clamp

SUB FOR AT122384 OR 4235654

ARшт.

61

R134002

Clamp

SUB FOR TH111255; SUB FOR 4193816

2шт.

62

R50454

Clamp

SUB FOR TH109445 OR 4192034

5шт.

64

Hose Guard

MF XHG075 CTL; SUB FOR AT138222 Bulk Material

6шт.

70

H77698

Tie Band

2шт.

R72659

Clamp

SUB FOR AT122384 OR 4235654

2шт.

71

19M8324

Cap Screw

M10 X 16

2шт.

72

12M7066

Lock Washer

10 mm

2шт.

73

H77698

Tie Band

1шт.

R50454

Clamp

SUB FOR TH109445 OR 4192034

1шт.

74

19M8324

Cap Screw

M10 X 16

1шт.

75

12M7066

Lock Washer

10 mm

1шт.
