Запчасти John Deere 50LC 122 - LOWER MONITOR COVER 1810 Operator Enclosure

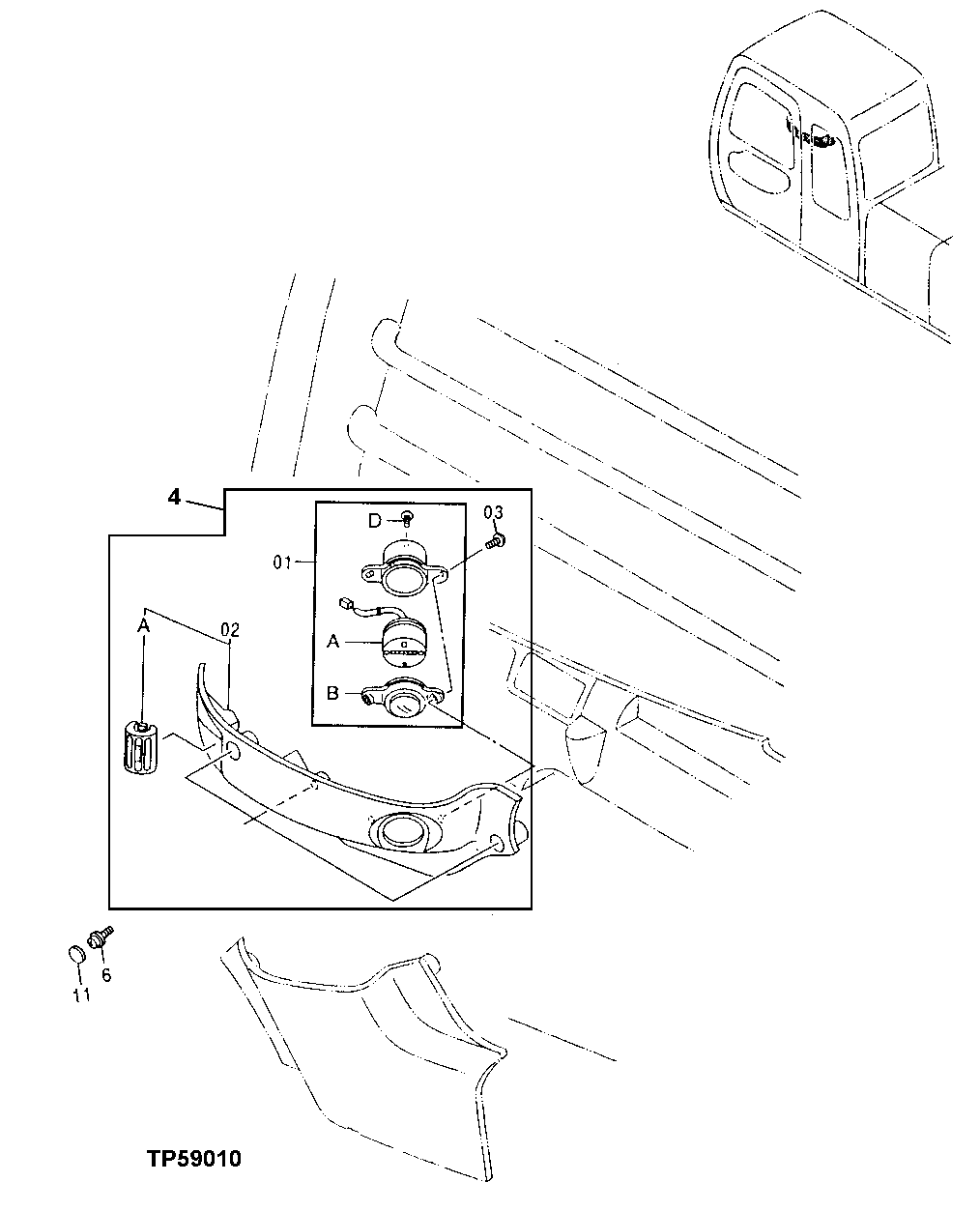

Схема запчастей John Deere 50LC - 122 - LOWER MONITOR COVER 1810 Operator Enclosure

Артикул

Название

Примечание

Количество

1

4370312

Hour Meter

(SUB FOR AT214258)

1шт.

1A

4370313

Hour Meter

(SUB FOR AT214259)

1шт.

1B

4370314

Lens

(SUB FOR AT214260)

1шт.

1D

4335441

Screw

(SUB FOR AT213934) (SUB FOR 4349998)

3шт.

2

4370316

Cover

(SUB FOR AT214261)

1шт.

2A

4370317

Louver

(SUB FOR AT214262)

1шт.

3

T116079

Screw

(SUB FOR AT155616) (SUB FOR 4297101)

2шт.

4

4350245

Cover

(SUB FOR AP34402)

1шт.

6

19M8425

Cap Screw

M6 X 16

3шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

3шт.

12M7006

Lock Washer

6 mm

3шт.

11

4350779

Cap

(SUB FOR AT213950)

3шт.

Выбрано товаров: 12
