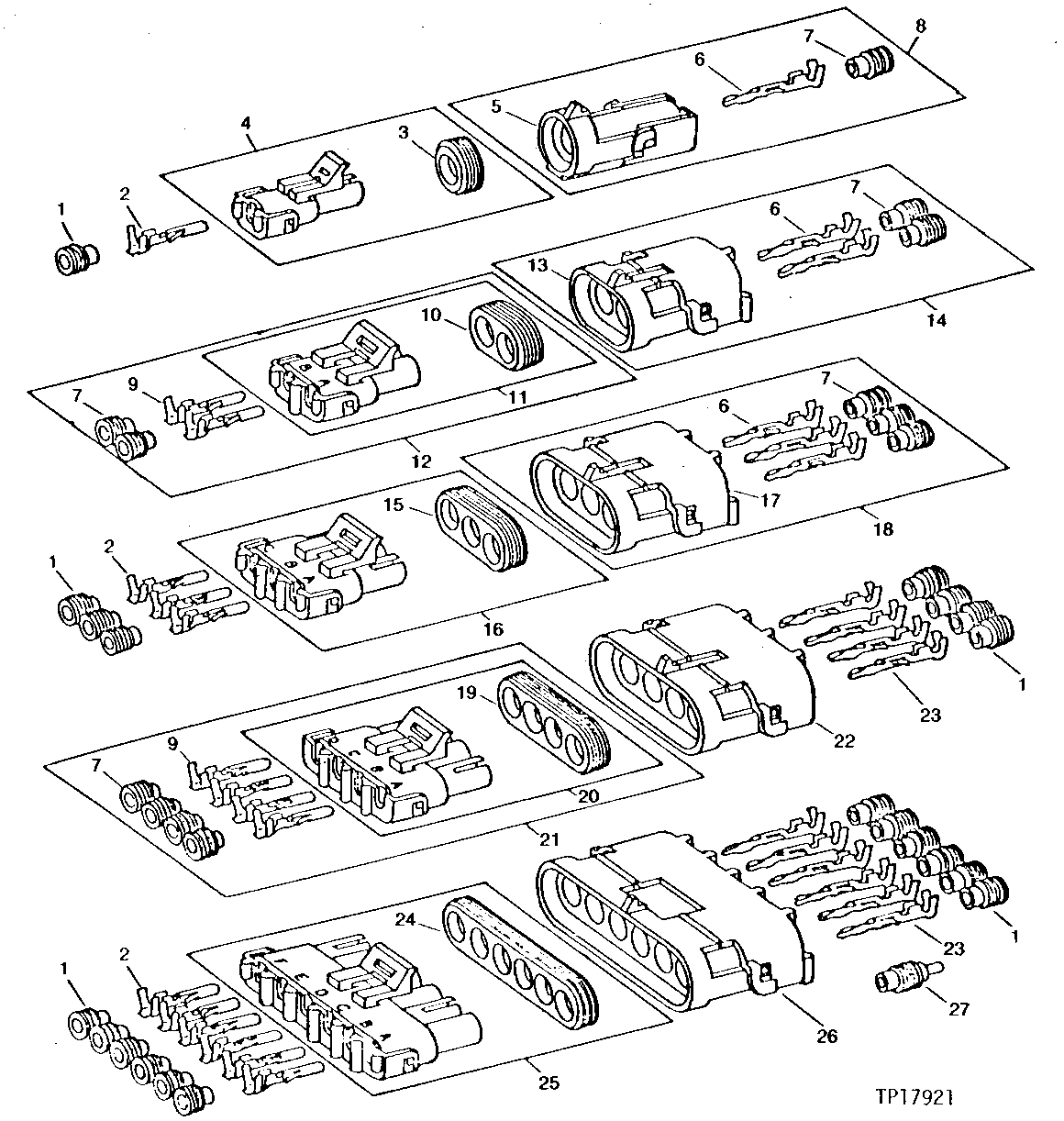

Запчасти John Deere 50LC 112 - Weatherpack Terminals and Connectors 1674 Wiring Harness And Switches

1

R78063

Elec. Connector Seal

16 GA. WIRE, (PKG. OF 40) Gray

1шт.

R78059

Electrical Connector Assy

18 OR 20 GA. WIRE, (PKG. OF 40) Green

1шт.

R78062

Elec. Connector Seal

14 GA. WIRE, (PKG. OF 40) Blue

1шт.

2

R78057

Elec. Connector Terminal

18 OR 20 GA. WIRE, (PKG. OF 40) (NO. 19)

1шт.

R78060

Elec. Connector Terminal

14 OR 16 GA. WIRE, (PKG. OF 40) (NO. 15)

1шт.

3

R78047

Seal

(PKG. OF 5)

1шт.

4

RE12362

Electrical Connector Assy

(PKG. OF 3)

1шт.

5

R78052

Electrical Connector Assy

(PKG. OF 3)

1шт.

6

R78061

Elec. Connector Terminal

14 OR 16 GA. WIRE, (PKG. OF 40) (NO. 15)

1шт.

7

R78063

Elec. Connector Seal

16 GA. WIRE, (PKG. OF 40) Gray

1шт.

8

RE12334

Electrical Connector Assy

1шт.

9

R78060

Elec. Connector Terminal

14 OR 16 GA. WIRE, (PKG. OF 40) (NO. 15)

1шт.

10

R78048

Elec. Connector Accessory

(PKG. OF 5)

1шт.

11

RE12363

Elec. Connector Terminal

(PKG. OF 3)

1шт.

12

RE12331

Electrical Connector Assy

1шт.

13

R78053

Electrical Connector Assy

(PKG. OF 3)

1шт.

14

RE12330

Electrical Connector Assy

1шт.

15

R78049

Seal

(PKG. OF 5)

1шт.

16

RE12364

Electrical Connector Assy

(PKG. OF 3)

1шт.

17

R78054

Electrical Connector Assy

(PKG. OF 3)

1шт.

18

RE12332

Electrical Connector Assy

1шт.

19

R78050

Seal

(PKG. OF 5)

1шт.

20

RE12365

Electrical Connector Assy

(PKG. OF 2)

1шт.

21

RE12333

Electrical Connector Assy

1шт.

22

R78055

Electrical Connector Assy

(PKG. OF 2)

1шт.

23

R78061

Elec. Connector Terminal

14 OR 16 GA. WIRE, (PKG. OF 40) (NO. 15)

1шт.

R78058

Electrical Connector Assy

18 OR 20 GA. WIRE, (PKG. OF 40) (NO. 19)

1шт.

24

R78051

Seal

(PKG. OF 5)

1шт.

25

RE12366

Electrical Connector Assy

(PKG. OF 2)

1шт.

26

R78056

Electrical Connector Assy

(PKG. OF 2)

1шт.

27

R78064

Elec. Connector Cavity Plug

(PKG. OF 40)

1шт.
