Запчасти John Deere 50LC 1 - Track Frame 0130 Track Systems

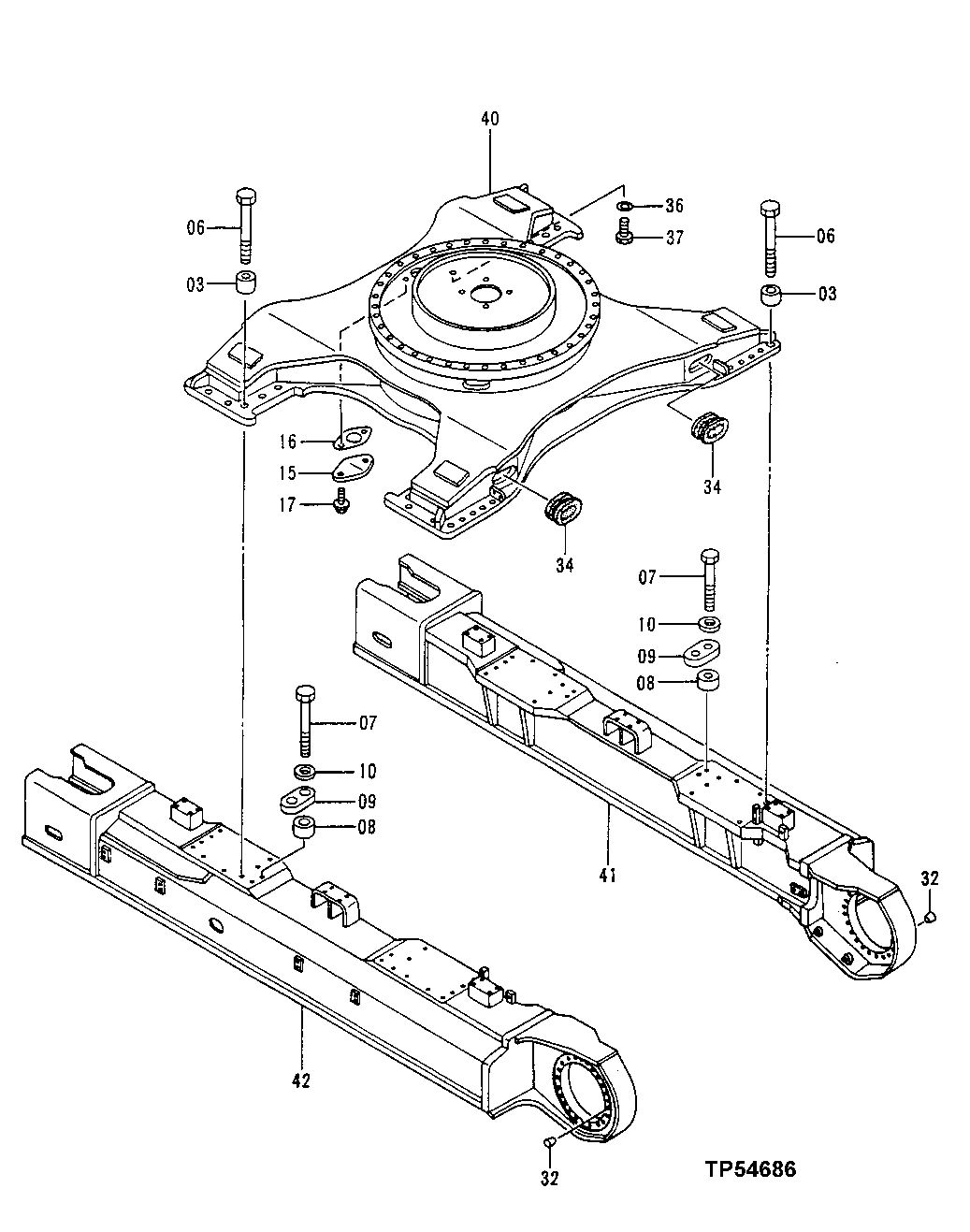

Схема запчастей John Deere 50LC - 1 - Track Frame 0130 Track Systems

Артикул

Название

Примечание

Количество

3

4320218

Spacer

33.500 X 60 X 56 mm (1.319" X 2. 362" X 2.205") (SUB FOR AT201770)

36шт.

6

J833310

Bolt

(SUB FOR AT201552)

36шт.

7

J833305

Bolt

(SUB FOR AT201551)

8шт.

8

4269567

Spacer

33.500 X 80 X 49 mm (1.319" X 3. 150" X 1.929") (SUB FOR AT201730)

8шт.

9

4269566

Strap

(SUB FOR AT201729)

4шт.

10

4083438

Washer

34 X 60 X 9 mm (1.339" X 2.362 " X 0.354") (SUB FOR AT202297)

8шт.

15

4013896

Cover

(SUB FOR TH100633)

1шт.

16

4244172

Gasket

(SUB FOR AT202301)

1шт.

17

19M7938

Cap Screw

M10 X 20

2шт.

12M7066

Lock Washer

10 mm

2шт.

32

99M7010

Plug

(SUB FOR TH109402)

4шт.

34

4268503

Grommet

(SUB FOR AT201726)

2шт.

36

24M7053

Washer

17 X 30 X 3 mm

1шт.

37

19M7394

Cap Screw

M16 X 25 (SUB FOR AT202272 AND J901625)

1шт.

40

Frame

( AT201833 NLA)

1шт.

41

AT216989

Frame

(CONVENIENCE ASSEMBLY)

1шт.

42

AT216990

Frame

(CONVENIENCE ASSEMBLY)

1шт.

Выбрано товаров: 17
