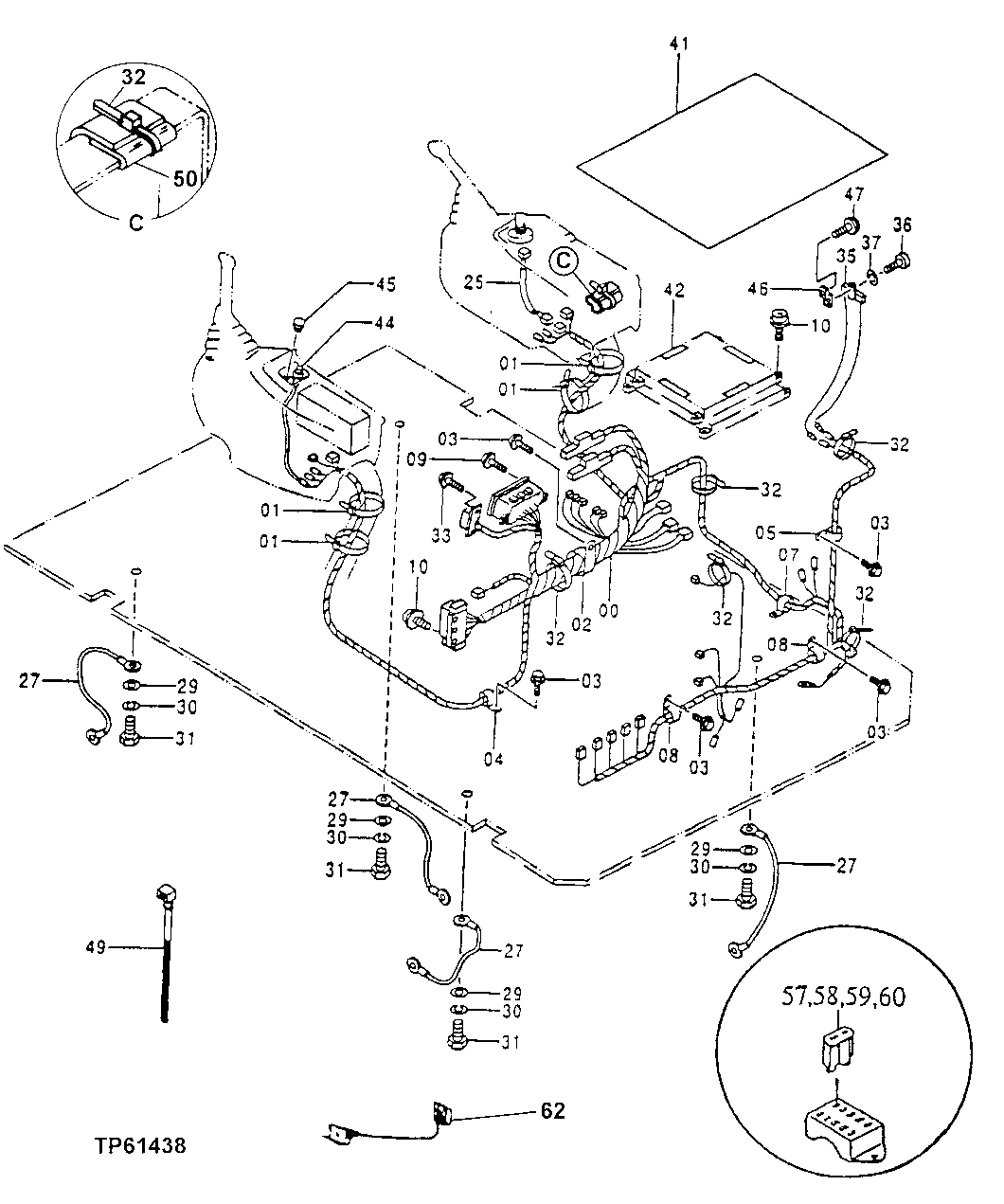

Запчасти John Deere 50LC 101 - Console Wiring Harness 1674 Wiring Harness And Switches

0

0002785

Wiring Harness

(SUB FOR AT216958)

1шт.

4288109

Diode

3 AMP - YELLOW, (SUB FOR AT174465) Not Illustrated

1шт.

1

H77698

Tie Band

4шт.

2

XCL-29

Hose Clamp

(SUB FOR TH110522 OR 4193848)

1шт.

3

19M7402

Cap Screw

M10 X 25

5шт.

12M7066

Lock Washer

10 mm

5шт.

24M7028

Washer

10.500 X 20 X 2 mm

5шт.

4

4190275

Clamp

(SUB FOR TH108598)

1шт.

5

R73384

Clamp

(SUB FOR TH108597 OR 4190253)

1шт.

7

XCL-19

Hose Clamp

(SUB FOR TH108459 OR 4192035)

1шт.

8

T28949

Clamp

(SUB FOR TH108460 OR 4190273)

2шт.

9

19M7077

Cap Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

10

Screw With Washer

( J460620 NLA) (SUB FOR AT200012)

10шт.

21M7267

Screw

M6 X 20

10шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

10шт.

12M7006

Lock Washer

6 mm

10шт.

25

4277927

Wiring Harness

(SUB FOR AT154955) Starter Switch

1шт.

27

Wiring Harness

Ground Strap

4шт.

29

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

30

12M7066

Lock Washer

10 mm

4шт.

31

19M8324

Cap Screw

M10 X 16

4шт.

32

H77698

Tie Band

6шт.

33

Screw

(SUB FOR AT156974)( J460310 NLA)

2шт.

21M7394

Screw

M3 X 10

1шт.

24H1914

Washer

1/8" X 5/16" X 0.032"

1шт.

12H233

Lock Washer

1/8"

1шт.

35

4191772

Resistor

(SUB FOR AT155250) Alternator Exitation

1шт.

36

4204811

Screw

(SUB FOR AT155253)

1шт.

37

12H315

Lock Washer

0.164" (SUB FOR 12M7063)

1шт.

41

3075379

Cover

(SUB FOR AT213792)

1шт.

42

4365396

Tape

(SUB FOR AT214022)

4шт.

44

4384758

Switch

Travel Alarm Switch (SUB FOR AT215573)

1шт.

45

4294437

Cap

(SUB FOR AT215503)

1шт.

46

4379070

Strap

(SUB FOR AT215559)

1шт.

47

21M7246

Screw

M6 X 16

1шт.

12M7006

Lock Washer

6 mm

1шт.

24M7105

Washer

6 X 12 X 1.600 mm

1шт.

49

H77698

Tie Band

5шт.

50

4403273

Isolator

(SUB FOR AT184358)

1шт.

57

57M7329

Fuse

Black

4шт.

58

57M7125

Fuse

Tan

7шт.

59

57M7121

Fuse

Red

4шт.

60

57M7120

Fuse

Yellow

4шт.

4421250

Fuse Box

1шт.

4378586

Cover

1шт.

62

Wiring Harness

9 FT EXTENSION, To Cab C onnector ( AT179050 NLA)

1шт.

AT179051

Wiring Harness

15 FT EXTENSION, To Cab Connector

1шт.
