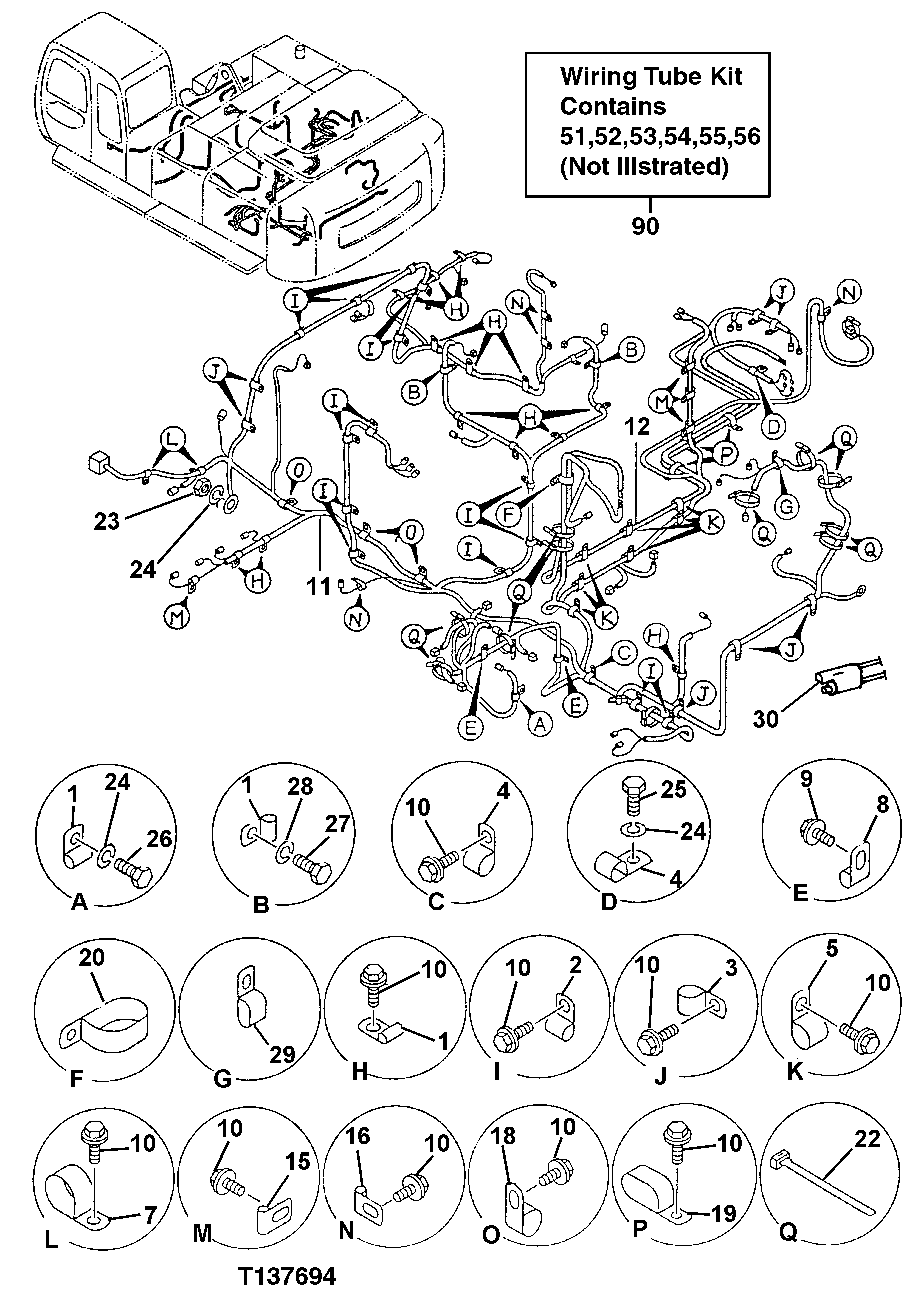

Запчасти John Deere 50LC 99 - Main Wiring Harness 1674 Wiring Harness And Switches

1

4190261

Clip

(SUB FOR TH109649)

18шт.

2

4190275

Clamp

(SUB FOR TH108598)

13шт.

3

T28949

Clamp

(SUB FOR TH108460 OR 4190273)

8шт.

4

T28949

Clamp

(SUB FOR TH108458 OR 4190274)

2шт.

5

R72659

Clamp

(SUB FOR AT122384 OR 4235654)

7шт.

7

XCL-29

Hose Clamp

(SUB FOR TH110522 OR 4193848)

2шт.

8

R73384

Clamp

(SUB FOR TH108597 OR 4190253)

2шт.

9

19M7872

Cap Screw

M12 X 25

1шт.

12H301

Lock Washer

1/2"

1шт.

10

19M8761

Screw

M10 X 22

55шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

55шт.

11

0002786

Wiring Harness

Includes Hydraulic Pump Wiri ng Harness (SUB FOR AT216959)

1шт.

AT167165

Wiring Harness

Auxiliary Solenoid Control Valve

2шт.

4315323

Fuse

45 Amp, (FUSABLE LINK) (COMPONENT OF MAIN WIRE HARNESS LOCATED NEAR F UEL SHUT-OFF RELAY) Not Illustrated

1шт.

4315324

Link

75 Amp, (FUSABLE LINK) (COMPONENT OF MAIN WIRE HARNESS LOCATED NEAR F UEL SHUT-OFF RELAY) Not Illustrated

1шт.

4374532

Diode

(COMPONENT OF MAIN WIRE HARNESS) (PLAS TIC CONNECTOR CONTAINS 5 DIODES) (1-KEY SWITCH, 1-SWING STOP CUSHION SOLENOID, 1-GRIP SOLENOID, 1-FUEL SHUTOFF SOLENOI D, 1-OPTIONAL EQUIPMENT) Not Illustrate d

1шт.

12

4338517

Jumper

(SUB FOR AT201815) Starter To Battery Relay

1шт.

15

T38377

Clamp

4шт.

16

T30367

Clamp

4шт.

18

AT121321

Hose Clamp

3шт.

19

R50454

Clamp

(SUB FOR TH109445 OR 4192034)

3шт.

20

N198631

Clamp

(SUB FOR TH109598 OR 4190265)

1шт.

22

H77698

Tie Band

15шт.

23

14M7274

Nut

M10

1шт.

24

12M7066

Lock Washer

10 mm

3шт.

25

19M7938

Cap Screw

M10 X 20

1шт.

26

19M8451

Cap Screw

M10 X 14

1шт.

27

19M8017

Cap Screw

M12 X 20

2шт.

28

12H301

Lock Washer

1/2"

2шт.

29

4192018

Clip

(SUB FOR TH110498)

1шт.

30

AT172578

Wiring Harness

(DIODE) (USED TO PROTECT AGAINST VOLTAGE SPIKES) (SEE DTAC SOLUTI ON FOR REPAIR KIT AND CONNECTORS)

1шт.

51

Structural Tube

(K) 7 mm Diameter, 5 m Long , (FLAME AND HEAT RESTANT)

1шт.

52

Structural Tube

(K) 10 mm Diameter, 5 m Long , (FLAME AND HEAT RESISTANT)

1шт.

53

Structural Tube

(K) 13 mm Diameter, 3 m Long , (FLAME AND HEAT RESISTANT)

1шт.

54

Structural Tube

(K) 19 mm Diameter, 3 m Long , (FLAME AND HEAT RESISTANT)

1шт.

55

Tape

(K) Heat Resistant

1шт.

56

Tie Band

(K)

10шт.

90

4425865

Wiring Harness

Includes All Parts Marked (K) Wire Harness (SUB FOR AT186651)

1шт.
