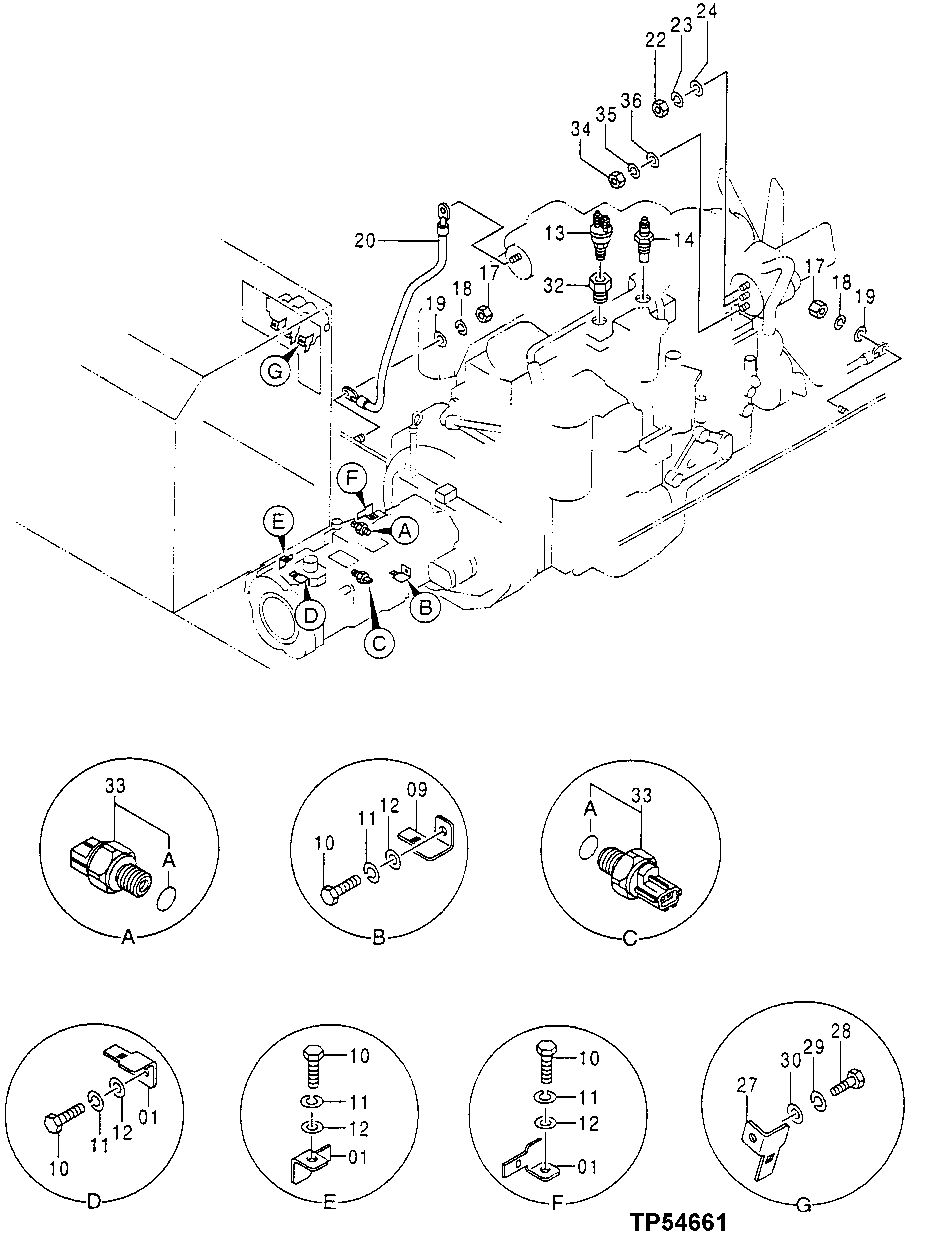

Запчасти John Deere 50LC 95 - Electric Components 1674 Wiring Harness And Switches

1

4252767

Bracket

SUB FOR AT154206

3шт.

9

4336874

Bracket

SUB FOR AT202391

1шт.

10

19M7923

Cap Screw

M6 X 12

4шт.

11

12M7006

Lock Washer

6 mm

4шт.

12

24M7054

Washer

6.400 X 12 X 1.600 mm

4шт.

13

4382073

Switch

SUB FOR AT178166; ENGINE THERMO

1шт.

14

4283926

Sender

SUB FOR AT147302 Water Temperature

1шт.

17

14M7274

Nut

M10

2шт.

18

12M7066

Lock Washer

10 mm

2шт.

19

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

20

4338518

Jumper

SUB FOR AT201816

1шт.

22

14M7297

Nut

M5

2шт.

23

12M7064

Lock Washer

5 mm

2шт.

24

24M7027

Washer

5.300 X 10 X 1 mm

2шт.

27

4252767

Bracket

SUB FOR AT154206

3шт.

28

19M7923

Cap Screw

M6 X 12

3шт.

29

12M7006

Lock Washer

6 mm

3шт.

30

24M7054

Washer

6.400 X 12 X 1.600 mm

3шт.

32

4087499

Adapter Fitting

SUB FOR AT202394

1шт.

33

4436271

Sensor

SUB FOR AT175981 OR 4355012 Pressure

2шт.

33A

TH102560

O-Ring

15.800 X 2.400 mm (0.622" X 3/32") SUB FOR AT175984

1шт.

34

14M7273

Nut

M8

1шт.

35

Washer

12M7065 NLA

1шт.

36

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.
