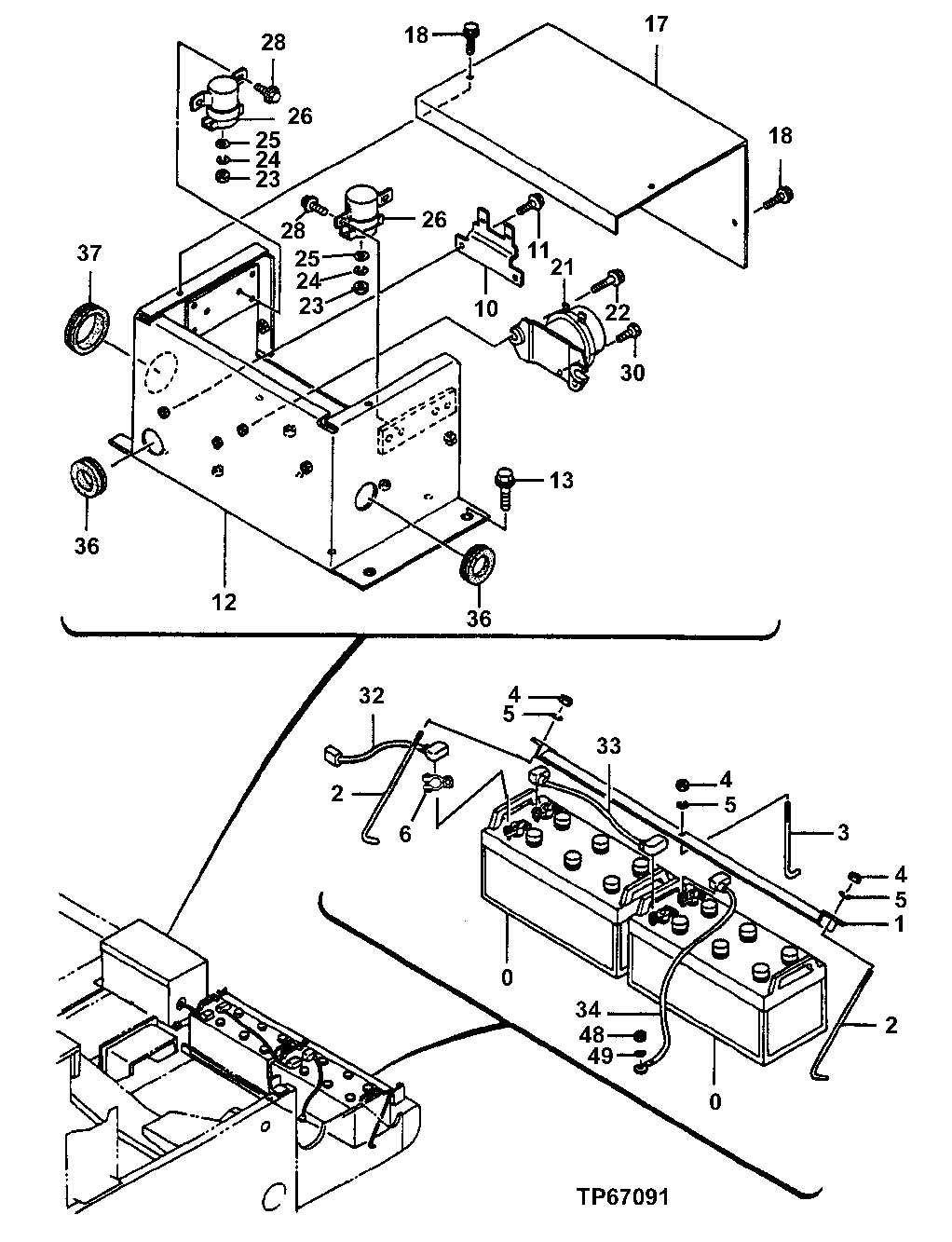

Запчасти John Deere 50LC 94 - Battery - Cables and Mounting 1674 Wiring Harness And Switches

0

TY23020

Dry Charged Battery

SUB FOR TY21709; AT182293 NLA

2шт.

1

8059085

Clamp

SUB FOR AT201910

1шт.

2

4286840

Bolt

SUB FOR AT201745

2шт.

3

4286841

Bolt

SUB FOR AT201746

1шт.

4

14M7273

Nut

M8

3шт.

5

Washer

12M7065 NLA

3шт.

6

AT219485

Clamp

BATTERY TERMINAL CLAMPS

4шт.

10

4297280

Bracket

SUB FOR AT201752

1шт.

11

19M8425

Cap Screw

M6 X 16

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

12

6014343

Box

SUB FOR AT201847

1шт.

13

19M8011

Cap Screw

M12 X 30

4шт.

12H301

Lock Washer

1/2"

4шт.

24M7047

Washer

13 X 24 X 2.500 mm

4шт.

17

3069863

Cover

SUB FOR AT201709

1шт.

18

19M7402

Cap Screw

M10 X 25

4шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

4шт.

24M7346

Washer

11 X 20 X 2 mm

4шт.

21

8943795431

Relay

SUB FOR 4255762 AND AT154229 Battery

1шт.

22

19M7407

Cap Screw

M8 X 25

2шт.

Washer

12M7065 NLA

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

23

14M7272

Nut

M6

4шт.

24

12M7006

Lock Washer

6 mm

4шт.

25

24M7054

Washer

6.400 X 12 X 1.600 mm

4шт.

26

AT145341

Relay

1 - STARTER RELAY, 1 - FUEL SHUT-OFF REL AY; ALSO ORDER (2) 14M7165 FOR EACH RELAY

2шт.

14M7165

Lock Nut

M6 Not Illustrated

2шт.

28

19M7923

Cap Screw

M6 X 12

4шт.

12M7006

Lock Washer

6 mm

4шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

4шт.

30

19M7881

Screw

M8 X 20

1шт.

32

4345359

Wiring Harness

SUB FOR AT202387

1шт.

33

4345360

Wiring Harness

SUB FOR AT202388

1шт.

34

4271826

Cable

SUB FOR AT201737

1шт.

36

H210728

Grommet

SUB FOR AT202389 OR 4211059

2шт.

37

4207839

Grommet

SUB FOR AT131849

1шт.

48

14M7274

Nut

M10

1шт.

49

12M7066

Lock Washer

10 mm

1шт.
