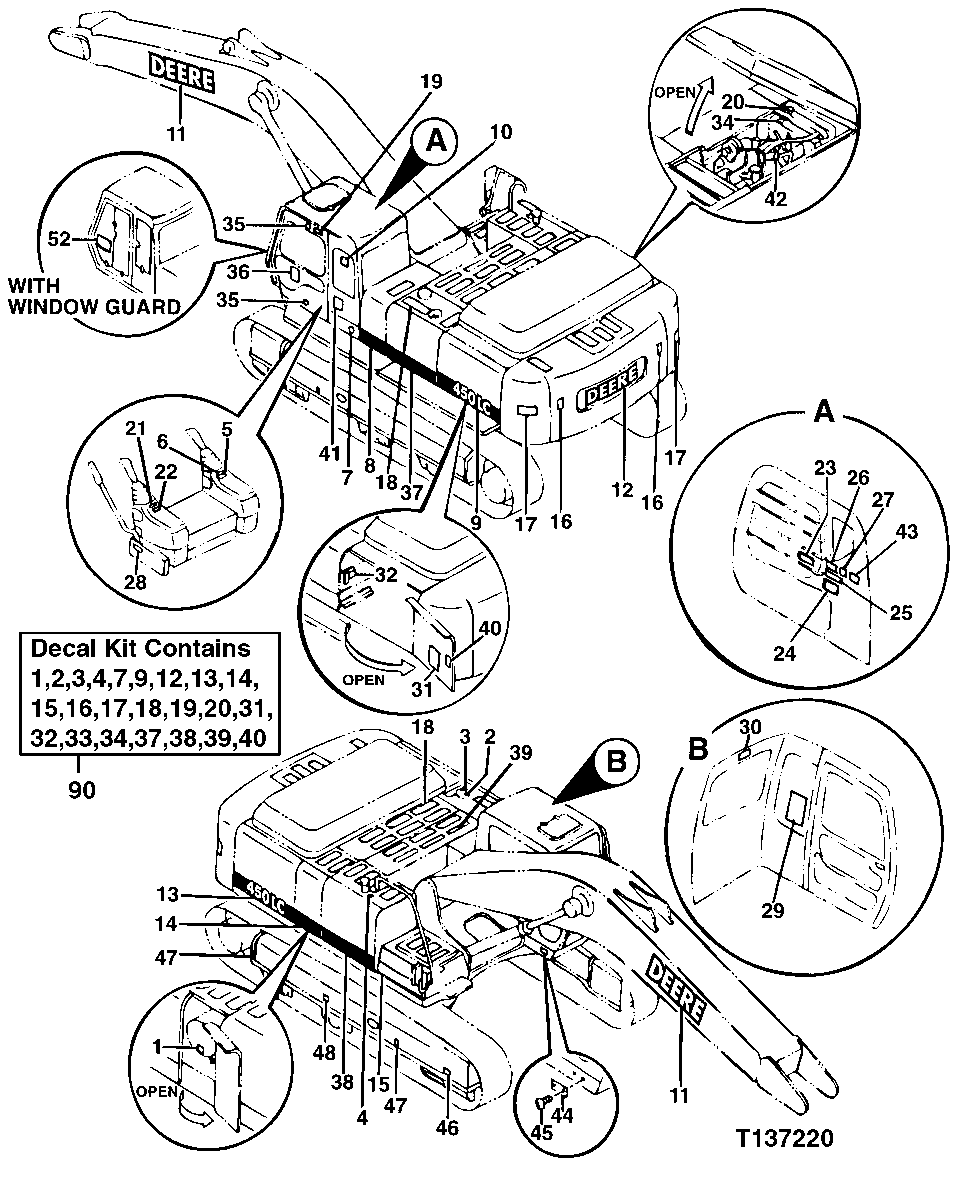

Запчасти John Deere 50LC 87 - Labels and Decals 1320 Vehicle Finish & Trim

1

R56902

Label

(K) Dry Air Cleaner

1шт.

2

P63448

Label

(K) Pump Bleed Informa tion (SUB FOR AT155733)

1шт.

3

T101942

Label

(K) Hydraulic Oil

1шт.

4

T79632

Label

(K) Diesel Only

1шт.

5

4264805

Label

(SUB FOR AT155730) Ignition Key Switch

1шт.

6

T159842

Label

Right Control Lever - SAE Pattern White Background

1шт.

T159843

Label

Right Control Lever - John De ere Pattern Yellow Background

1шт.

7

T161229

Label

(K) Stripe - Left Side

1шт.

8

T161225

Label

(STRIPE MIDDLE LEFT SIDE) (SUB FOR T161228)

1шт.

9

T161089

Label

(K) (450LC LEFT SIDE)

1шт.

10

T160538

Label

(TRANSPARENT LEAPING DEER)

2шт.

11

T161085

Label

(DEERE - ON BOOM)

2шт.

12

T161084

Label

(K) (DEERE - ON COUNTERWEIGHT)

1шт.

13

T161087

Label

(K) (450LC RIGHT SIDE)

1шт.

14

T161225

Label

(K) (STRIPE - RIGHT SIDE-AIR CLEAN)

2шт.

15

T161086

Label

(K) (STRIPE - TOOL BOX - RIGHT SIDE)

1шт.

16

T161266

Reflector

(K) (RED REFLECTOR TAPE)

2шт.

17

T248455

Label

(K) (SUB FOR T147008, 2035960 OR 2035960R) (WARNING - STAY CLEAR)

2шт.

18

H21259

Mat

(K)

24шт.

19

T119535

Label

(K) Bumper

1шт.

20

T146671

Safety Sign

(K) Radiator Cap

1шт.

21

T159841

Label

Left Control Lever - SAE Pattern White Background

1шт.

T159844

Label

Left Control Lever - John De ere Pattern Yellow Background

1шт.

22

4288971

Label

(SUB FOR AT155729) Eth er Aid / Motion Cancel

1шт.

23

T161236

Label

English (OPERATIONAL - START STOP)

1шт.

T163624

Label

Spanish (OPERATIONAL - START STOP)

1шт.

T162769

Label

French (OPERATIONAL - START STOP)

1шт.

24

T159887

Safety Sign

English Caution

1шт.

T162754

Label

Spanish Caution

1шт.

T162774

Label

French Caution

1шт.

25

T146668

Safety Sign

Warning - Avoid Crushing

1шт.

26

T146667

Safety Sign

Danger - Electrocution

1шт.

27

T190393

Label

(SUB FOR T157809) Important - Break Window For Secondary Exit

1шт.

28

4299059

Label

(SUB FOR T138886) Hydraulic Lockout

1шт.

29

T161237

Label

English Lift Capacity

1шт.

T162753

Label

Spanish Lift Capacity

1шт.

T162773

Label

French Lift Capacity

1шт.

30

T146664

Safety Sign

(CAUTION WINDOW LOCK - INSIDE CAB)

1шт.

31

T162317

Label

(K) English Periodic Maintenance

1шт.

T163616

Label

Spanish Periodic Maintenance

1шт.

T163602

Label

French Periodic Maintenance

1шт.

32

T149983

Label

(K) Important - Oil Level I nside Right Pump Compartment

1шт.

33

T146102

Label

(K) (SUB FOR T146103) Bypass Start

1шт.

34

T152657

Safety Sign

(K) Important - Radiator

1шт.

35

AT215194

Plate

Door Stopper

2шт.

36

Plate

Lifting

1шт.

37

T161227

Label

(K) (LEFT SIDE HYDRAULIC TANK)

1шт.

38

T161224

Label

(K) (STRIPE - RIGHT SIDE BY FUEL TANK)

1шт.

39

H21259

Mat

(K) (SUB FOR TH110224)

3шт.

40

T152593

Label

(K) Counterweight Removal

1шт.

41

Plate

Tipping Prevention

1шт.

42

Plate

Caution For Engine Oil Fill

1шт.

43

4266386

Label

Side Frame Work Position (SUB FOR T116735)

1шт.

44

Plate

Machine Manufacturing Number

1шт.

45

37H131

Screw

0.140" X 3/8"

2шт.

46

Plate

An Arrow

1шт.

47

Label

Chain ( AT121960 NLA)

4шт.

48

Label

( AT122056 NLA)

1шт.

52

T161729

Label

(VANDAL PROTECTION COVER LOCATIONS)

1шт.

90

Label Kit

Includes All Parts Marked (K) ( REPAINT) (NLA) (SUB COMPONENTS)

1шт.
