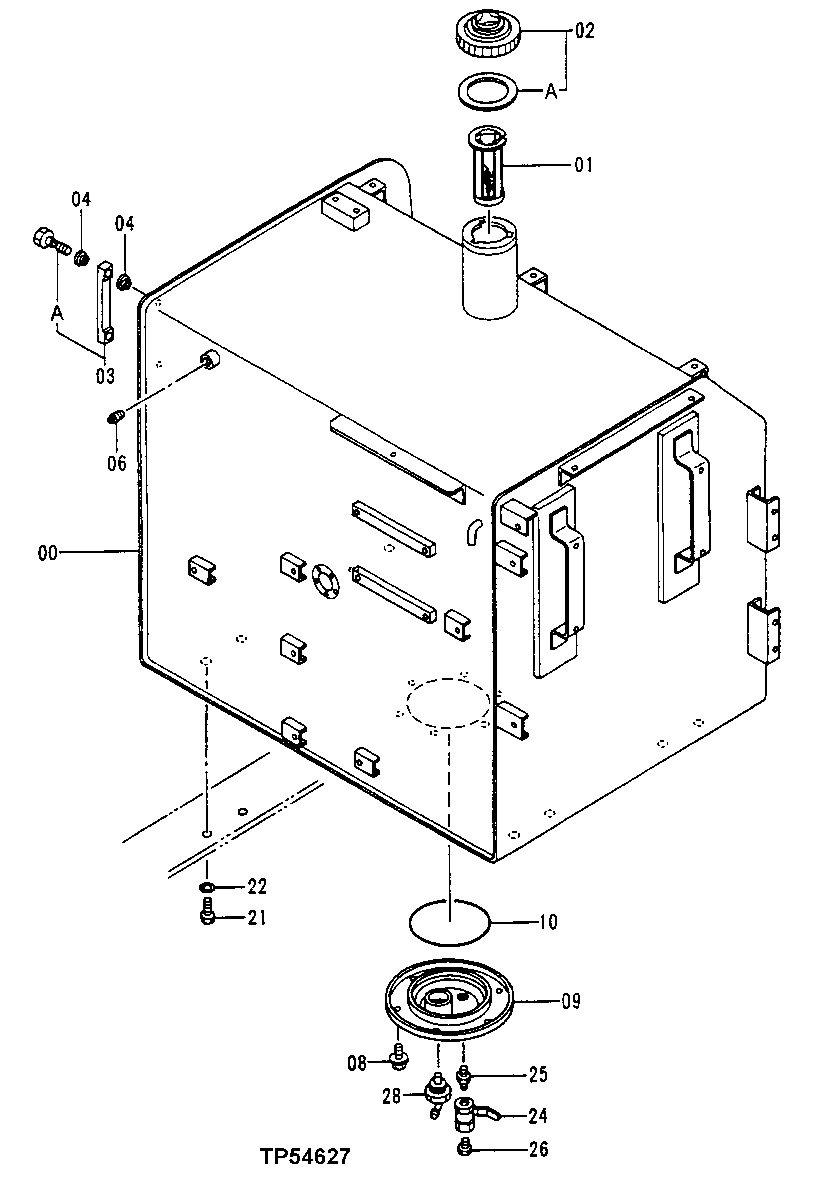

Запчасти John Deere 50LC 86 - Fuel Tank 0560 External Fuel Supply Systems

0

5005276

Fuel Tank

SUB FOR AT217002

1шт.

1

4121496

Fuel Filter

SUB FOR TH100509

1шт.

2

4361638

Cap

KEY LOCKABLE, ORDER KEY SEPARATELY

1шт.

AT194969

Key

SUB FOR AT147803, H800 Not Illustrated

1шт.

AT323462

Filler Cap

SUB FOR AT175989 OR 4361638, CAN BE LO CKED WITH PADLOCK, PADLOCK NOT INCLUDED

1шт.

2A

4168820

Packing

SUB FOR TH103384

1шт.

3

8033923

Level Gauge

ALSO ORDER (4) TH100675, SUB FOR TH108250

1шт.

3A

4100967

Bolt

SUB FOR TH101894

2шт.

4

449558

Washer

SUB FOR TH100675

4шт.

6

94-2024

Fitting Plug

SUB FOR TH101292

1шт.

8

19M7938

Cap Screw

M10 X 20

6шт.

12M7066

Lock Washer

10 mm

6шт.

9

8067496

Cover

SUB FOR AT177828

1шт.

10

TH100679

O-Ring

159.300 X 5.700 mm (6.272" X 0.224")

1шт.

21

19M7488

Cap Screw

M16 X 40

8шт.

22

4114405

Washer

17 X 32 X 4.500 mm (0.669" X 1. 260" X 0.177") SUB FOR TH101105

8шт.

24

4209782

Hand Operated Valve

SUB FOR AT128432

1шт.

25

94-1702

Adapter Fitting

SUB FOR TH102949

1шт.

26

R30298

Pipe Plug

1шт.

28

9726772

Fitting

SUB FOR TH108251

1шт.
