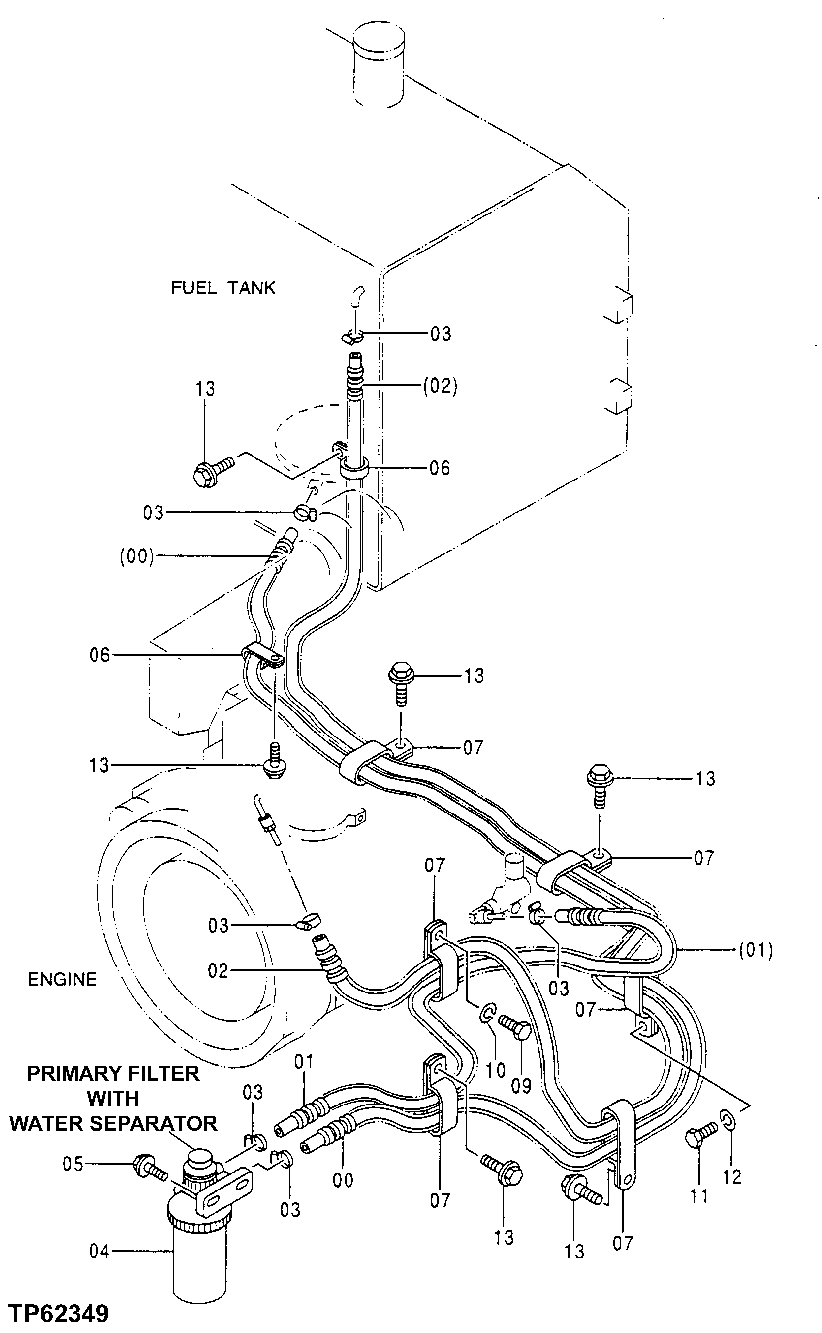

Запчасти John Deere 50LC 84 - Fuel Tank To Water Separator Fuel Hoses 0560 External Fuel Supply Systems

0

Bulk Hose

Furnish ( AT217095 NLA) ( TY22 561 CTL) Furnish Bulk Material

1шт.

1

Bulk Hose

Furnish ( AT217098 NLA) ( TY22 561 CTL) Furnish Bulk Material

1шт.

2

Bulk Hose

Furnish ( AT217097 NLA) ( TY22 561 CTL) Furnish Bulk Material

1шт.

3

TY22464

Clamp

(SUB FOR AR21836)

6шт.

4

Separator

(SEE SEPARATE PAGE FOR DETAIL)

1шт.

5

19M7550

Cap Screw

M10 X 35

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

6

R72659

Clamp

(SUB FOR AT122384 OR 4235654)

2шт.

7

R50454

Clamp

(SUB FOR TH109445 OR 4192034)

6шт.

9

19H1648

Cap Screw

3/8" X 3/4"

1шт.

10

12H293

Lock Washer

7/16"

1шт.

11

19M8324

Cap Screw

M10 X 16

1шт.

12

12M7066

Lock Washer

10 mm

1шт.

13

19M8761

Screw

M10 X 22

6шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

6шт.
