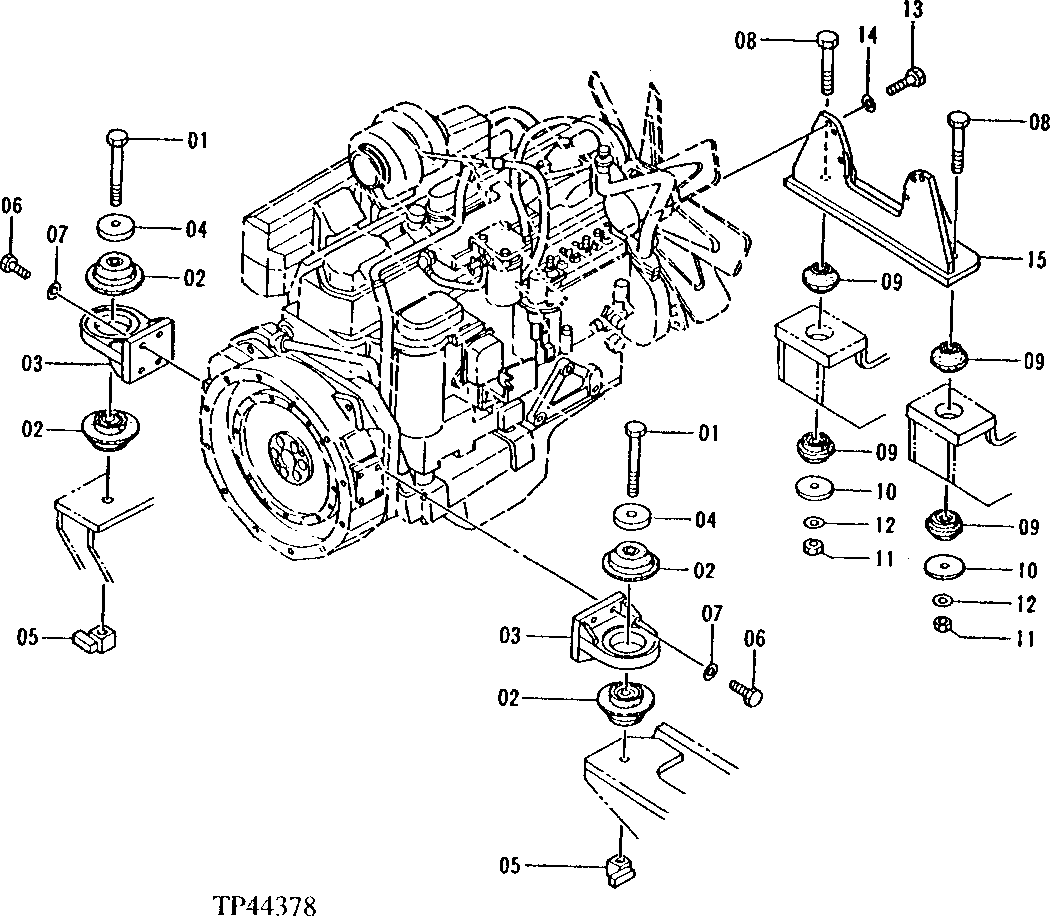

Запчасти John Deere 50LC 83 - Engine Mounting 0540 Engine Mounting

1

J932215

Bolt

M22 X 200 (SUB FOR AT131550)

2шт.

2

4183995

Cushion

(SUB FOR AT131720)

4шт.

3

8045941

Bracket

(SUB FOR AT132114)

2шт.

4

4247426

Bushing

(SUB FOR AT132006)

2шт.

5

9742550

Nut

(SUB FOR AT201952)

2шт.

6

19H2588

Cap Screw

5/8" X 1-7/8"

8шт.

7

4114405

Washer

17 X 32 X 4.500 mm (0.669" X 1.2 60" X 0.177") (SUB FOR TH101105)

8шт.

8

19M7954

Cap Screw

M16 X 150

2шт.

9

4245453

Isolator

(SUB FOR AT131999)

4шт.

10

4236515

Bushing

18 X 100 X 12 mm (0.709" X 3-15/ 16" X 0.472") (SUB FOR AT131959)

2шт.

11

14M7276

Nut

M16

2шт.

12

4114405

Washer

17 X 32 X 4.500 mm (0.669" X 1.2 60" X 0.177") (SUB FOR TH101105)

2шт.

13

19H2473

Cap Screw

1/2" X 1-3/4"

4шт.

14

4086891

Washer

13 X 26 X 3.200 mm (0.512" X 1.0 24" X 0.126") (SUB FOR TH104166)

4шт.

15

8069344

Bracket

(SUB FOR AT217167)

1шт.
