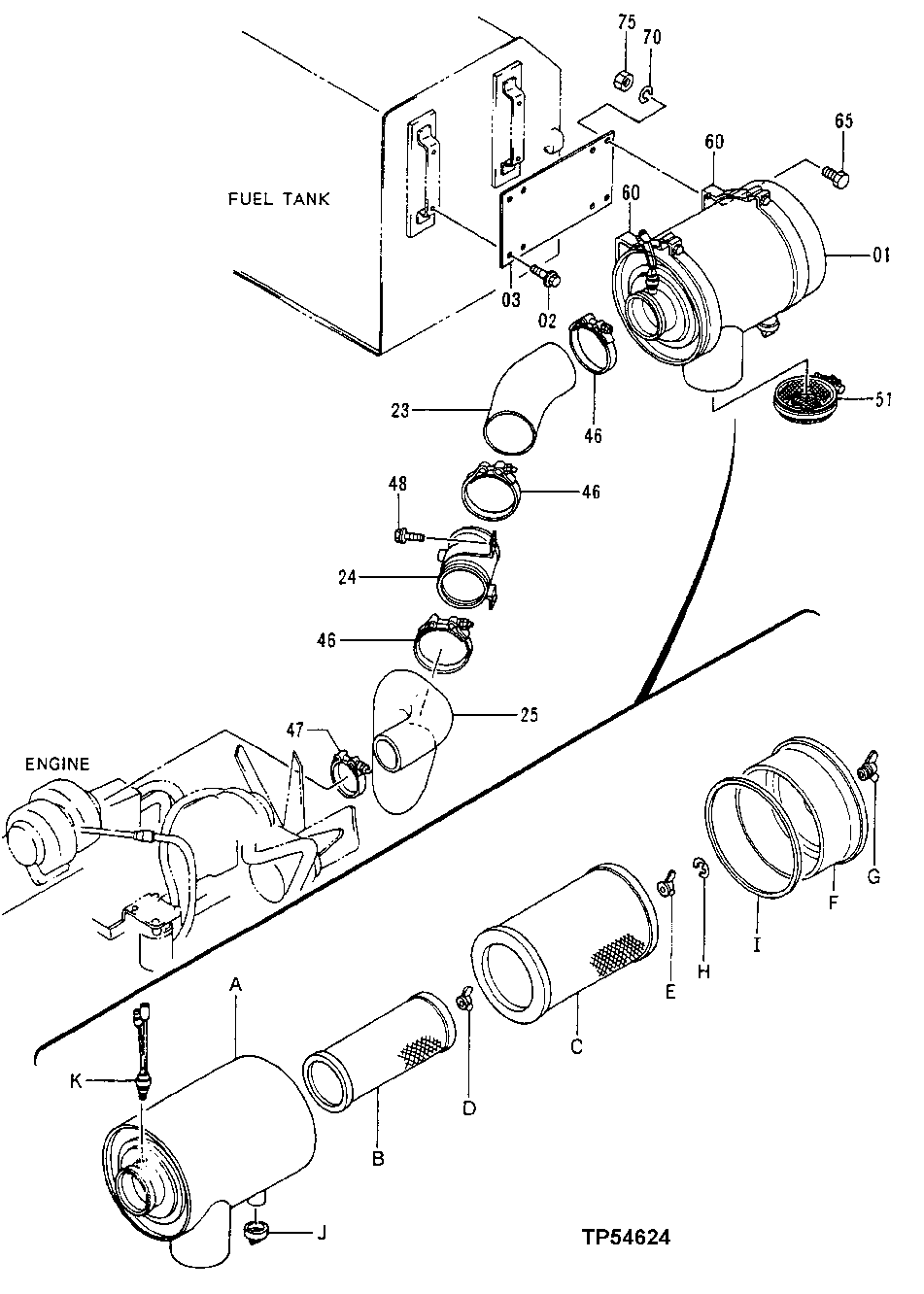

Запчасти John Deere 50LC 81 - Air Cleaner 0520 Intake System

1

4220786

Air Cleaner

(SUB FOR AT179377)

1шт.

1A

Housing

(NLA)

1шт.

1B

AT179370

Filter Element

Inner

1шт.

1C

AT179371

Filter Element

Outer

1шт.

1D

4337642

Nut

(SUB FOR AH20849, THIS APPL ICATION) (SUB FOR AT166137)

1шт.

1E

4257360

Nut

(SUB FOR AT200998)

1шт.

1F

4257361

Cover

(SUB FOR AT217086)

1шт.

1G

AR73234

Wing Nut

11.125 mm (7/16") (SUB FOR AR73234, THIS APPLICATION)

1шт.

1H

P46402

Snap Ring

1шт.

1I

4257362

Gasket

(SUB FOR AT200999)

1шт.

1J

4152863

Flow Control Hyd. Valve

(SUB FOR TH111700)

1шт.

1K

4224238

Indicator

(SUB FOR AT131922)

1шт.

2

19M7402

Cap Screw

M10 X 25

4шт.

12M7066

Lock Washer

10 mm

4шт.

3

4386878

Plate

(SUB FOR AT217136)

1шт.

23

4377218

Hose

(SUB FOR AT178201) Air

1шт.

24

8067486

Air Intake Stack

(SUB FOR AT178202) Air

1шт.

25

AT178203

Hose

Air

1шт.

46

AT53440

Clamp

(SUB FOR AT53438, THIS APPLICATION)

3шт.

47

AT56657

Hose Clamp

(SUB FOR RE19429, THIS APPLICATION)

1шт.

48

19M8011

Cap Screw

M12 X 30

2шт.

24M7047

Washer

13 X 24 X 2.500 mm

2шт.

12H301

Lock Washer

1/2"

2шт.

51

4330083

Screen

(SUB FOR AT202329)

1шт.

60

4221470

Clamp

(SUB FOR AT178200)

2шт.

65

19M7402

Cap Screw

M10 X 25

4шт.

70

12M7066

Lock Washer

10 mm

4шт.

75

14M7274

Nut

M10

4шт.
