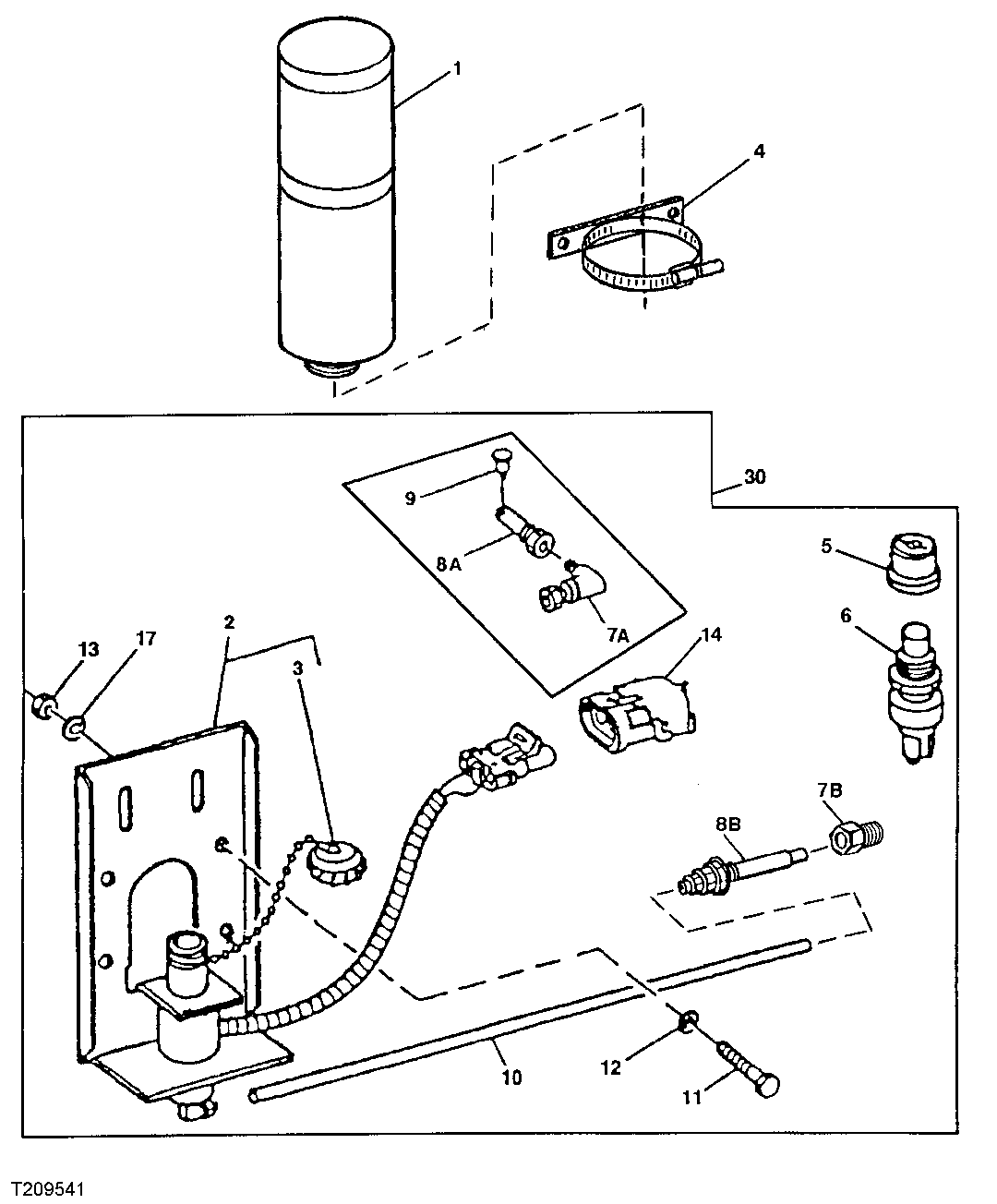

Запчасти John Deere 50LC 71 - Cold Weather Starting Aid 0505 Cold Weather Starting Aids

1

AT42005

Starting Fluid

1шт.

2

AT170759

Solenoid

1шт.

3

AT171539

Cap

1шт.

4

AT42003

Clamp

1шт.

5

Cap

(NLA)

1шт.

6

4384759

Switch

(SUB FOR AT178893)

1шт.

7A

RE21790

Elbow Fitting

1/8 in.-27 NPT, (SUB FOR AT1832 22, AND T164133THIS APPLICATION)

1шт.

7B

T164133

Adapter Fitting

3/8 in.-18NPT X M10X1.0

1шт.

15H666

Pipe Plug

3/8" (NOT SHOWN)

ARшт.

8A

R47160

Nozzle Holder

3/8 in. -18NPT X 1/8"-27NPT, (SUB FOR AT183222, AND T164133THIS APPLICATION)

1шт.

15H666

Pipe Plug

3/8" (NOT SHOWN)

ARшт.

8B

AT183222

Nozzle

M10 X 1.0

1шт.

O-Ring

1шт.

9

T155858

Nozzle

(USE WITH R47160) (SUB FOR R28583)

1шт.

10

Tube

(MF T78593CTL) ( DT5069 NLA) Bulk Material

1шт.

11

19M7407

Cap Screw

M8 X 25

4шт.

12

12M7056

Lock Washer

8 mm

4шт.

13

14M7273

Nut

M8

4шт.

14

Connector

( AL2976T NLA)

1шт.

17

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

18

R44302

Tie Band

(NOT SHOWN)

ARшт.

30

Field Installation Kit

(WHOLEGOODS) (ETHER) ( AT178845 NLA)

1шт.
