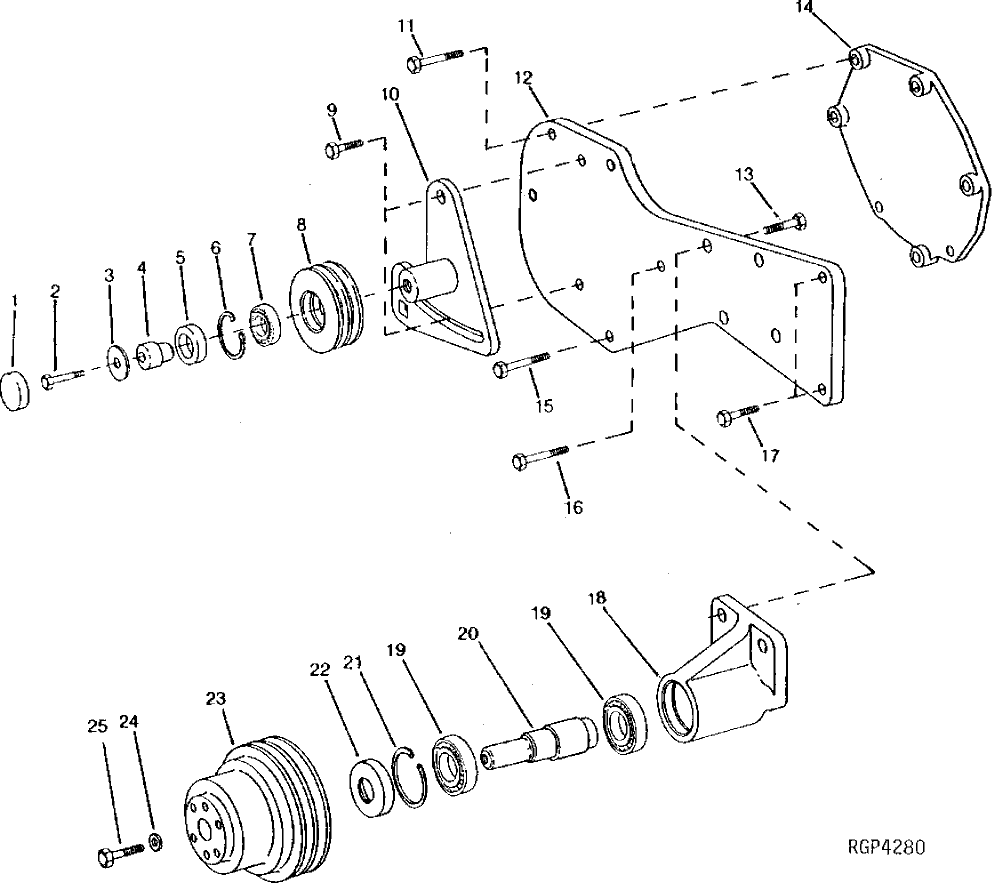

Запчасти John Deere 50LC 65 - Fan Support Plate and idler Pulley 0429 Fan Drive - Damper, Idler, Pulleys, & Belt 6101AT010 6101AT010

1

R66077

Plug

1шт.

2

19H2678

Cap Screw

7/16" X 2-1/8"

1шт.

3

24H1330

Washer

15/32" X 1-3/8" X 7/64"

1шт.

4

R70377

Hub

1шт.

5

AR92593

Seal

1шт.

6

R55408

Wear Ring

1шт.

7

JD8670

Ball Bearing

1шт.

8

T105390

Idler

1шт.

9

19H1792

Cap Screw

1/2" X 1"

2шт.

10

RE46233

Bracket

1шт.

11

19H3175

Cap Screw

3/8" X 3-5/8"

3шт.

12

R108877

Plate

1шт.

13

19H1815

Cap Screw

1/2" X 1-1/4"

4шт.

14

R108856

Cover

1шт.

15

19H3217

Cap Screw

3/8" X 1-3/4"

1шт.

16

19H3483

Cap Screw

3/8" X 1-1/8"

1шт.

17

19H3175

Cap Screw

3/8" X 3-5/8"

2шт.

18

R86131

Housing

(NLA) (ORDER RE509329)

1шт.

R505473

Housing

(NSEP) (SUB RE509329)

1шт.

19

JD10329

Ball Bearing

2шт.

20

R63987

Shaft

1шт.

21

R62191

Snap Ring

1.7 mm (.067 in.), Red

ARшт.

R62192

Snap Ring

1.9 mm (.077 in.), Green

ARшт.

R62193

Snap Ring

2.2 mm (.087 in.), Blue

ARшт.

R62194

Snap Ring

2.5 mm (.097 in., White

ARшт.

22

RE20768

Seal

1шт.

23

R108857

Pulley

1шт.

24

T20217

Washer

1шт.

25

R79850

Cap Screw

1шт.

RE509329

Housing

(INCLUDES R505473, 19H1721, 19H1815, (2) JD10329, R63987, R62191, R62192, R62193, R 62194, RE20768, T20217, R116466 AND R79850 )

1шт.

R116466

Plug

1шт.
