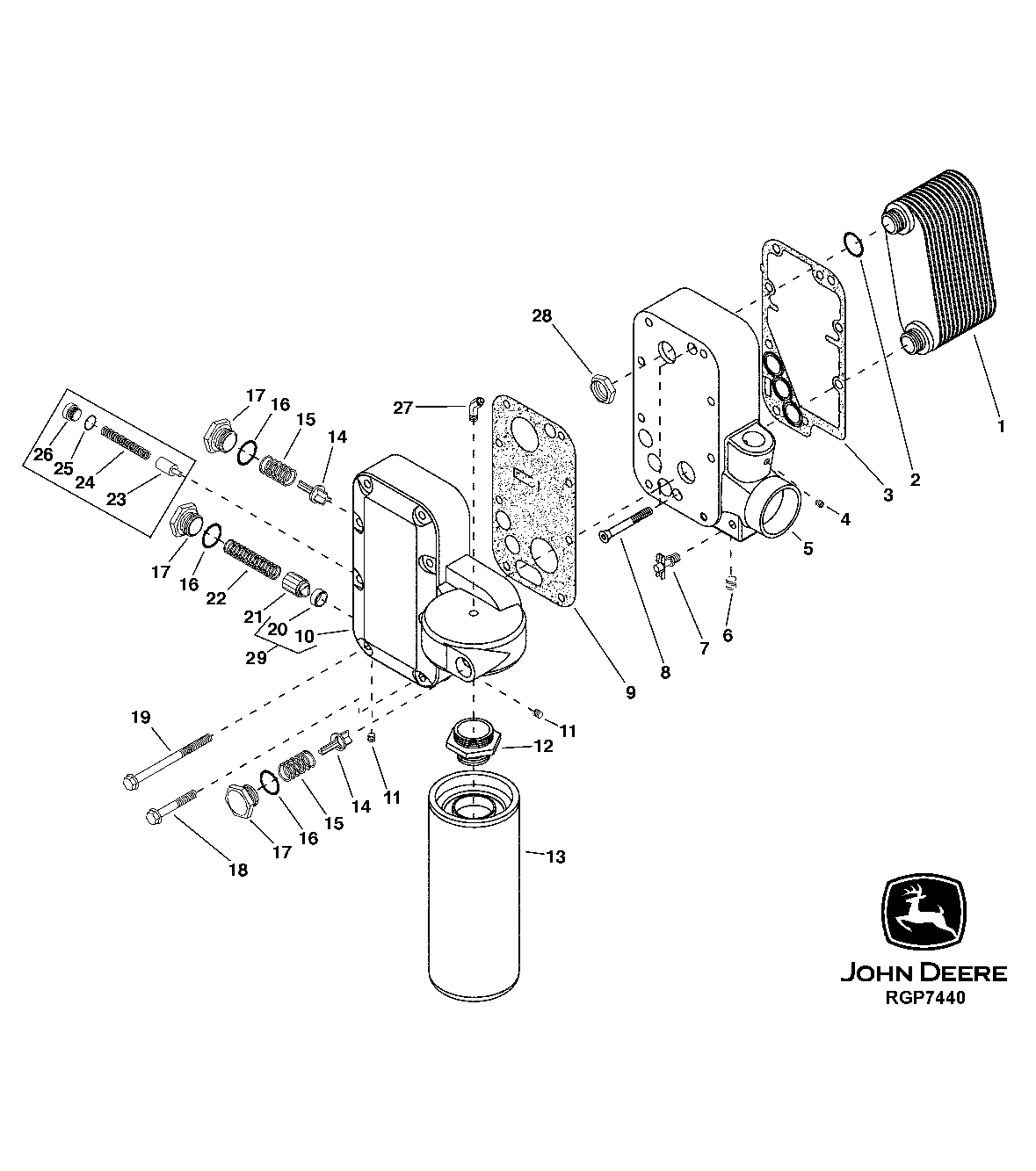

Запчасти John Deere 50CLC 53 - 5904 OIL COOLER 0400 Engine 6125HT001-RG29624 6125HT001

1

RE500657

Oil Cooler

1шт.

2

R134716

O-Ring

2шт.

3

R500209

Gasket

1шт.

4

RE71255

Pipe Plug

1шт.

5

R116854

Housing

1шт.

6

RE57836

Pipe Plug

12.700 mm (1/2") (SUB FOR 15H624)

1шт.

7

AT13740

Drain Valve

1шт.

8

19M8574

Screw

M10 X 85

2шт.

9

R500210

Gasket

1шт.

10

R503400

Housing

(SUB RE515304)

1шт.

R503714

Housing

1шт.

11

R55233

Pipe Plug

6.350 mm (1/4") (USE WITH RE515304)

3шт.

R55233

Pipe Plug

6.350 mm (1/4")

1шт.

AT145384

Switch

(OIL PRESSURE)

1шт.

15H639

Pipe Bushing

1/8"

1шт.

12

R127208

Adapter Fitting

1шт.

13

RE58935

Oil Filter

1шт.

14

R500055

Valve

BYPASS

2шт.

15

R98064

Spring

2шт.

16

U17409

O-Ring

26.594 X 2.946 mm (1-3/64" X 0.116")

3шт.

17

R500232

Fitting Plug

3шт.

18

19M7810

Screw

M10 X 80

1шт.

19

19M7958

Screw

M10 X 150

7шт.

20

Bushing

(SUB RE515304)

1шт.

U40750

Washer

ARшт.

21

R124186

Pressure Relief Valve

1шт.

22

R130717

Spring

1шт.

23

R63532

Valve

1шт.

24

T31636

Spring

1шт.

25

R26375

O-Ring

1шт.

26

R33138

Fitting

1шт.

27

R116203

Elbow Fitting

1шт.

28

R136500

Nut

2шт.

29

RE505883

Housing

(MARKED RE515304)

1шт.

RE515304

Housing

(MARKED RE503714)

1шт.

AT35831

Drain Valve

(7898)

1шт.

15H586

Adapter Fitting

3/8" (7898)

1шт.
