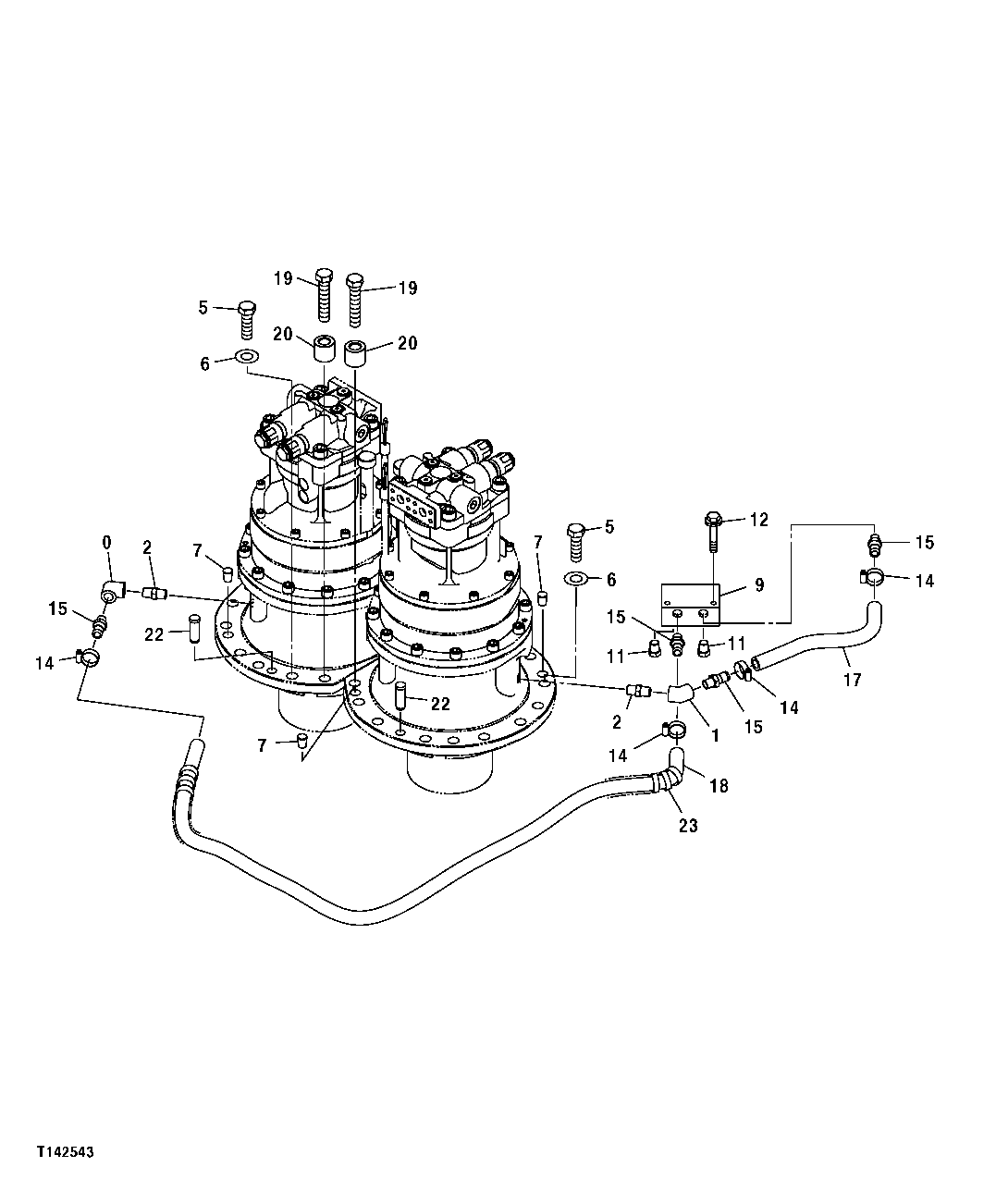

Запчасти John Deere 50CLC 322 - SWING GEARBOX MOUNTING HARDWARE AND DRAIN HOSES 4360 HYDRAULICS

0

94-0617

Elbow Fitting

(SUB FOR TH101975)

1шт.

1

94-0602

Elbow Fitting

(SUB FOR AT202375)

1шт.

2

94-1703

Adapter Fitting

(SUB FOR TH101976)

2шт.

5

T214405

Bolt

(SUB FOR TH101870, J932270)

22шт.

6

T56006

Washer

22шт.

7

99M7010

Plug

4шт.

9

4451677

Manifold

(SUB FOR TH4451677)

1шт.

11

U40979

Pipe Plug

2шт.

12

19M7742

Cap Screw

M10 X 65

2шт.

12M7066

Lock Washer

10 mm

2шт.

14

TY22467

Clamp

4шт.

15

4004589

Adapter Fitting

(SUB FOR AT202075)

4шт.

17

Bulk Hose

(CTL) (MAKE FROM TY22328)

1шт.

18

Bulk Hose

(CTL) (MAKE FROM TY22328)

1шт.

19

19M8806

Screw

M22 X 110

4шт.

20

4334138

Spacer

(SUB FOR AT202335)

4шт.

22

4343336

Dowel Pin

(SUB FOR AT202349)

4шт.

23

Line

(CTL) (MAKE FROM AT138222)

2шт.
