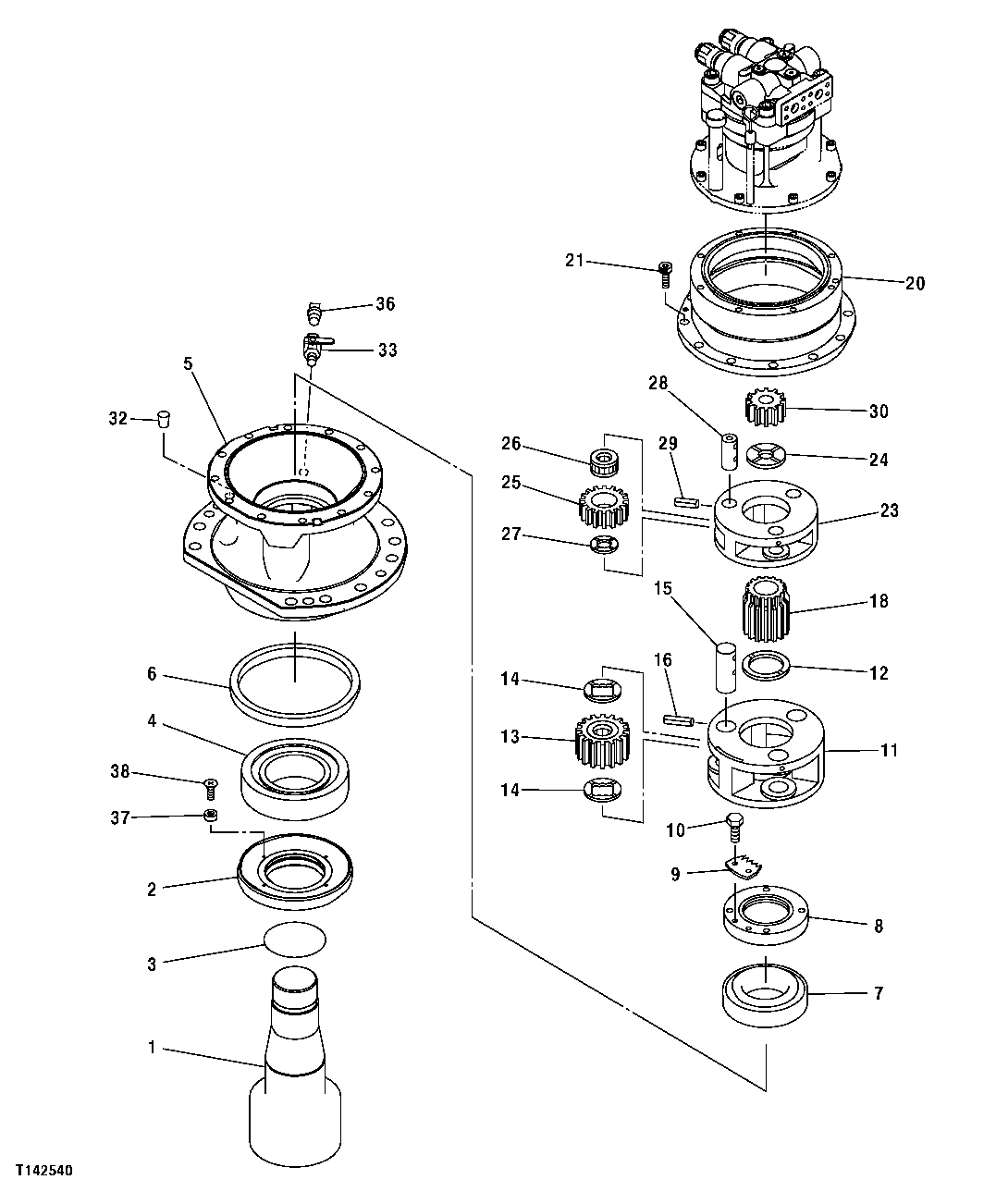

Запчасти John Deere 50CLC 321 - SWING GEAR BOX COMPONENTS 4360 HYDRAULICS

1

2043694

Shaft

SUB FOR TH2043694

1шт.

2

3085412

Sleeve

SUB FOR TH3085412

1шт.

3

AT264339

O-Ring

SUB FOR TH100122

1шт.

4

4402481

Cylindrical Roller Bearing

SUB FOR TH4402481

1шт.

5

1026994

Housing

SUB FOR TH1026994

1шт.

6

4604376

Seal

SUB FOR TH4422691 OR 4422691

1шт.

4604376

Seal

For Cold Weather Applications

1шт.

7

4667150

Bearing

SUB FOR TH4402637 OR 4402637

1шт.

8

3086064

Nut

SUB FOR TH3086064

1шт.

9

4474191

Plate

SUB FOR TH4411122, 4411122

1шт.

10

19M8324

Cap Screw

M10 X 16

2шт.

11

1036846

Planet Pinion Carrier

SUB FOR TH1026662 AND 10 26662, ALSO ORDER 3099830

1шт.

12

4642361

Plate

SUB FOR TH109479 OR 4187590

1шт.

13

9750364

Gear

SUB FOR TH9750364

3шт.

14

4336929

Wear Plate

SUB FOR AT218167

6шт.

15

4488904

Pin

SUB FOR 4336925 OR AT213868

3шт.

16

34M7225

Spring Pin

8 X 28 mm SUB FOR 34M6402

3шт.

18

3080912

Sun Gear

SUB FOR TH3080912

1шт.

20

1025957

Ring Gear

SUB FOR TH1025957

1шт.

21

19M8445

Screw

M16 X 45

12шт.

23

1025912

Planet Pinion Carrier

SUB FOR TH1025912

1шт.

24

4403371

Plate

SUB FOR TH4403371

1шт.

25

3082517

Gear

SUB FOR TH3082517

3шт.

26

4404506

Needle Bearing

SUB FOR AT213870

3шт.

27

4403082

Plate

SUB FOR TH4403082

3шт.

28

4336923

Pin

SUB FOR AT213867

3шт.

29

4051262

Spring Pin

SUB FOR AT213796

3шт.

30

3084056

Sun Gear

SUB FOR TH3084056

1шт.

32

99M7010

Plug

2шт.

33

4194712

Drain Valve

SUB FOR TH108278

1шт.

36

94-2024

Fitting Plug

SUB FOR TH101292

1шт.

37

4422479

Magnet

SUB FOR TH4422479

4шт.

38

M470513

Cap Screw

SUB FOR TH101156

4шт.
