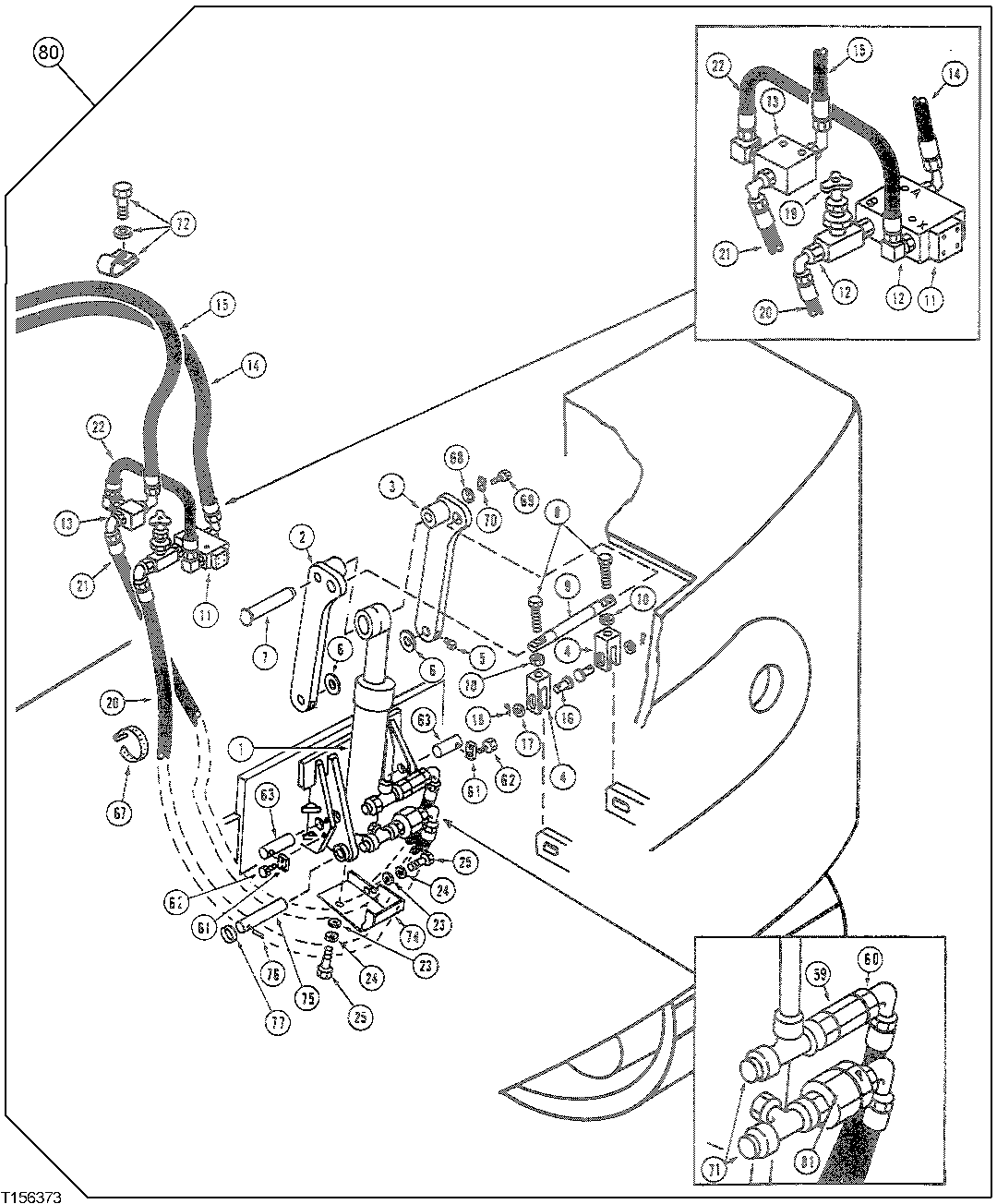

Запчасти John Deere 50CLC 319 - COUNTERWEIGHT REMOVAL KIT AND COMPONENTS (CONTINUED) 3365 HYDRAULIC CYLINDERS 33

25

4186695

Pin

Not Illustrated

1шт.

26

4226388

Tee Fitting

Not Illustrated (SUB FOR AT205878)

1шт.

M800650

Packing

Not Illustrated

1шт.

27

4257159

Bracket

Not Illustrated

1шт.

28

4456689

Wiring Harness

Not Illustrated (SUB FOR TH4456689)

1шт.

29

4190261

Clip

Not Illustrated (SUB FOR TH109649)

2шт.

59

3071216

Adapter Fitting

(SUB FOR AT170143)

1шт.

4131346

Spacer

(SUB FOR AT132491)

2шт.

60

T77857

O-Ring

1шт.

61

4274178

Elbow Fitting

(SUB FOR AT170146)

1шт.

4063340

Strap

(SUB FOR AT132480)

1шт.

T77857

O-Ring

1шт.

62

M341632

Bolt

(SUB FOR AT132460)

1шт.

4131346

Spacer

(SUB FOR AT132491)

1шт.

63

4337837

Pin

(SUB FOR AT170128)

2шт.

68

492067

Washer

(SUB FOR AT170134)

1шт.

69

19M8017

Cap Screw

M12 X 20

2шт.

70

442687

Strap

(SUB FOR TH103546)

1шт.

71

94-2024

Fitting Plug

(SUB FOR TH101292)

2шт.

72

12M7068

Lock Washer

14 mm

1шт.

74

8065783

Guard

1шт.

75

4337843

Pin

(SUB FOR AT170129)

1шт.

76

4186695

Pin

1шт.

77

TH101624

Kit

1шт.

79

Hose Guard

(CTL) (MAKE FROM XHG-0 75 ) (SUB FOR AT138222)

1шт.

80

AT196481

Kit

(WHOLE GOODS) Additional C omponents On Separate Pages

1шт.

81

4221984

Valve

(SUB FOR 4146466)

1шт.

4339469

Adapter Fitting

(SUB FOR AT170144)

1шт.
